User Manual of WDAP-C7210E_WDAP-W1200E_WDAP-850AC
-23-

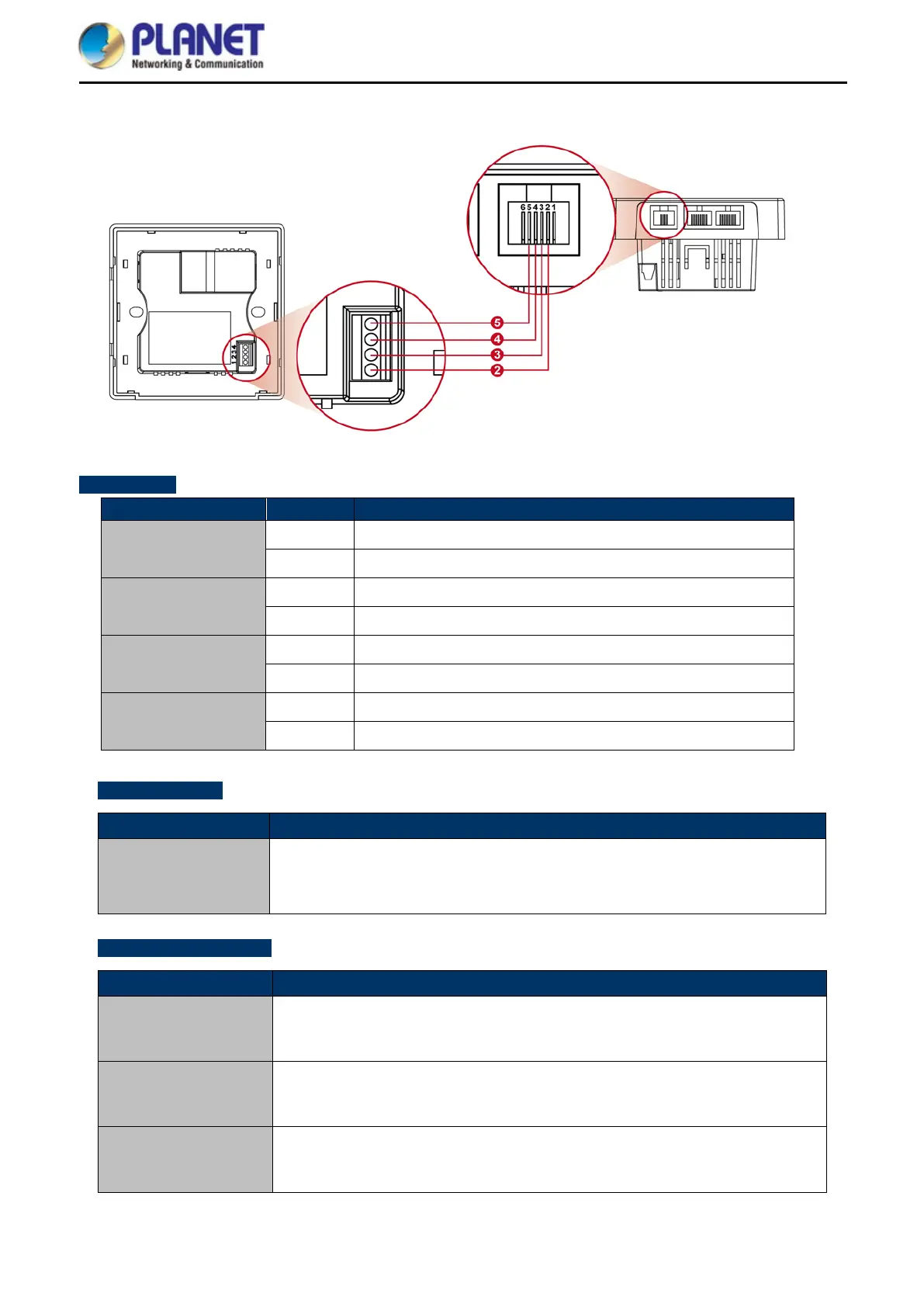

4-wire RJ11 Connection diagram
LED definition
LED STATE FUNCTION
SYS
On Power On
Off Power Off
WAN
On/Flash WAN connected / data transmitting
Off WAN disconnected
LAN 1
On/Flash LAN 1 connected / data transmitting
Off LAN 1 port disconnected
LAN 2
On/Flash LAN 2 connected / data transmitting
Off LAN 2 port disconnected
Button definition
Object Description
Reset
Press the Reset button for over 10 seconds and then release it to restore
system to the factory default settings.
H/W Interface definition
Object
Description
PoE Port
(802.3af/at PoE+)
10/100/1000Mbps RJ45 port, auto MDI/ MDI-X
Connect PoE port to the IEEE 802.3af/at PoE+ switch to power on the device.
LAN 1-2 Port
10/100/1000Mbps RJ-45 port, auto MDI/ MDI-X
Connect this port to the network equipment.
RJ11 Port
6P4C 4-wire standard
Connect this port to digital phone or traditional phone.
