Planmeca Proline CC panoramic x-ray H-1
Chapter
Technical Manual
H PARTS REPLACEMENT & REPAIR
1 COVERS
CAUTION The unit contains hazardous voltages. Always disconnect the unit from mains by remov-
ing the plug from the wall outlet, and wait for 2 minutes before starting to remove covers.
1.1 Tube head covers
Remove the front cover of the tube head by unscrewing the 4 fixing screws at the back side.
Remove the back cover of the tube head by unscrewing the 2 fixing screws that can be seen
after removing the front cover. (
Fig. 1, 1)
1.2 Secondary slot cover
Remove the secondary slot cover by unscrewing the 4 screws at the cassette head (Fig. 1, 2).
1.3 Cassette carriage back cover
Remove the secondary slot cover.
Remove the back cover of the cassette head by unscrewing the two fixing screws behind the
cover of the secondary slot. (
Fig. 1, 3)

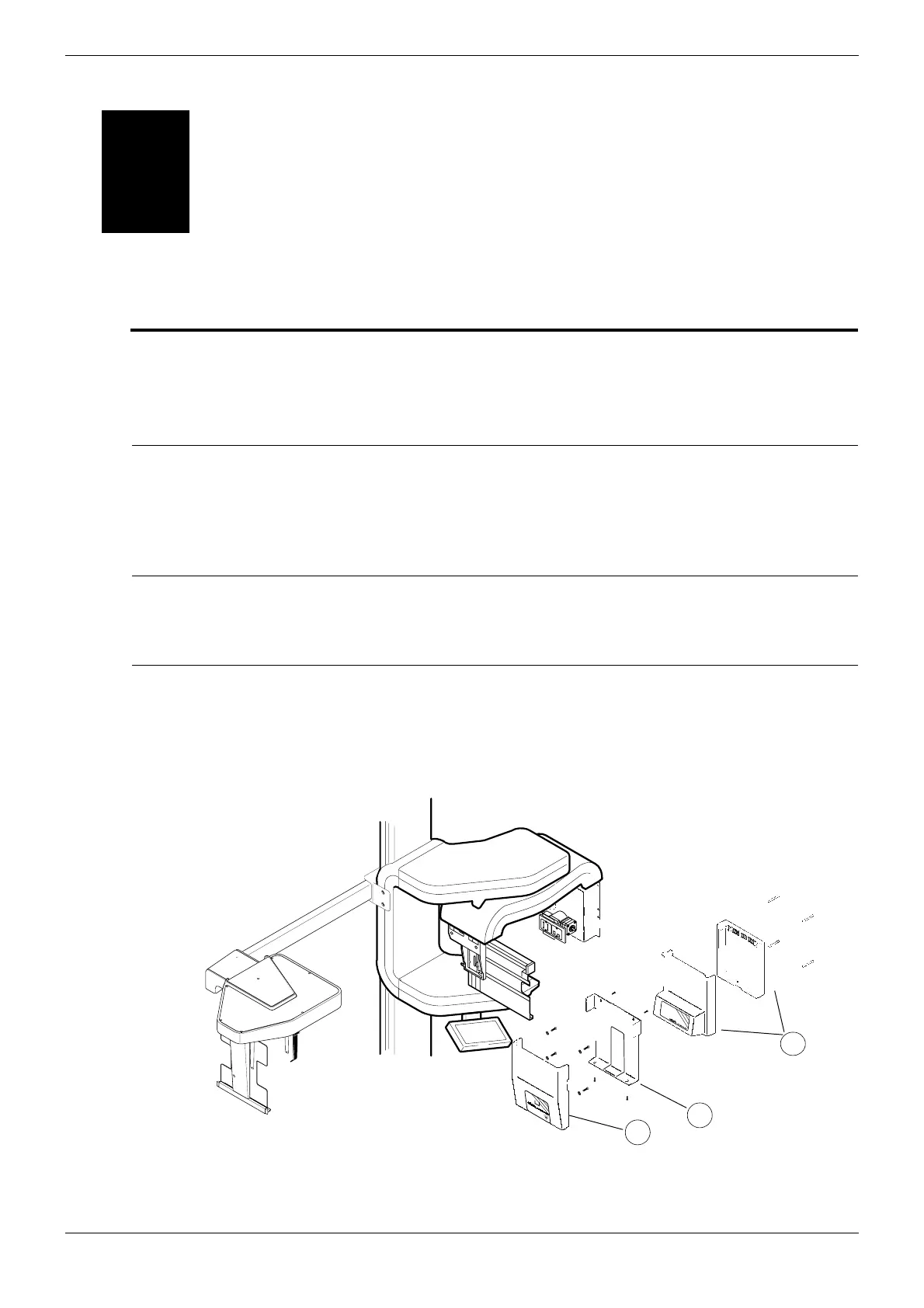

Figure 1
