Chapter B - KEYBOARD FUNCTIONS & MODES
B-10 Planmeca Proline CC panoramic x-ray
Technical Manual
The square anterior arch indicator is used to
indicate the cassette holder carriage start (pan
-
oramic) point limit sensor operation. When the
sensor is active (magnet on the sensor) this
light is on.
The narrow jaw width indicator is used to indi-
cate the cassette holder end (return) point limit
sensor operation. When the sensor is active
(magnet on the sensor) this light is on.
Dimax: The narrow jaw width indicator is used
to indicate the system configuration: when the
light is on the unit is equipped with sensor head.
When the light is flashing the PC is communi
-
cating.
The large jaw width indicator is used to indicate
the cassette holder carriage end (cephalomet
-
ric) point limit sensor operation. When the sen-
sor is active (magnet on the sensor) this light is
on. (Only in cephalostatic models).
The yellow exposure indicator light is on when-
ever the X - ray generator is on and produces
radiation.

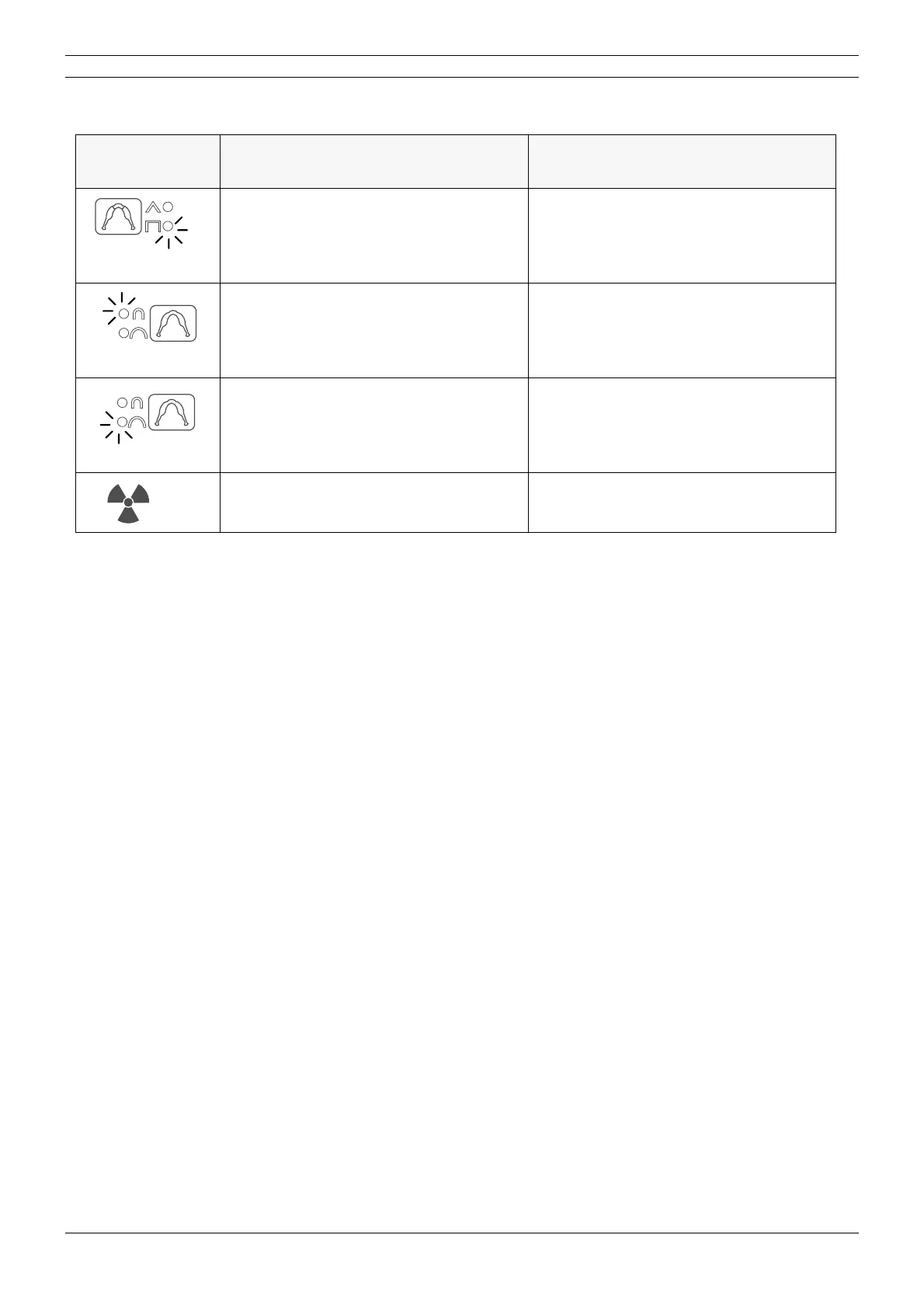

Table 3: Meaning of indicator lights in the service mode
INDICATOR
LIGHT
NORMAL FUNCTION
SPECIAL FUNTION (CTL key is
activated)
