Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline CC panoramic x-ray E-3
Technical Manual

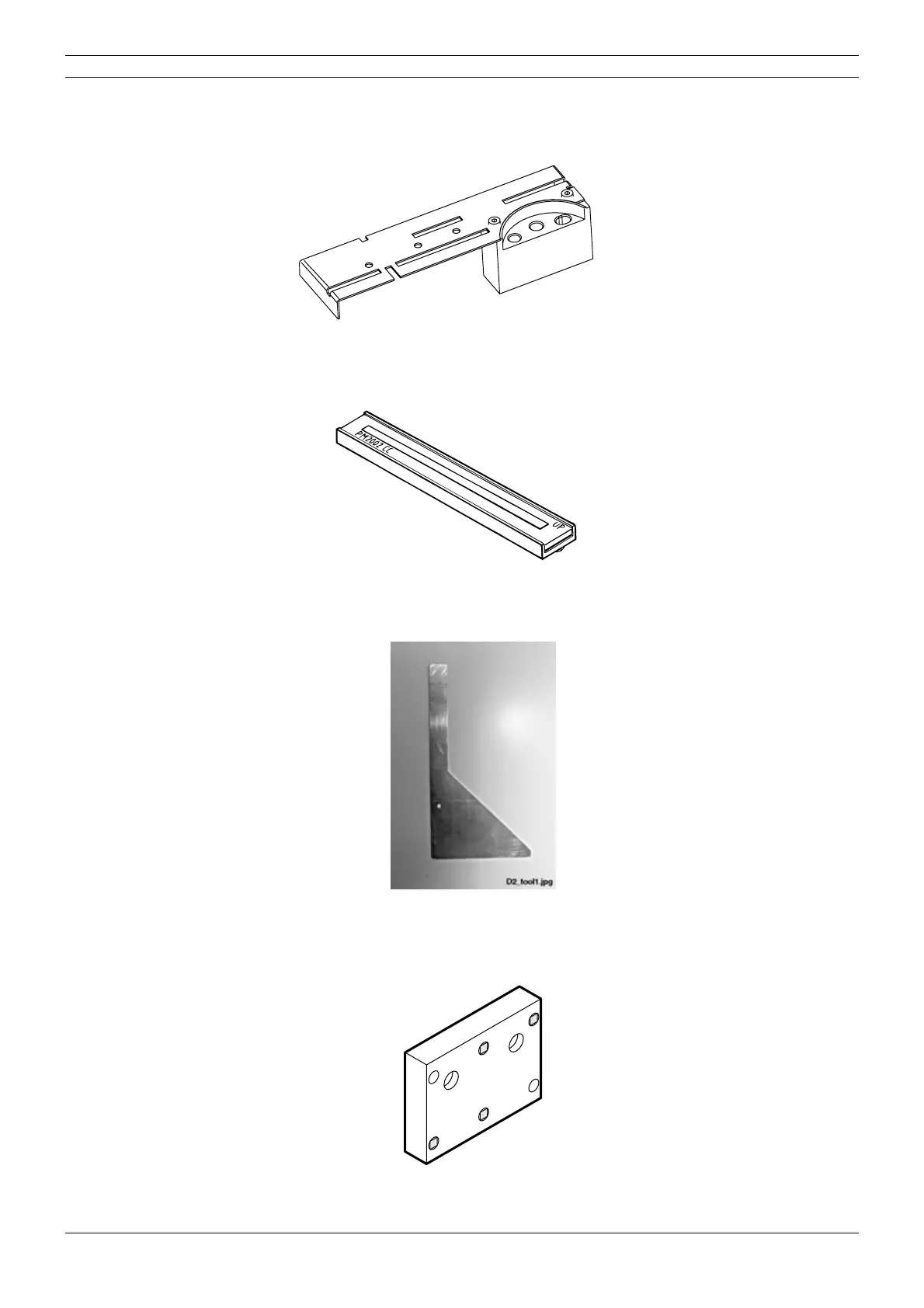

• Sensor alignment tool (part number 10002699). For attaching the beam alignment tool.
• Beam alignment tool (part number 50972). For checking the position of the x-ray beam.
• Cephalostat calibration tool (part number 10002935). For calibrating the cephalostat.
• Panoramic mode calibration block (part number 665413). For calibrating the panoramic sen-
sor head.
calibtool.eps
Sensor alignment tool
Beam alignment tool
