Measure from the center of the Center Ball to the center on the 10
th
Ball
o
n the right then measure from the center of the Center Ball to the center
of 10
th
Ball on the left.
NOTE: The distance from the Center Ball to the 10
th
Ball should be the same ±1.5mm.

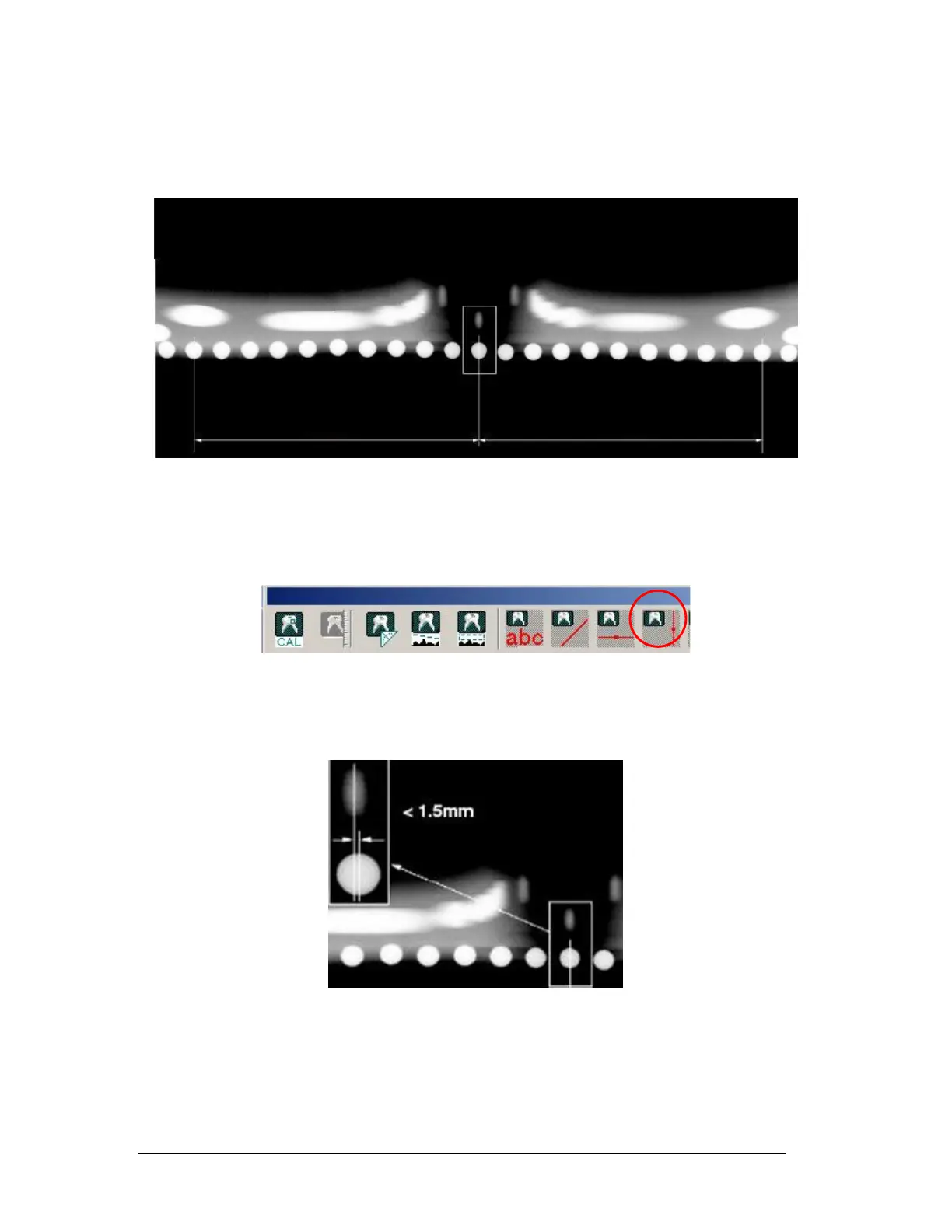

Now check the shadow ball by clicking the Vertical Line from point icon
from the measurement toolbar. (Figure 12)
Figure 12
Click the top of the shadow ball and measure the distance between the
shadow ball to the Center Ball. (Figure 13)
Figure 13
NOTE: If any of these distances are off then continue on with Chapter C-F. If the
m
easurements are within the tolerances then the ProOne is calibrated.
Printed copies of this document are considered uncontrolled.
7535.11.Rev001 08.07.2018
