Planmeca ProOne - Identification of X-ray Unit Components

13
Chapter
C Removing Covers
1 Upper Arm
Ta
ke the Upper Arm cover off by pulling straight up. (Figure 14)

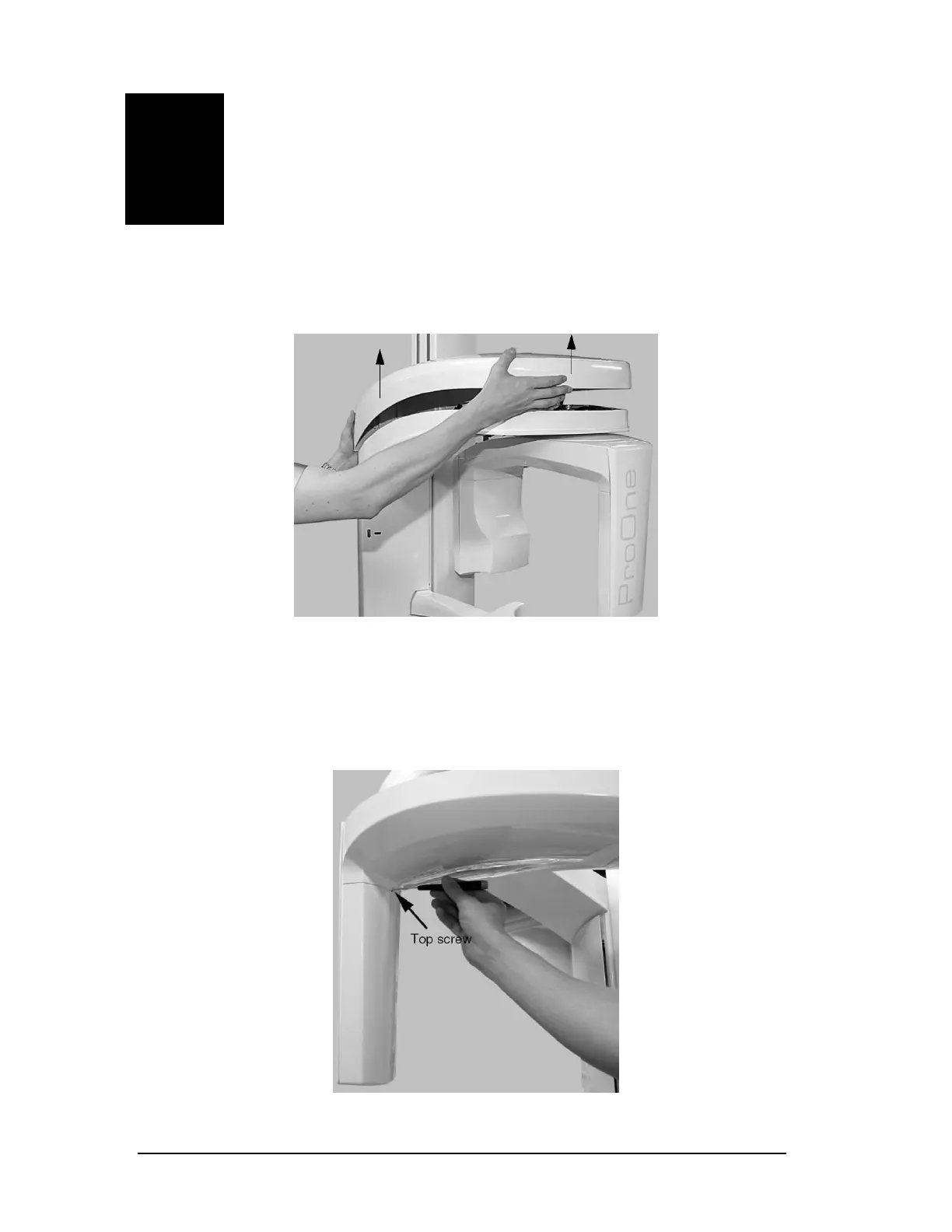

Figure 14
2 Sensor Head
L
oosen the 2.5mm allen screw on the top of the Sensor Head cover then pull the
cover off. (Figure 15)
Figure 15
