32
4.2 Midsagittal
To
uch the touch screen to turn the positioning lights on.

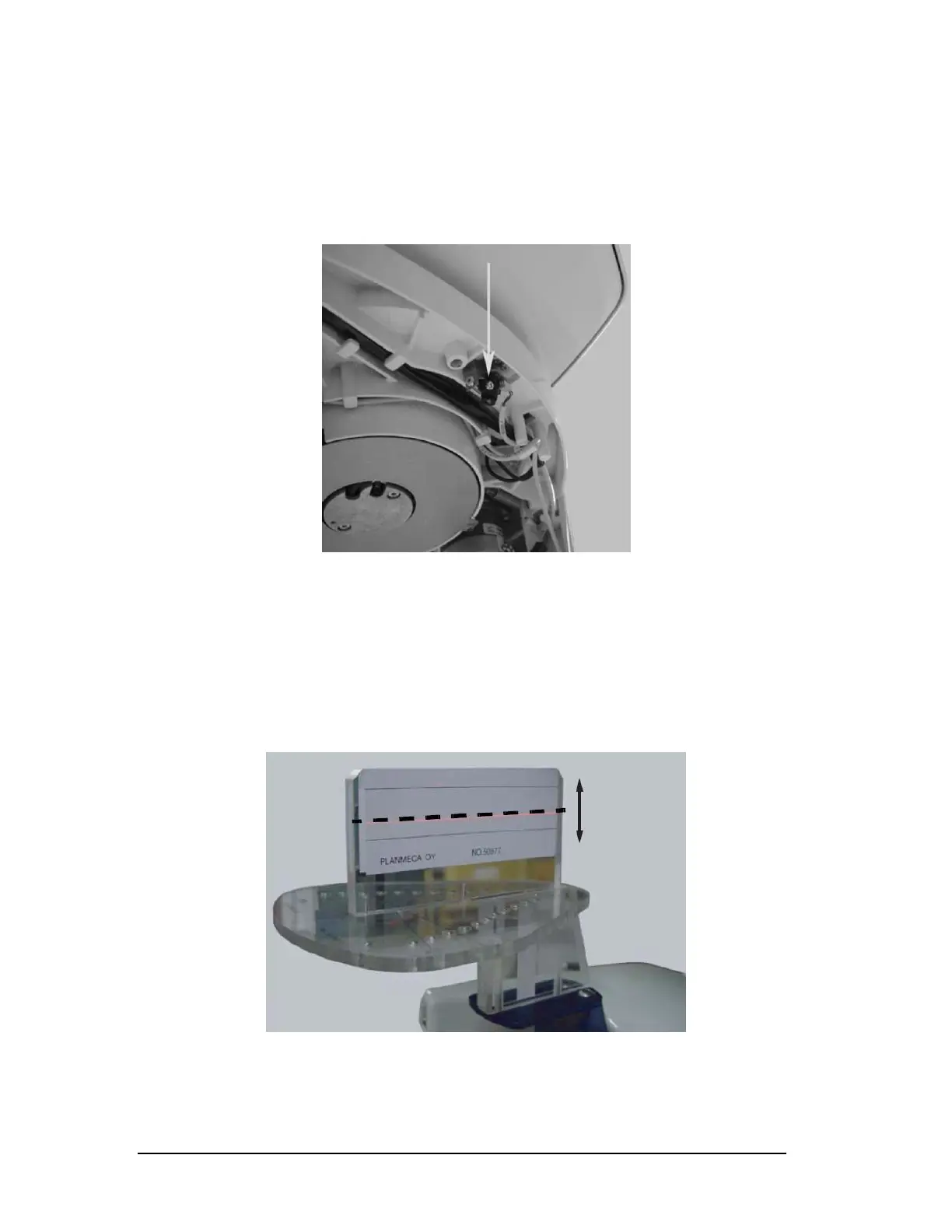

NOTE: The midsagittal light must line up with the y-line on the ball phantom
Carefully adjust the light with needle nose pliers until the light lines up.
(See Figure 48)
4.3 Frankfort
Pu
t the Frankfort plane alignment tool onto top of the ball phantom.
(Figure 50)
Figure 50
NOTE: The frankfort plane light must go from the front to back of the tool, range from
t
he top to the bottom, and be straight with the lines on the tool.
Printed copies of this document are considered uncontrolled.
7535.11.Rev001 08.07.2018
