2 REQUIRED TOOLS
2
.1. Calibration Tools

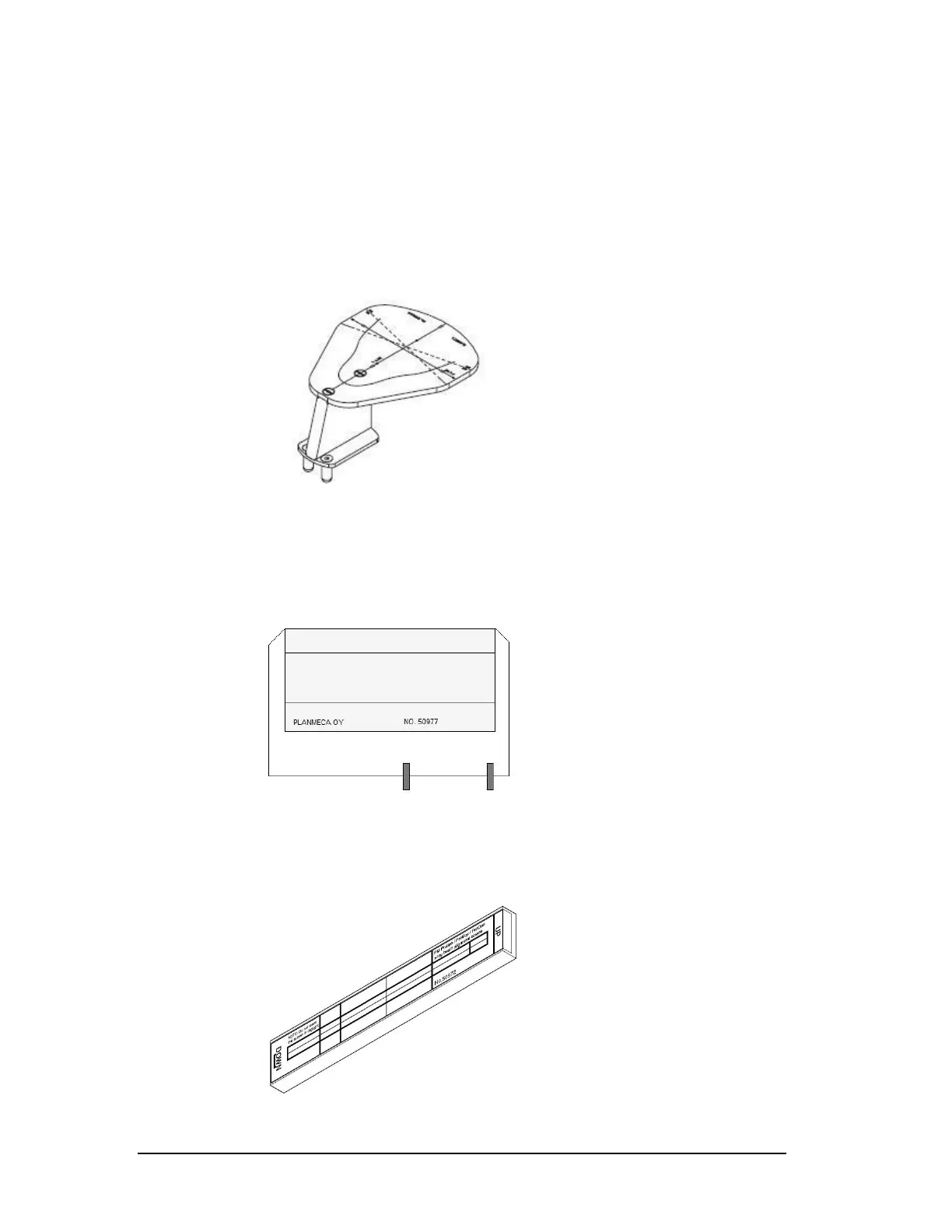

 Ball phantom (part number 50977) used for checking the position of the
Patient Positioning Mechanism and the Positioning lights. (Figure 1)
Figure 1
 Frankfort plane alignment tool (part number 50977) used with the ball
phantom for checking the position of the Frankfort plane light. (Figure
2)
Figure 2
 Beam alignment tool, fluorescent screen, (part number 50972) used for
checking the position of the x-ray beam. (Figure 3)
Figure 3
