Planmeca ProOne - Optional Panoramic Segmenting Function

23
2.1 Adjusting Y-line
Lo
osen the three 4mm allen adjustment screws on the patient positioning

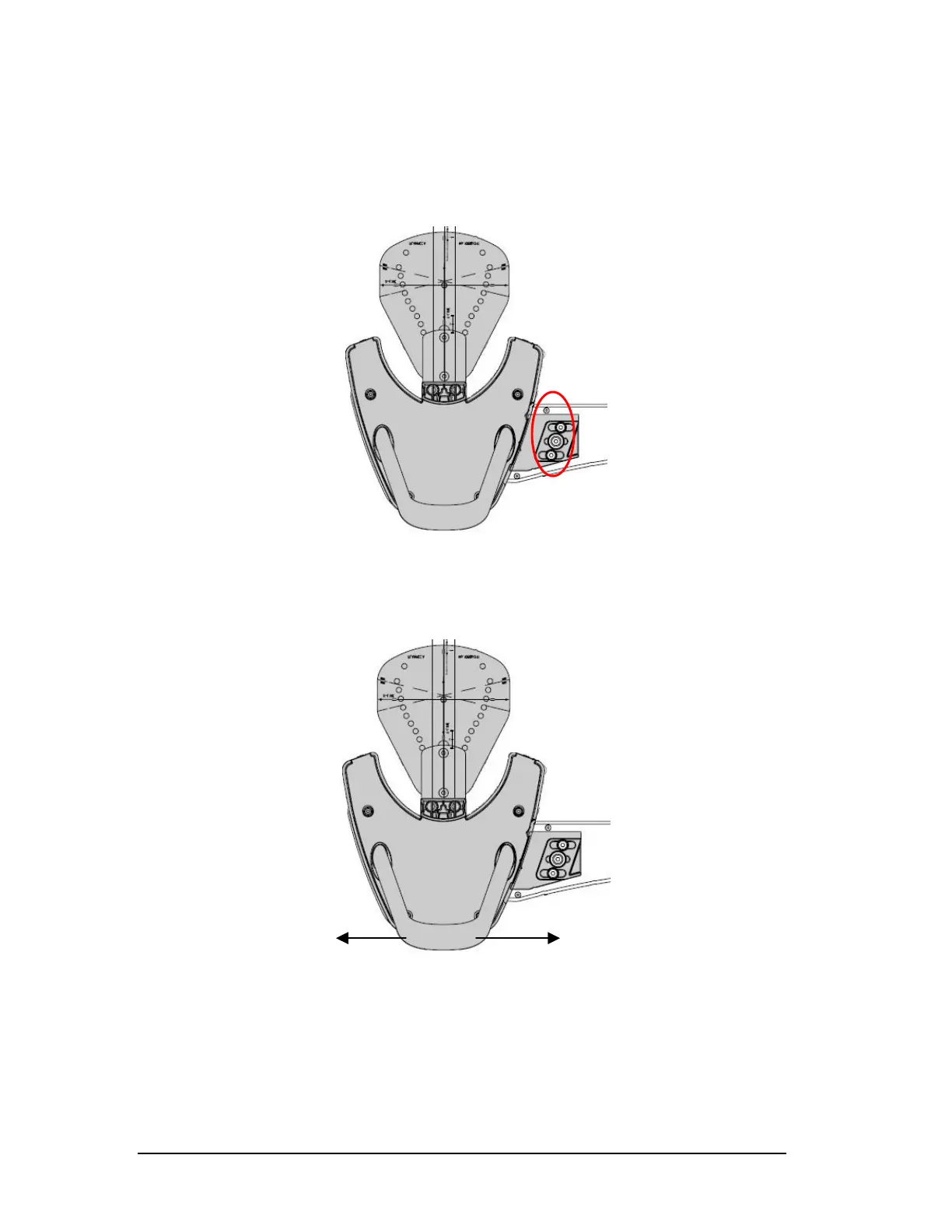

arm. (Figure 31)
Figure 31
Slide the patient support table away from or towards the column till
aligned. (Figure 32)
Figure 32
Re-tighten the adjustments screws and remove the alignment pin.
