33
4.3.a Adjusting the light

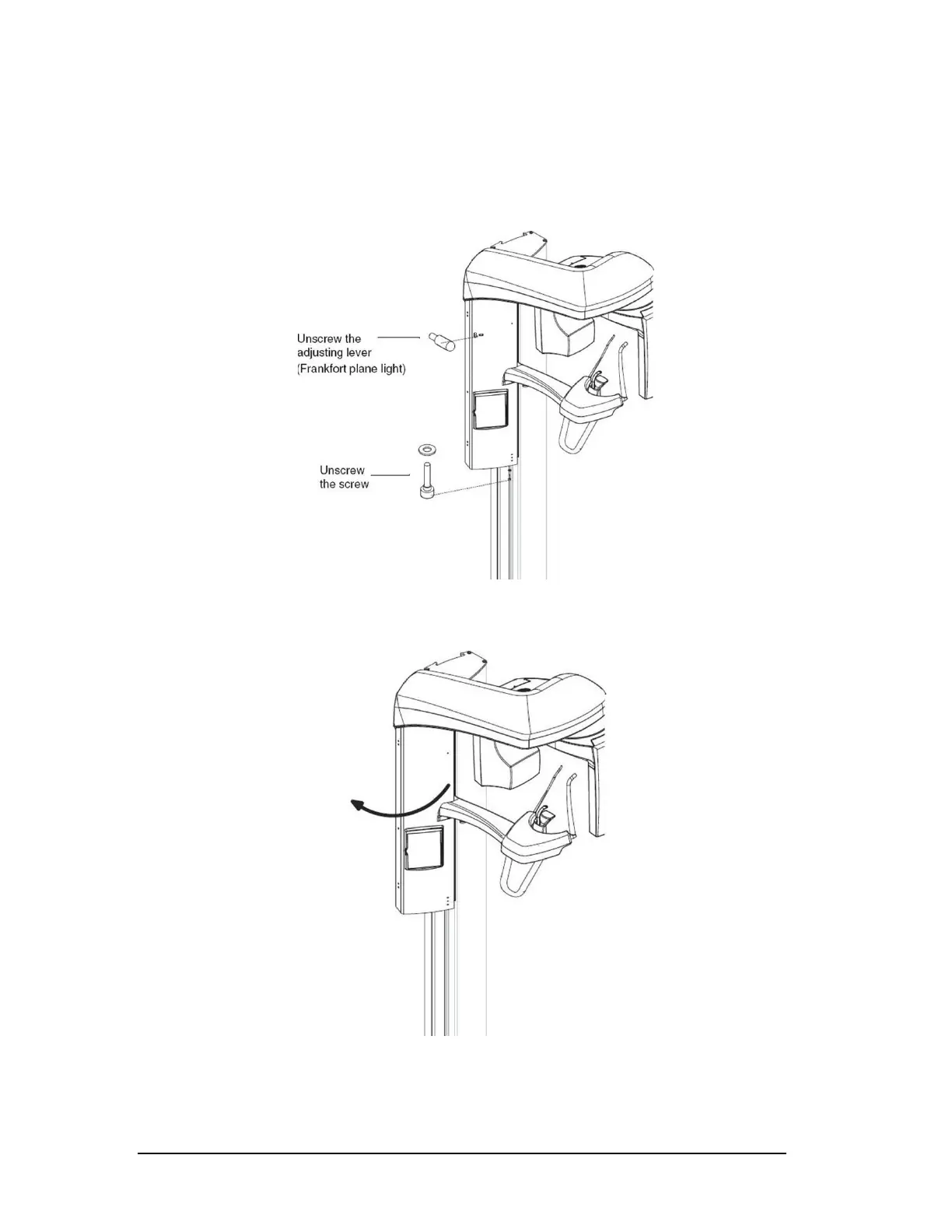

Unscrew the 2.5mm allen screw on the bottom of the column cover
a
nd unscrew the adjusting lever for the light. (Figure 51)
Figure 51
Open the column cover. (Figure 52)
Figure 52
Carefully adjust the light with needle nose pliers unit the light lines
u
p. (See Figure 48)
Printed copies of this document are considered uncontrolled.
7535.11.Rev001 08.07.2018
