Planmeca ProOne - Double Lateral-PA and 3 Angles Lateral TMJ Programs

26

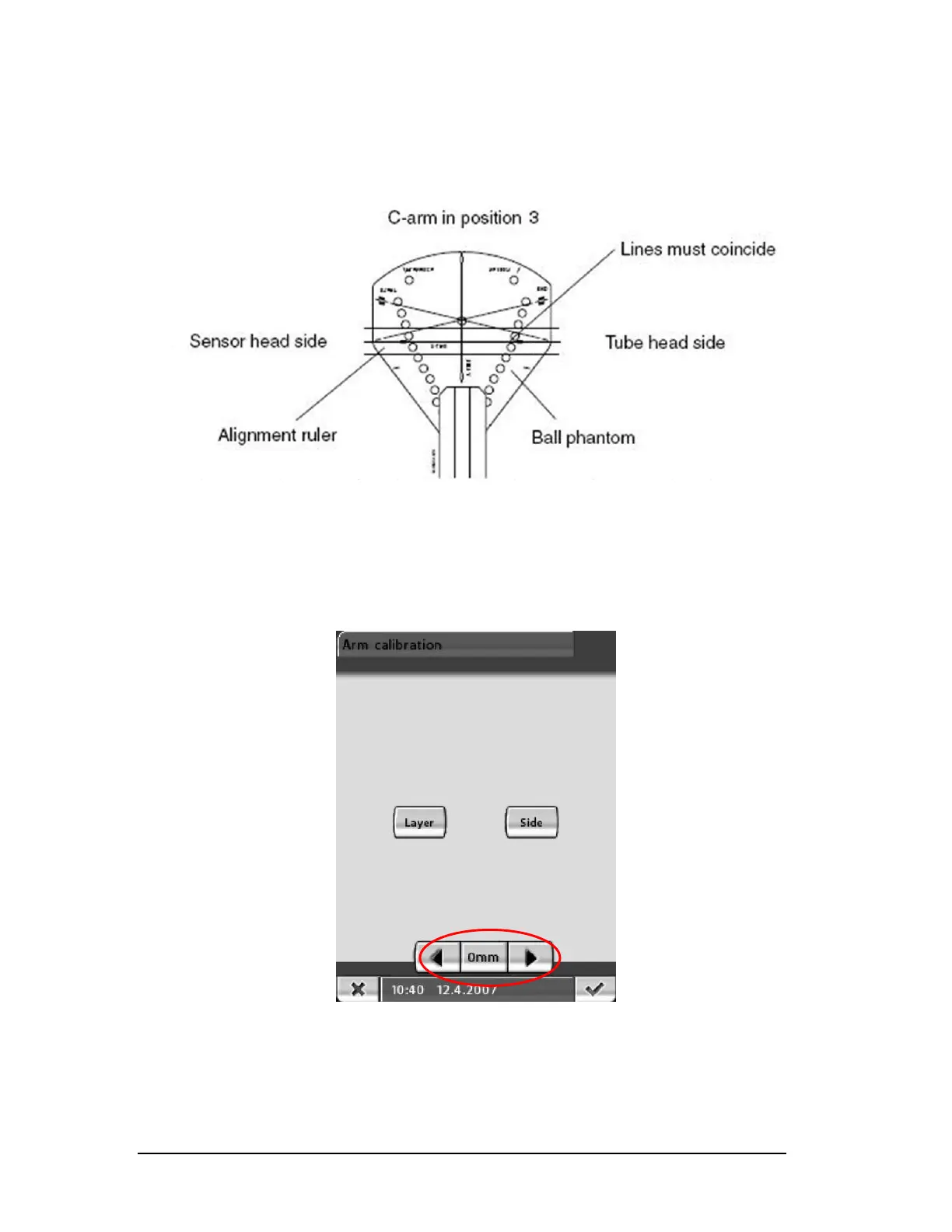

Check to make sure that the x-line on the ball phantom and the alignment ruler
coincide. (Figure 37)
Figure 37
3.1 Adjusting X-line
Use the left or right arrows to adjust the C-arm position till the lines
coincide. (Figure 38)
Figure 38
Remove the alignment pin.
NOTE: If the X-lines are not parallel then adjust the sensor position till it is. See Figure
2
5 on pg.20.
