Planmeca ProOne - Bitewing Panoramic Exposure Program

22

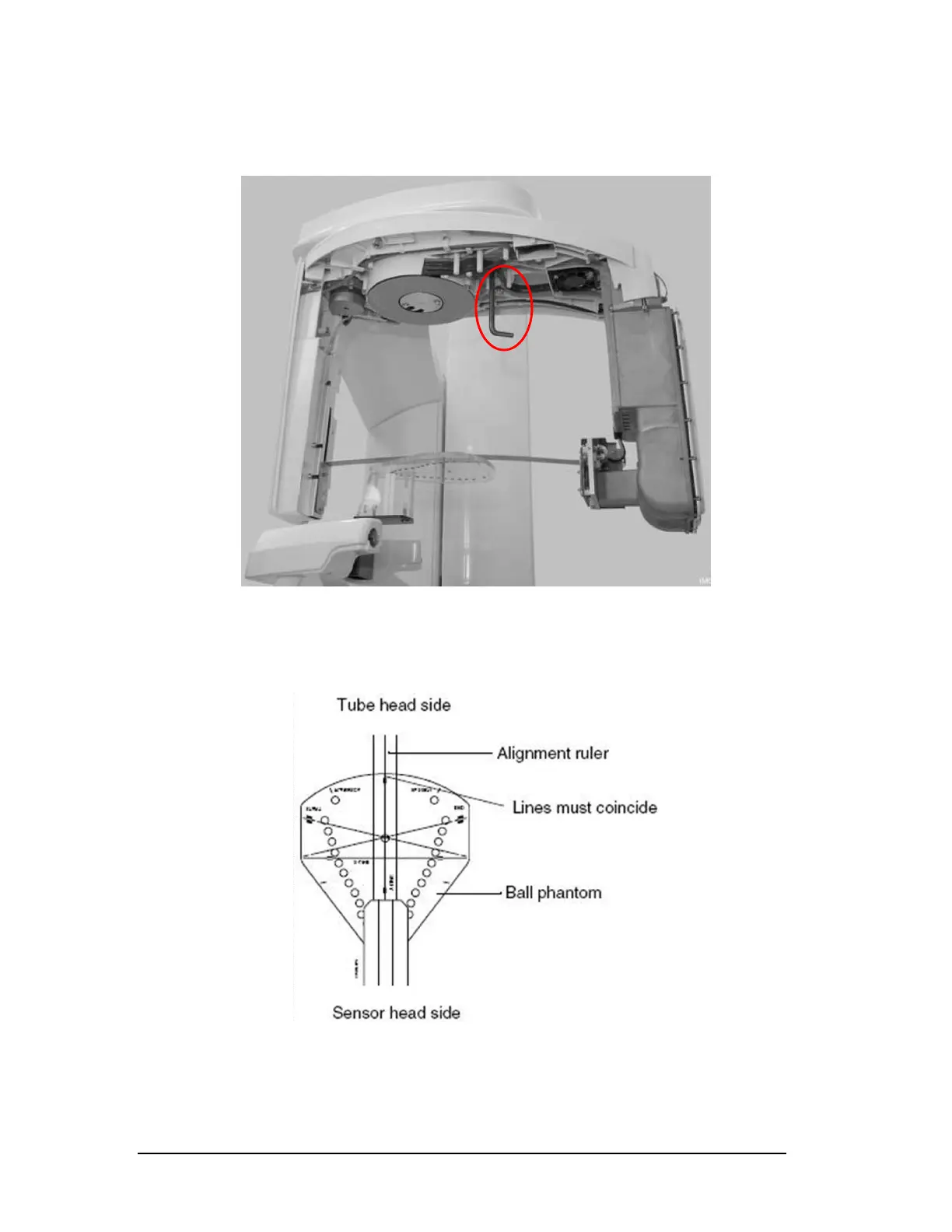

Manually position the C-arm and pin the arm with an alignment pin as shown.
(Figure 29)
Figure 29
Check to make sure that the y-line on the ball phantom and the alignment ruler
coincide. (Figure 30)
Figure 30
Printed copies of this document are considered uncontrolled.
7535.11.Rev001 08.07.2018
