The power recovery time (the period within which the voltage must be restored to have
an automatic restart) can be set between 15 and 3600 seconds or to ‘Infinite’. If the
power recovery time is set to ‘Infinite’, the dryer will always restart after a voltage failure,
no matter how long it takes to restore the voltage. See section Modifying Settings.
A restart delay can also be programmed, allowing for example the dryer and the
compressors to be restarted one after the other.
General remark
The information in this chapter is to be considered as a principal explanation. Some specific
elements may not be applicable to each dryer.

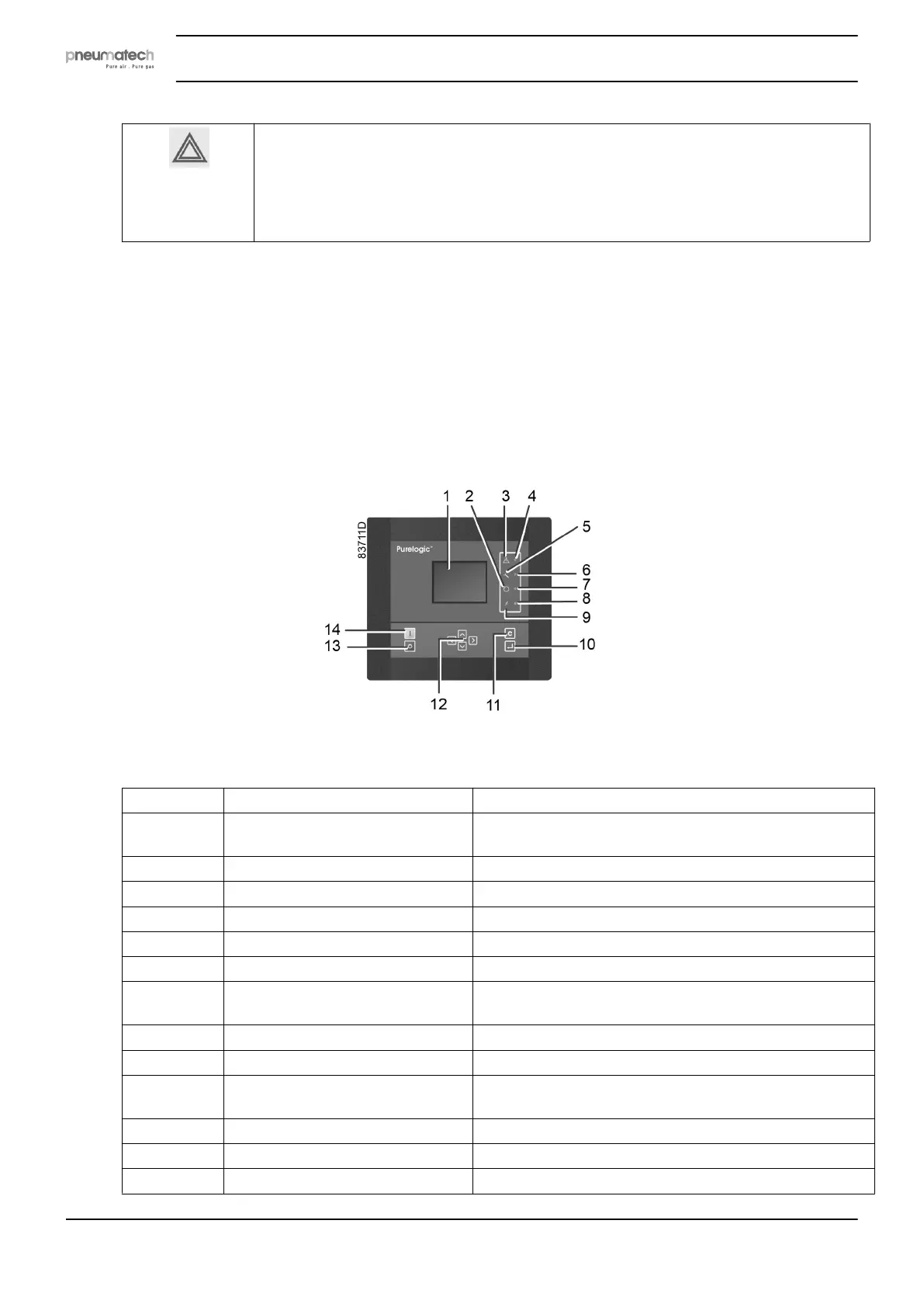

5.2 Control panel
Function keys of the controller
Parts and functions
Reference Designation Function
1 Display Shows the dryer operating condition and a number of
icons to navigate through the menu.
2 Pictograph Automatic operation
3 Pictograph General alarm
4 General alarm LED Flashes if a shut-down warning condition exists.
5 Pictograph Service
6 Service LED Lights up if service is needed
7 Automatic operation LED Indicates that the regulator is automatically controlling
the dryer.
8 Voltage on LED Indicates that the voltage is switched on.
9 Pictograph Voltage on
10 Enter key Key to activate the selected menu or to modify the
selected parameter.
11 Escape key To go to the previous screen or to end the current action
12 Scroll keys Keys to scroll through the menu.
13 Stop button Button to stop the dryer. LED (7) goes out.
