Text on figure
(1) Inputs
(2) Pressure vessel A
(3) Pressure vessel B
(4) Blower pressure
(5) Inlet dryer
• The screen shows the first items of a list of all inputs with their corresponding icons and
readings. Use the scroll button to see the other items in the list.
• If an input is in warning or shutdown, the original icon is replaced by the warning or
shutdown icon respectively.

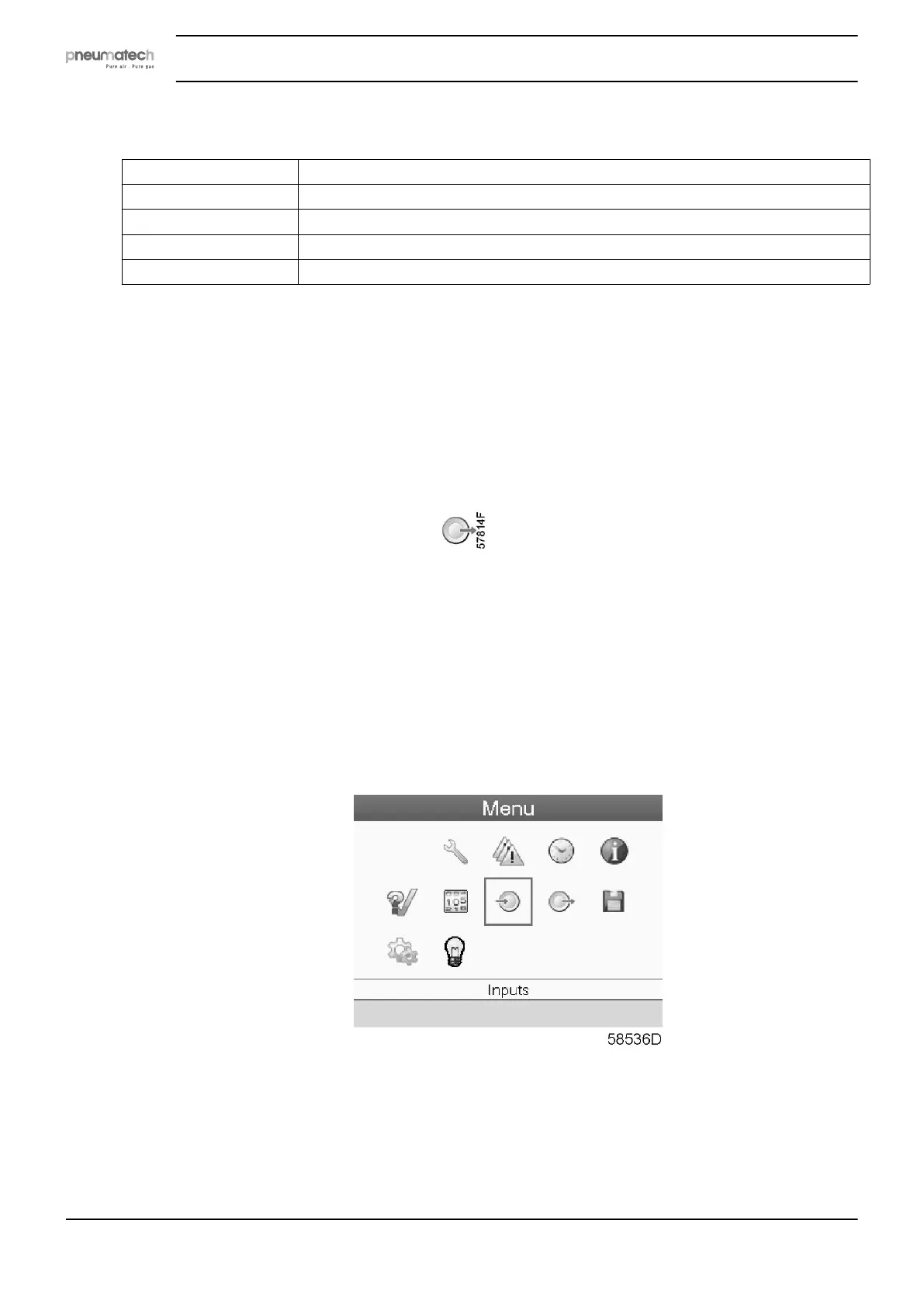

5.7 Outputs menu
Menu icon, Outputs
Function
To call up information regarding the actual status of some outputs such as the Dryer motor, PDP
alarm, General shut-down, etc.
Procedure
Starting from the Main screen (see Main screen),
• Move the cursor to the action button Menu and press the Enter key. Following screen
appears:
• Move the cursor to the Outputs icon using the Scroll keys.
• Press the Enter key. A screen similar to the one below appears:
Instruction book
34 2920 7111 23
