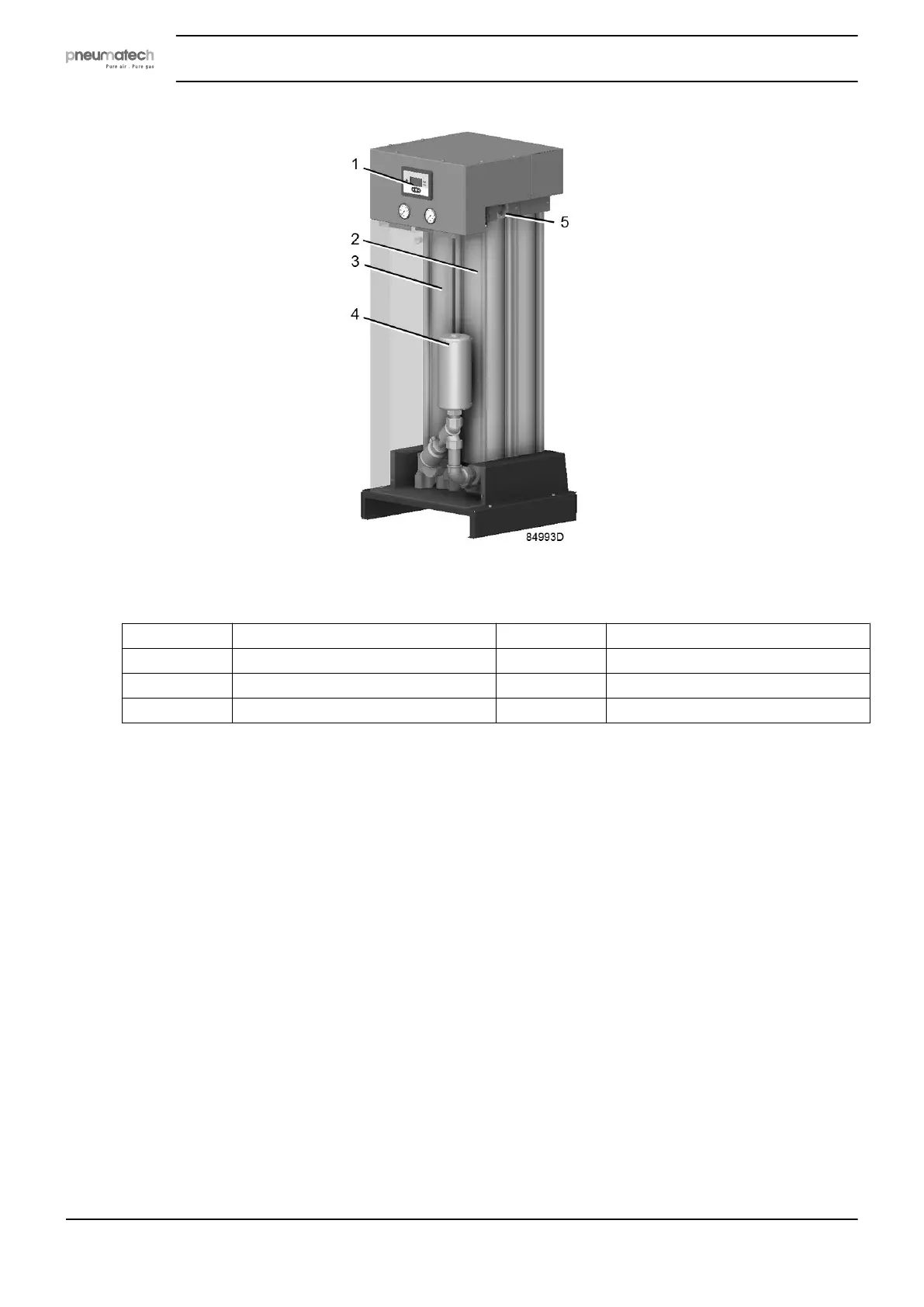

PH 230 – Main parts
Reference Description Reference Description
1 DC1 controller 4 Silencer
2 Right tower 5 Air outlet
3 Left tower
2.2 Operation
General
With its simple construction, the air dryer is both reliable and easy to service. A dryer module
basically consists of two towers, containing the adsorption material or desiccant. The desiccant is
a very porous grain material, able to adsorb large amounts of water vapor.
Instruction book
12 2920 7111 23
