Installation in case X2 is connected
The entire flow from the compressor passes the dryer. The dry air is stored in the air
receiver downstream of the dryer.
With X2 connected, the dryer will stop the purge air flow at the end of the cycle. (< 2
minutes) and it will restart when the air compressor resumes to deliver compressed air.

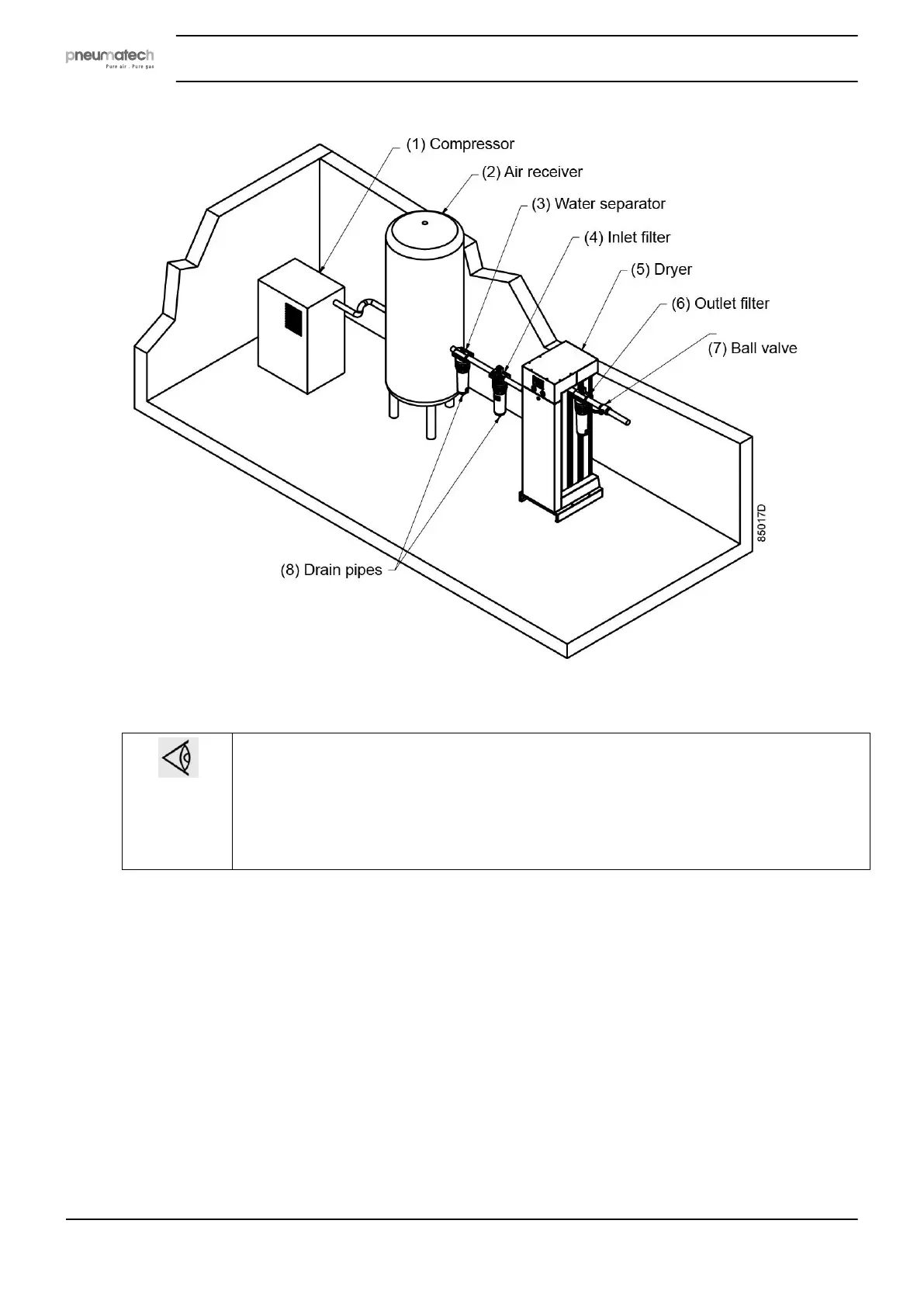

When the air receiver is installed upstream the dryer, the load/unload contact of the
compressor must not be connected to X2. The dryer could get overloaded by the air
receiver's air volume when it is in freeze mode.
Instruction book
74 2920 7111 23
