8.43
Steering and Suspensions
8

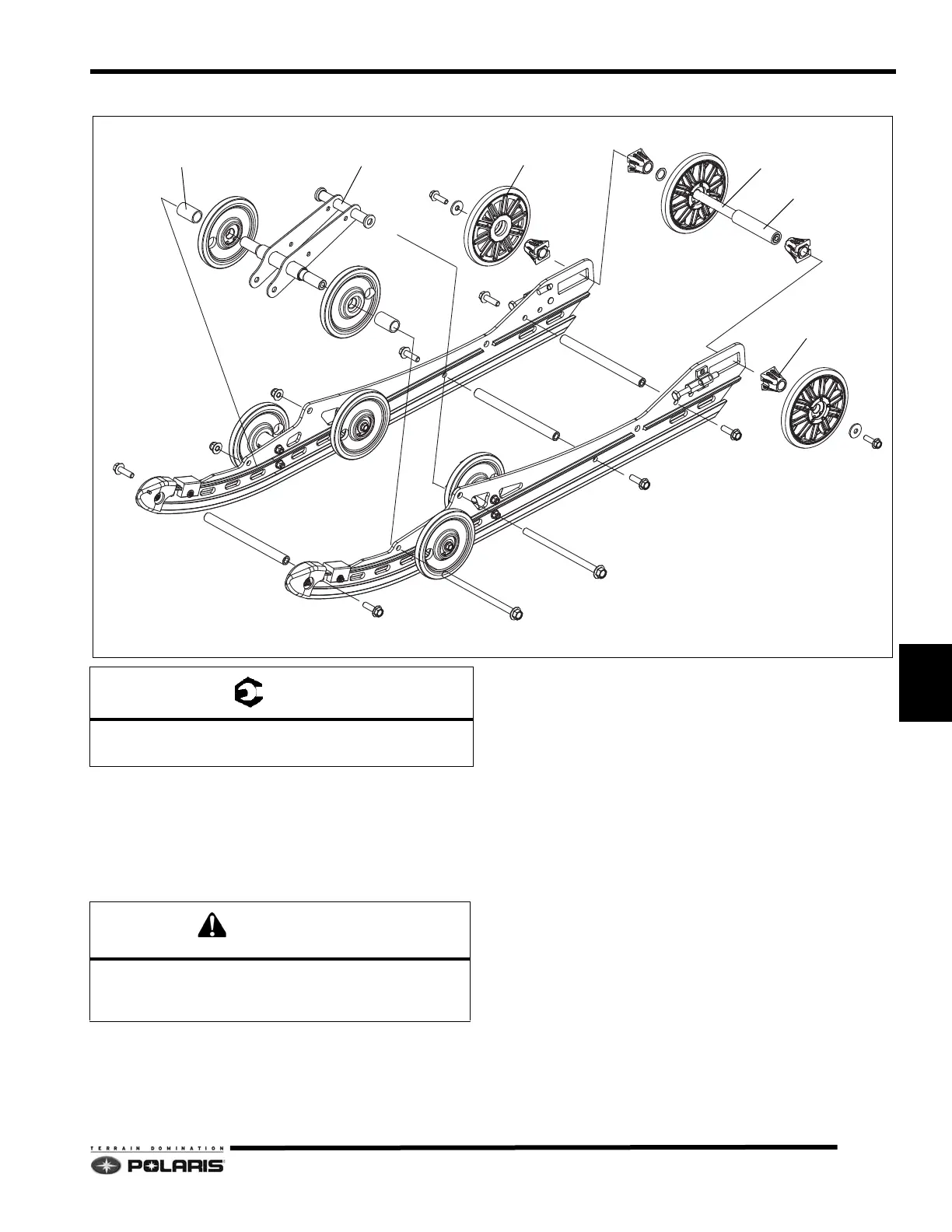

2010 Progressive 120 Idler Shaft Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
• Install rear idler adjust blocks with flat side facing adjuster screw.
A: 33 ft-lbs (45 Nm)
B: 60 ft-lbs (80 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
INNER SHAFT
SPACER
ADJUSTER BLOCK
SHAFT
SHAFT
SHAFT
H BRACKET
WHEEL SPACERS
REAR IDLER WHEELS
A
A
A
B
A
A
A
A
A
A
METRIC FASTENERS
To Next Page
