Polaris 800 RMK ASSAULT 2011 User Manual

8.64
Steering and Suspensions
2011-2013 RMK/2011-2012 PRO RMK 155/163

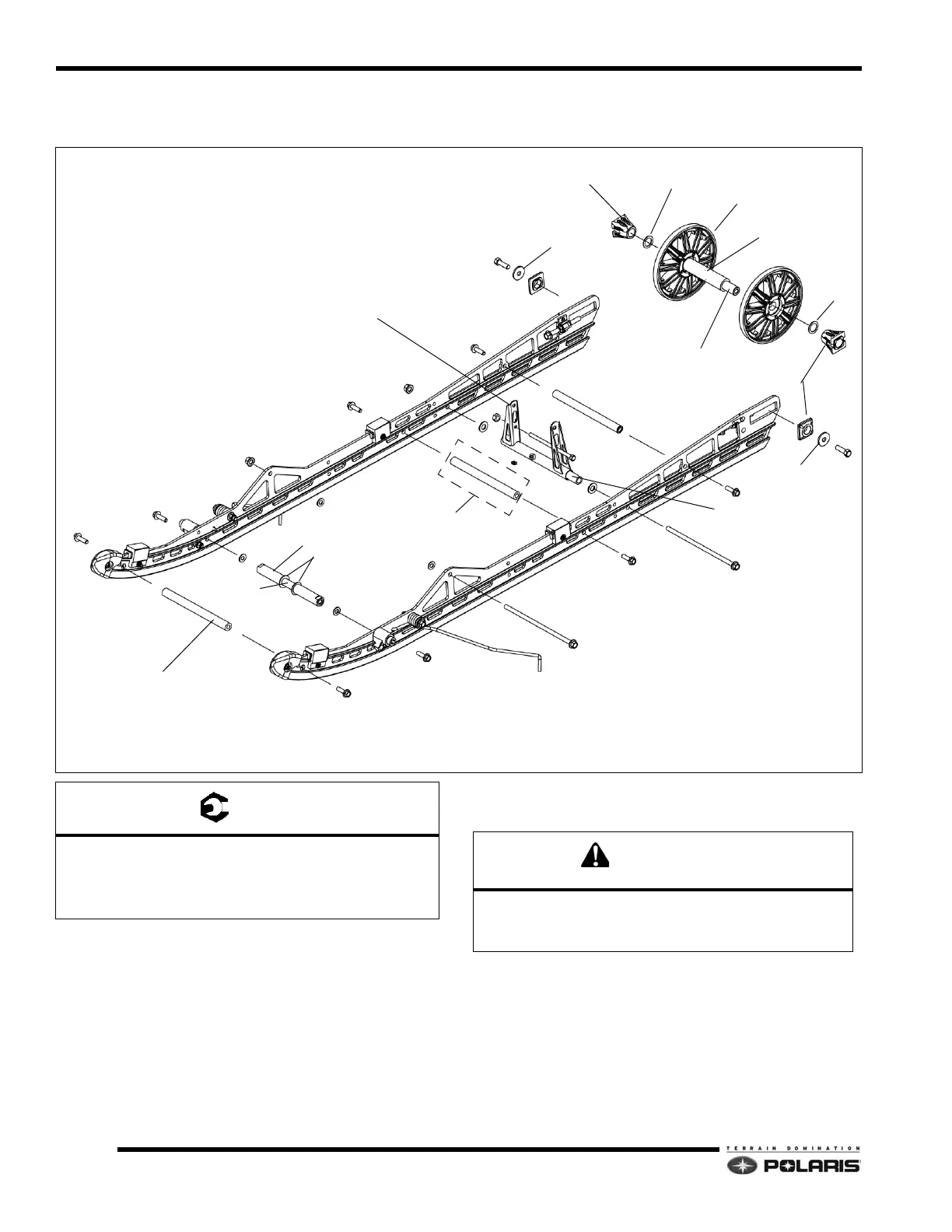

Pivots/Rear Idler
This suspension used on:
• 2011-2013 155/163 Base RMKs
• 2011-2013 RMK Assault
• 2011-2012 155/163 PRO RMKs
Assembly Notes
• Never re-use lock nuts. Always replace with new
pa
rts.
• All pivots must rotate freely after tightening
fa
steners.
LIMITER STRAP SHAFT
RMK ASSAULT ONLY
SPACERS (FLAT SIDE UP)
WASHERS
SHOCK SHAFT
INNER SHAFT
REAR PIVOT
BRACE SHAFT
IDLER WHEEL
INNER SHAFT
SPACER
WASHER
WASHER
WASHER
WASHER
IDLER SPACER
IDLER SPACER
A
A
B
B
C
C
C
C
C
C
D
C
C
METRIC FASTENERS
= T
A: 33 ft-lbs (44.7 Nm) - Apply Loctite® 262™
B: 46 ft-lbs (63 Nm)
C: 33 ft-lbs (44.7 Nm)
D: 6 ft-lbs (8 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
