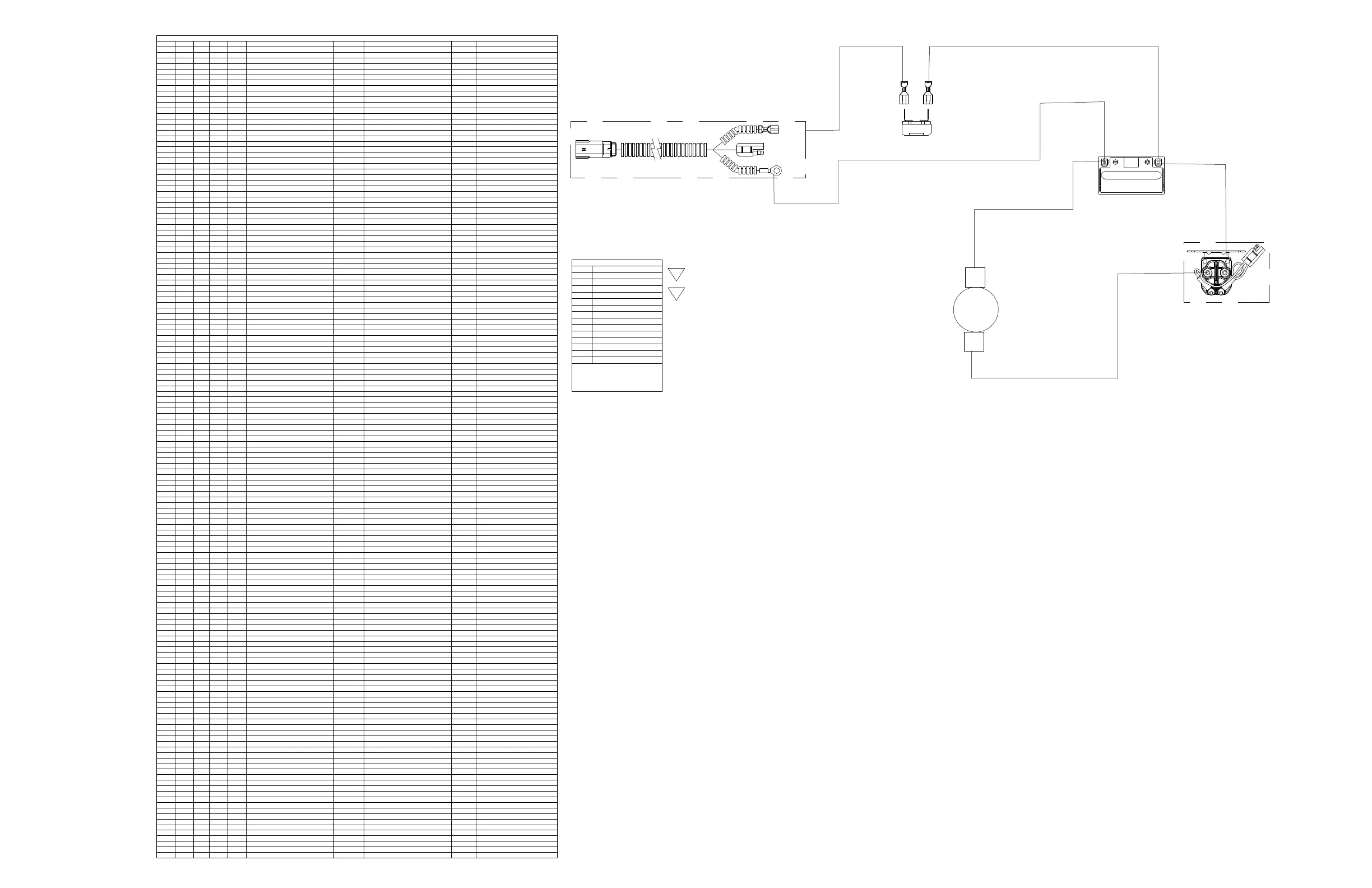

SCHEMATIC CABLE/WIRE TERMINATION TABLE
INDEX CCT # TYPE GAUGE COLOR FROM COMPONENT FROM PORT TO COMPONENT TO PORT FUNCTION
1 001 TXL 0.5 DG/WH ECM (CNA) 1 CHASSIS/HOOD 7 STARTER LOCKOUT
2 003 TXL 0.5 RD/BK ECM (CNA) 3 ELECTRIC START 6 BATTERY VOLTAGE
3 007 TXL 0.5 BK/DB ECM (CNA) 7 CHASSIS SENSOR GND SPLICE #1 1 SENSOR GND
4 008 TXL 0.5 DG/RD ECM (CNA) 8 GROUND SPEED SENSOR B GROUND SPEED
5 009 TXL 0.5 BK ECM (CNA) 9 HARD STOP SPLICE 1 HARD STOP
6 010 TXL 0.5 GY ECM (CNA) 10 LH CONTROL SIGNAL E REVERSE SIGNAL
7 011 TXL 0.5 OG/BK ECM (CNA) 11 BRAKE SW SPLICE 1 BRAKE SW
8 012 TXL 0.5 VT ECM (CNA) 12 OIL LEVEL P1 OIL SW
9 014 TXL 0.5 PK/BK ECM (CNA) 14 FUEL SWITCH P1 FUEL TYPE SW
10 015 TXL 0.5 BN/WH ECM (CNA) 15 ECU GND SPICE 1 ECU GND
11 016 TXL 0.5 BN/WH ECM (CNA) 16 ECU GND SPICE 1 ECU GND
12 017 TXL 0.5 OG ECM (CNA) 17 EXT PWR SPLICE 1 EXT PWR
13 019 TXL 0.5 BN/YE ECM (CNA) 19 FUEL PUMP CONTROL SPLICE 1 FUEL PUMP CONTROL
14 020 TXL 0.5 OG ECM (CNA) 20 POWER/VOLTBOOST B VOLTAGE BOOST
15 021 TXL 0.5 OG ECM (CNA) 21 POWER/VOLTBOOST E VOLTAGE BOOST
16 025 TXL 0.5 BK/RD ECM (CNA) 25 SOFT STOP P2 SOFT STOP
17 026 TXL 0.5 OG/WH ECM (CNA) 26 GROUND SPEED CAPACITOR P1 GROUND SPEED PWR
18 027 TXL 0.5 DG ECM (CNA) 27 CAN LOW SPLICE 1 CAN LOW
19 028 TXL 0.5 YE ECM (CNA) 28 CAN HI SPLICE 1 CAN HI
20 030 TXL 0.5 WH/YE ECM (CNA) 30 EV SOLENOID 2 EV SOLENOID CONTROL
21 033 TXL 0.5 WH/DB ECM (CNA) 33 CHASSIS PWR RELAY 2 CHASSIS RELAY CONTROL
22 034 TXL 0.5 RD ECM (CNA) 34 REGULATOR PWR SPLICE 1 REGULATOR PWR
23 035 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 1 CHASSIS SENSOR GND SPLICE #2 1 SENSOR GND
24 036 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 EXTERNAL POWER 3 SENSOR GND
25 037 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 DIGITAL WRENCH D SENSOR GND
26 038 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 FUEL SWITCH P2 SENSOR GND
27 039 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 SOFT STOP P1 SENSOR GND
28 040 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 TETHER P1 SENSOR GND
29 041 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 CHASSIS/HOOD 13 SENSOR GND
30 042 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 LH CONTROL SIGNAL F SENSOR GND
31 043 TXL 0.5 BK HARD STOP SPLICE 2 CHASSIS/HOOD 14 HARD STOP
32 044 TXL 0.5 BK HARD STOP SPLICE 2 TETHER P2 HARD STOP
33 045 TXL 0.8 OG/BK BRAKE SW SPLICE 2 BRAKE SWITCH P2 BRAKE SW
34 046 TXL 0.8 OG/BK BRAKE SW SPLICE 2 ELECTRIC START 8 BRAKE SW
35 047 TXL 0.5 BN/WH ECU GND SPICE 1 OIL LEVEL P2 ECU GND
36 048 TXL 0.5 BN/WH ECU GND SPICE 2 REGULATOR POWER CAPACITOR P2 ECU GND
37 049 TXL 0.5 BN/WH ECU GND SPICE 2 FUEL PUMP 4 ECU GND
38 050 TXL 0.5 BN/WH ECU GND SPICE 2 GROUND SPEED CAPACITOR P2 ECU GND
39 051 TXL 0.8 BN/YE FUEL PUMP CONTROL SPLICE 2 FUEL PUMP 3
FUEL PUMP CONTROL
40 052 TXL 0.8 BN/YE FUEL PUMP CONTROL SPLICE 2 FUEL PUMP PRIME 2 FUEL PUMP CONTROL
41 053 TXL 0.5 DG CHASSIS/HOOD 16 CAN LOW SPLICE 2 CAN LOW
42 054 TXL 0.5 DG CAN LOW SPLICE 2 DIGITAL WRENCH G CAN LOW
43 055 TXL 0.5 YE CAN HI SPLICE 2 CHASSIS/HOOD 15 CAN HI
44 056 TXL 0.5 YE CAN HI SPLICE 2 DIGITAL WRENCH H CAN HI
45 057 TXL 0.5 YE CAN HI SPLICE 1 ELECTRIC START 3 CAN HI
46 058 TXL 0.8 BN/WH GROUND SPEED CAPACITOR P2 GROUND SPEED SENSOR C ECU GND
47 059 TXL 0.5 OG/WH GROUND SPEED CAPACITOR P1 GROUND SPEED SENSOR A SPEED SENSOR PWR
48 060 TXL 1.0 YE CHASSIS STATOR PWR1 P1 AC PWR SPLICE 1 AC PWR
49 061 TXL 1.0 YE AC PWR SPLICE 1 AC REGULATOR P2 AC PWR
50 062 TXL 1.0 YE AC PWR SPLICE 1 LH CONTROL POWER C AC PWR
51 063 TXL 1.0 YE AC PWR SPLICE 2 RCA ACCESSORY POWER 1 AC PWR
52 064 TXL 1.0 YE AC PWR SPLICE 2 ACC POWER TEST 1 AC PWR
53 066 TXL 1.0 YE/RD LH CONTROL POWER A CHASSIS/HOOD 1 HIGH HEADLIGHT PWR
54 067 TXL 1.0 DG/YE LH CONTROL POWER B CHASSIS/HOOD 9 LOW HEADLIGHT PWR
55 068 TXL 0.8 OG/DG LH CONTROL SIGNAL A THUMBWARMER A LOW TW PWR
56 069 TXL 0.8 GY/WH LH CONTROL SIGNAL B THUMBWARMER B HIGH TW PWR
57 070 TXL 0.8 DB/RD LH CONTROL SIGNAL D SPLICE,HANDWARMER LOW 1 LOW HW PWR
58 071 TXL 0.8 DB/RD RIGHT HANDWARMER B SPLICE,HANDWARMER LOW 2 LOW HW PWR
59 072 TXL 0.8 DB/RD SPLICE,HANDWARMER LOW 2 LEFT HANDWARMER B LOW HW PWR
60 073 TXL 0.8 DB LH CONTROL SIGNAL C SPLICE,HANDWARMER HIGH 1 HIGH HW PWR
61 074 TXL 0.8 DB LEFT HANDWARMER A SPLICE,HANDWARMER HIGH 2 HIGH HW PWR
62 075 TXL 0.8 DB SPLICE,HANDWARMER HIGH 2 RIGHT HANDWARMER A HIGH HW PWR
63 076 TXL 1.0 YE CHASSIS STATOR PWR1 P4 POWER/VOLTBOOST C DC STATOR PWR
64 077 TXL 1.0 YE CHASSIS STATOR PWR1 P3 POWER/VOLTBOOST D DC STATOR PWR
65 078 TXL 0.8 BK/DB TETHER P1 HARD STOP P2 SENSOR GND
66 079 TXL 0.5 BK TETHER P2 HARD STOP P1 HARD STOP
67 080 TXL 0.5 DG CAN LOW SPLICE 1 ELECTRIC START 7 CAN LOW
68 081 TXL 0.5 OG EXT PWR SPLICE 2 DIGITAL WRENCH A EXTERNAL PWR
69 082 TXL 0.8 OG EXT PWR SPLICE 2 EXTERNAL POWER 1 EXTERNAL PWR
70 090 TXL 1.0 BN POWER/VOLTBOOST F CHASSIS GROUND #2 1 CHASSIS GND
71 091 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS GROUND #1 1 CHASSIS GND
72 092 TXL 1.0 BN CHASSIS STATOR PWR1 P2 CHASSIS GROUND #1 1 CHASSIS GND
73 093 TXL 1.0 BN CHASSIS GROUND #1 1 DC GND SPLICE 1 CHASSIS GND
74 094 TXL 0.8 BN CHASSIS GROUND #1 1 HW GND SPLICE 1 CHASSIS GND
75 095 TXL 0.8 BN HW GND SPLICE 1 THUMBWARMER C CHASSIS GND
76 096 TXL 0.8 BN HW GND SPLICE 2 LEFT HANDWARMER C CHASSIS GND
77 097 TXL 0.8 BN HW GND SPLICE 2 RIGHT HANDWARMER C CHASSIS GND
78 098 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS GND 1 CHASSIS GND
79 099 TXL 1.0 BN CHASSIS GND 2 ACC POWER TEST 3
CHASSIS GND
80 100 TXL 1.0 BN CHASSIS GND 2 RCA ACCESSORY POWER 3 CHASSIS GND
81 101 TXL 1.0 BN CHASSIS GND 2 AC REGULATOR P3 CHASSIS GND
82 102 TXL 1.0 BN CHASSIS GND 1 ELECTRIC START 5 CHASSIS GND
83 103 TXL 0.8 BN/WH DC GND SPLICE 1 CHASSIS/HOOD 3 DC GND
84 104 TXL 0.8 BN/WH REGULATOR POWER CAPACITOR P2 DC GND SPLICE 1 DC GND
85 105 TXL 0.8 BN/WH DC GND SPLICE 2 LH CONTROL POWER E DC GND
86 106 TXL 0.8 BN/WH DC TEST PWR 3 DC GND SPLICE 2 DC GND
87 107 TXL 0.8 BN/WH DC GND SPLICE 2 TAILLIGHT C DC GND
88 110 TXL 1.0 RD POWER/VOLTBOOST A REGULATOR PWR SPLICE 1 REGULATOR PWR
89 111 TXL 0.8 RD REGULATOR PWR SPLICE 2 EXT PWR SPLICE 1 REGULATOR PWR
90 112 TXL 1.0 RD REGULATOR PWR SPLICE 1 CHASSIS PWR RELAY 5 REGULATOR PWR
91 113 TXL 0.8 RD REGULATOR PWR SPLICE 2 EV SOLENOID 1 REGULATOR PWR
92 114 TXL 1.0 RD REGULATOR PWR SPLICE 2 REGULATOR POWER CAPACITOR P1 REGULATOR PWR
93 115 TXL 0.8 RD CHASSIS PWR RELAY 5 CHASSIS PWR RELAY 1 REGULATOR PWR
94 116 TXL 1.0 RD/WH CHASSIS PWR RELAY 3 CHASSIS PWR SPLICE 1 CHASSIS DC PWR
95 117 TXL 0.8 RD/WH CHASSIS PWR RELAY 3 ELECTRIC START 2 CHASSIS DC PWR
96 118 TXL 0.8 RD/WH CHASSIS PWR SPLICE 1 DC TEST PWR 1 CHASSIS DC PWR
97 119 TXL 0.8 RD/WH CHASSIS PWR SPLICE 2 ACC PWR FUSE A CHASSIS DC PWR
98 120 TXL 0.8 RD/WH CHASSIS PWR SPLICE 2 CHASSIS/HOOD 2 CHASSIS DC PWR
99 121 TXL 0.8 RD CHASSIS PWR SPLICE 2 BRAKE SWITCH P1 CHASSIS DC PWR
100 122 TXL 0.8 RD REGULATOR POWER CAPACITOR P1 FUEL PUMP PWR SPLICE 2 REGULATOR PWR
101 123 TXL 0.8 RD FUEL PUMP PWR SPLICE 1 FUEL PUMP 1 REGULATOR PWR
102 124 TXL 0.8 RD FUEL PUMP PWR SPLICE 1 FUEL PUMP PRIME 1 REGULATOR PWR
103 126 TXL 0.8 RD BRAKE SWITCH P1 TAILLIGHT A CHASSIS DC PWR
104 127 TXL 1.0 RD/DG AC REGULATOR P1 ELECTRIC START 1 BATTERY CHARGE PWR
105 128 TXL 0.8 RD/YE ACC PWR FUSE B CHASSIS/HOOD 5 ACC DC PWR
106 129 TXL 0.5 WH/BK LH CONTROL POWER F CHASSIS/HOOD 4 SET SWITCH
107 130 TXL 0.5 WH CHASSIS/HOOD 6 ELECTRIC START 4 STARTER SOLENOID CONTROL
108 131 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS/HOOD 8 TBD
109 132 TXL 0.5 WH/RD LH CONTROL POWER D CHASSIS/HOOD 12 MODE SW
110 134 TXL 0.5 VT/WH CHASSIS/HOOD 10 FUEL PUMP 2 FUEL LEVEL
111 135 TXL 0.8 OG/BK BRAKE SWITCH P2 TAILLIGHT B BRAKE LED
112 E002 TXL 0.5 DB/WH ECM_(CNB) 2 TPS/INJ Harness D INJ PTO (PART)
113 E003 TXL 0.5 RD/DB ECM_(CNB) 3 TPS/INJ Harness C INJ PWR
114 E004 TXL 0.5 DG ECM_(CNB) 4 STATOR PWR/SIGNALS F CPS (5TEETH)
115 E005 TXL 0.5 WH/RD ECM_(CNB) 5 CPS_LOW_SPLICE 1 CPS (LOW)
116 E005A TXL 0.5 WH/RD CPS_LOW_SPLICE 2 STATOR PWR/SIGNALS C CPS (LOW)
117 E005B TXL 0.5 WH/DG CPS_LOW_SPLICE 2 STATOR PWR/SIGNALS B CPS (LOW)
118 E006 TXL 0.5 BK/DB ECM_(CNB) 6 SENSOR_GND_1 1 SENSOR GND
119 E006A TXL 0.5 BK/DB SENSOR_GND_1 1 TPS/INJ Harness H
SENSOR GND
120 E006B TXL 0.5 BK/DB SENSOR_GND_1 2 EGT SENSOR GROUND P1 SENSOR GND
121 E006C TXL 0.5 BK/DB SENSOR_GND_1 2 COOLANT TEMP SENSOR P1 SENSOR GND
122 E006D TXL 0.5 BK/DB SENSOR_GND_1 2 TMAP SENSOR 4 SENSOR GND
123 E006E TXL 0.5 BK/DB SENSOR_GND_1 1 COMMUNICATION P3 SENSOR GND
124 E007 TXL 0.5 BU ECM_(CNB) 7 TPS/INJ Harness A TPS SIGNAL
125 E008 TXL 0.5 YE/RD ECM_(CNB) 8 COOLANT TEMP SENSOR P2 COOLANT TEMP SIGNAL
126 E009 TXL 0.5 BK/WH ECM_(CNB) 9 DETONATION SENSOR 1 DET SENSOR GND
127 E010 TXL 0.5 YE/WH ECM_(CNB) 10 COMMUNICATION P4 TxD
128 E011 TXL 0.5 WH/BK ECM_(CNB) 11 COMMUNICATION P2 RxD
129 E015 TXL 0.5 YE/WH ECM_(CNB) 15 TPS/INJ Harness E INJ MAG (PART)
130 E016 TXL 0.5 RD/DB ECM_(CNB) 16 TPS/INJ Harness F INJ PWR
131 E017 TXL 0.5 WH ECM_(CNB) 17 STATOR PWR/SIGNALS G CPS (2 TEETH)
132 E018 TXL 0.5 RD ECM_(CNB) 18 IGN COIL PTO P1 IGN COIL PWR
133 E019 TXL 0.5 BK ECM_(CNB) 19 ENG GND SPLICE 1 ENG GND
134 E019A TXL 0.5 BK ENG GND SPLICE 2 STATOR PWR/SIGNALS E ENG GND
135 E019B TXL 0.5 BK ENG GND SPLICE 2 IGN COIL MAG P2 ENG GND
136 E020 TXL 0.5 GY ECM_(CNB) 20 TMAP SENSOR 1 INTAKE AIR PRESSURE SIGNAL
137 E021 TXL 0.5 OG ECM_(CNB) 21 STATOR PWR/SIGNALS D SYSTEM PWR 1
138 E022 TXL 0.5 WH/BK ECM_(CNB) 22 EGT SIGNAL P1 EGT SIGNAL
139 E023 TXL 0.5 PK ECM_(CNB) 23 TMAP SENSOR 3 INTAKE AIR TEMP SIGNAL
140 E024 TXL 0.5 RD/WH ECM_(CNB) 24 SENSOR_PWR_1 1 SENSOR PWR
141 E024A TXL 0.5 RD/WH SENSOR_PWR_1 2 TPS/INJ Harness B SENSOR PWR
142 E024B TXL 0.5 RD/WH SENSOR_PWR_1 2 TMAP SENSOR 2 SENSOR PWR
143 E024C TXL 0.5 RD/WH SENSOR_PWR_1 2 COMMUNICATION P1 SENSOR PWR
144 E025 TXL 0.5 VT ECM_(CNB) 25 DETONATION SENSOR 2 DET SIGNAL
145 E026 TXL 0.5 OG ECM_(CNB) 26 STATOR PWR/SIGNALS H SYSTEM PWR 2
146 E027 TXL 0.5 WH IGN COIL PTO P2 IGN COIL MAG P1 IGN COIL JUMPER
MOTOR
ESTART
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
2013 PRO-RIDE STANDARD
2 of 2
FILE NAME: 2411810.RSD
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
CL CLEAR
ES DC-SDI HARNESS
(P/N 2411513)
ELECTRIC START
CIRCUIT
BATTERY
START
SOLENOID
GROUND
BREAKER
12A CIRCUIT BREAKER
(P/N 2411592)
1 2
START SOLENOID (P/N 4012358)
VOLTAGE: 12V
BATTERY
To Next Page
