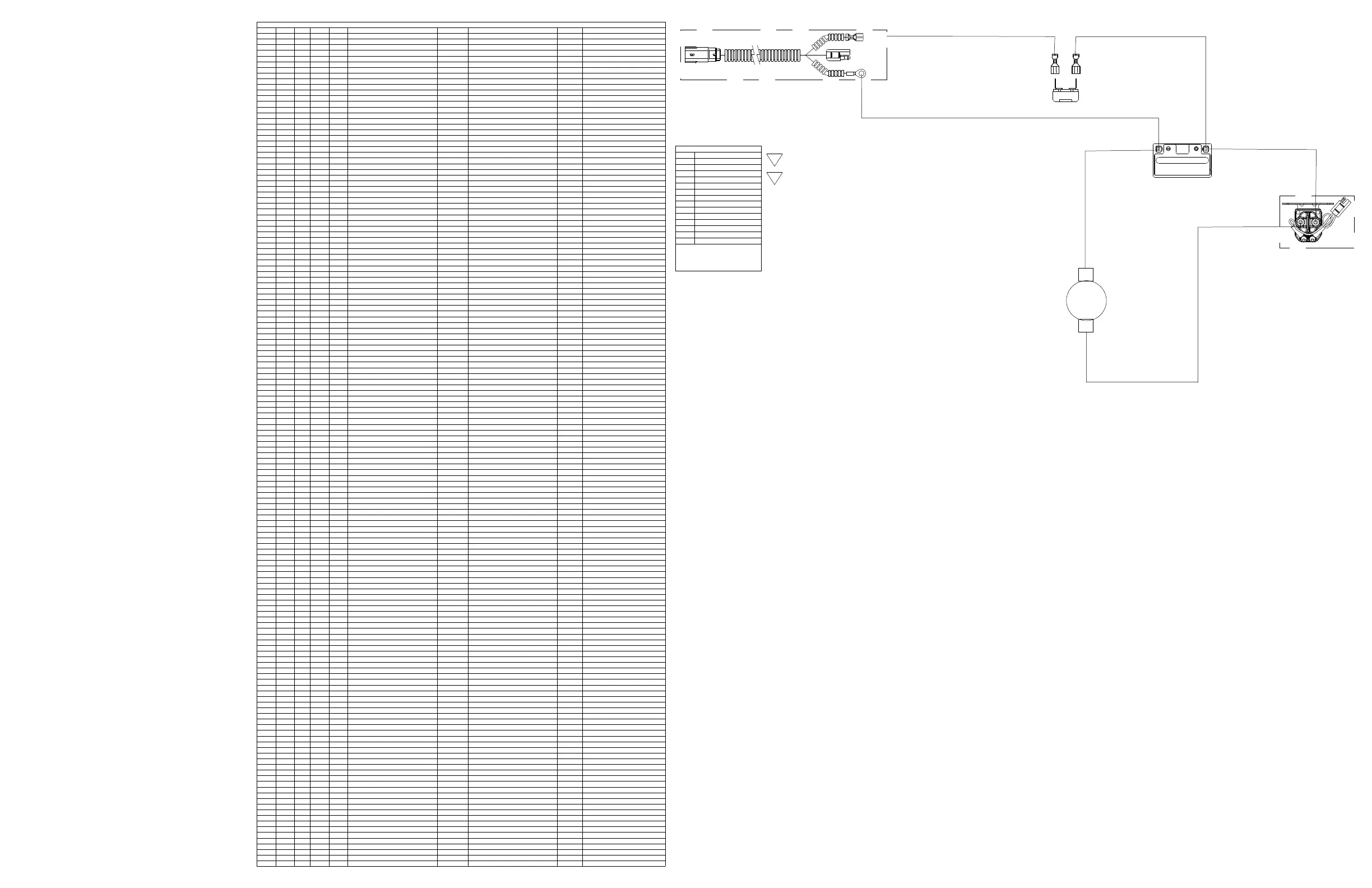

SCHEMATIC CABLE/WIRE TERMINATION TABLE
INDEX CCT # TYPE GAUGE COLOR FROM COMPONENT FROM PORT TO COMPONENT TO PORT FUNCTION
1 001 TXL 0.5 DG/WH ECM (CNA) 1 CHASSIS/HOOD 7 STARTER LOCKOUT
2 002 TXL 1.0 YE AC PWR SPLICE 2 HEATER SW C1 TBD
3 003 TXL 0.5 RD/BK ECM (CNA) 3 ELECTRIC START 6 BATTERY VOLTAGE
4 007 TXL 0.5 BK/DB ECM (CNA) 7 CHASSIS SENSOR GND SPLICE #1 1 SENSOR GND
5 008 TXL 0.5 DG/RD ECM (CNA) 8 GROUND SPEED SENSOR B GROUND SPEED
6 009 TXL 0.5 BK ECM (CNA) 9 HARD STOP SPLICE 1 HARD STOP
7 010 TXL 0.5 GY ECM (CNA) 10 TBD 1 REVERSE SIGNAL
8 011 TXL 0.5 OG/BK ECM (CNA) 11 BRAKE SW SPLICE 1 BRAKE SW
9 012 TXL 0.5 VT ECM (CNA) 12 OIL LEVEL P1 OIL SW
10 014 TXL 0.5 PK/BK ECM (CNA) 14 FUEL SWITCH P1 FUEL TYPE SW
11 015 TXL 0.5 BN/WH ECM (CNA) 15 ECU GND SPICE 1 ECU GND
12 016 TXL 0.5 BN/WH ECM (CNA) 16 ECU GND SPICE 1 ECU GND
13 017 TXL 0.5 OG ECM (CNA) 17 EXT PWR SPLICE 1 EXT PWR
14 019 TXL 0.5 BN/YE ECM (CNA) 19 FUEL PUMP CONTROL SPLICE 1 FUEL PUMP CONTROL
15 020 TXL 0.5 OG ECM (CNA) 20 POWER/VOLTBOOST B VOLTAGE BOOST
16 021 TXL 0.5 OG ECM (CNA) 21 POWER/VOLTBOOST E VOLTAGE BOOST
17 025 TXL 0.5 BK/RD ECM (CNA) 25 SOFT STOP P2 SOFT STOP
18 026 TXL 0.5 OG/WH ECM (CNA) 26 GROUND SPEED CAPACITOR P1 GROUND SPEED PWR
19 027 TXL 0.5 DG ECM (CNA) 27 CAN LOW SPLICE 1 CAN LOW
20 028 TXL 0.5 YE ECM (CNA) 28 CAN HI SPLICE 1 CAN HI
21 030 TXL 0.5 WH/YE ECM (CNA) 30 EV SOLENOID 2 EV SOLENOID CONTROL
22 033 TXL 0.5 WH/DB ECM (CNA) 33 CHASSIS PWR RELAY 2 CHASSIS RELAY CONTROL
23 034 TXL 0.5 RD ECM (CNA) 34 REGULATOR PWR SPLICE 1 REGULATOR PWR
24 035 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 1 CHASSIS SENSOR GND SPLICE #2 1 SENSOR GND
25 036 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 EXTERNAL POWER 3 SENSOR GND
26 037 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 DIGITAL WRENCH D SENSOR GND
27 038 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #1 2 FUEL SWITCH P2 SENSOR GND
28 039 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 SOFT STOP P1 SENSOR GND
29 040 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 TETHER P1 SENSOR GND
30 041 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 CHASSIS/HOOD 13 SENSOR GND
31 042 TXL 0.8 BK/DB CHASSIS SENSOR GND SPLICE #2 2 TBD 2 SENSOR GND
32 043 TXL 0.5 BK HARD STOP SPLICE 2 CHASSIS/HOOD 14 HARD STOP
33 044 TXL 0.5 BK HARD STOP SPLICE 2 TETHER P2 HARD STOP
34 045 TXL 0.8 OG/BK BRAKE SW SPLICE 2 BRAKE SWITCH P2 BRAKE SW
35 046 TXL 0.8 OG/BK BRAKE SW SPLICE 2 ELECTRIC START 8 BRAKE SW
36 047 TXL 0.5 BN/WH ECU GND SPICE 1 OIL LEVEL P2 ECU GND
37 048 TXL 0.5 BN/WH ECU GND SPICE 2 REGULATOR POWER CAPACITOR P2 ECU GND
38 049 TXL 0.5 BN/WH ECU GND SPICE 2 FUEL PUMP 4 ECU GND
39 050 TXL 0.5 BN/WH ECU GND SPICE 2 GROUND SPEED CAPACITOR P2
ECU GND
40 051 TXL 0.8 BN/YE FUEL PUMP CONTROL SPLICE 2 FUEL PUMP 3 FUEL PUMP CONTROL
41 052 TXL 0.8 BN/YE FUEL PUMP CONTROL SPLICE 2 FUEL PUMP PRIME 2 FUEL PUMP CONTROL
42 053 TXL 0.5 DG CHASSIS/HOOD 16 CAN LOW SPLICE 2 CAN LOW
43 054 TXL 0.5 DG CAN LOW SPLICE 2 DIGITAL WRENCH G CAN LOW
44 055 TXL 0.5 YE CAN HI SPLICE 2 CHASSIS/HOOD 15 CAN HI
45 056 TXL 0.5 YE CAN HI SPLICE 2 DIGITAL WRENCH H CAN HI
46 057 TXL 0.5 YE CAN HI SPLICE 1 ELECTRIC START 3 CAN HI
47 058 TXL 0.8 BN/WH GROUND SPEED CAPACITOR P2 GROUND SPEED SENSOR C ECU GND
48 059 TXL 0.5 OG/WH GROUND SPEED CAPACITOR P1 GROUND SPEED SENSOR A SPEED SENSOR PWR
49 060 TXL 1.0 YE CHASSIS STATOR PWR1 P1 AC PWR SPLICE 1 AC PWR
50 061 TXL 1.0 YE AC PWR SPLICE 1 AC REGULATOR P2 AC PWR
51 062 TXL 1.0 YE AC PWR SPLICE 1 HEADLIGHT SW C1 AC PWR
52 063 TXL 1.0 YE AC PWR SPLICE 2 RCA ACCESSORY POWER 1 AC PWR
53 064 TXL 1.0 YE AC PWR SPLICE 2 ACC POWER TEST 1 AC PWR
54 066 TXL 1.0 YE/RD HEADLIGHT SW 1 CHASSIS/HOOD 1 HIGH HEADLIGHT PWR
55 067 TXL 1.0 DG/YE HEADLIGHT SW 2 CHASSIS/HOOD 9 LOW HEADLIGHT PWR
56 068 TXL 0.8 OG/DG HEATER SW 2 THUMBWARMER A LOW TW PWR
57 069 TXL 0.8 GY/WH HEATER SW 1 THUMBWARMER B HIGH TW PWR
58 070 TXL 0.8 DB/RD HEATER SW 1 SPLICE,HANDWARMER LOW 1 LOW HW PWR
59 071 TXL 0.8 DB/RD RIGHT HANDWARMER B SPLICE,HANDWARMER LOW 2 LOW HW PWR
60 072 TXL 0.8 DB/RD SPLICE,HANDWARMER LOW 2 LEFT HANDWARMER B LOW HW PWR
61 073 TXL 0.8 DB HEATER SW 2 SPLICE,HANDWARMER HIGH 1 HIGH HW PWR
62 074 TXL 0.8 DB LEFT HANDWARMER A SPLICE,HANDWARMER HIGH 2 HIGH HW PWR
63 075 TXL 0.8 DB SPLICE,HANDWARMER HIGH 2 RIGHT HANDWARMER A HIGH HW PWR
64 076 TXL 1.0 YE CHASSIS STATOR PWR1 P4 POWER/VOLTBOOST C DC STATOR PWR
65 077 TXL 1.0 YE CHASSIS STATOR PWR1 P3 POWER/VOLTBOOST D DC STATOR PWR
66 078 TXL 0.8 BK/DB TETHER P1 HARD STOP P2 SENSOR GND
67 079 TXL 0.5 BK TETHER P2 HARD STOP P1 HARD STOP
68 080 TXL 0.5 DG CAN LOW SPLICE 1 ELECTRIC START 7 CAN LOW
69 081 TXL 0.5 OG EXT PWR SPLICE 2 DIGITAL WRENCH A EXTERNAL PWR
70 082 TXL 0.8 OG EXT PWR SPLICE 2 EXTERNAL POWER 1 EXTERNAL PWR
71 090 TXL 1.0 BN POWER/VOLTBOOST F CHASSIS GROUND #2 1 CHASSIS GND
72 091 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS GROUND #1 1 CHASSIS GND
73 092 TXL 1.0 BN CHASSIS STATOR PWR1 P2 CHASSIS GROUND #1 1 CHASSIS GND
74 093 TXL 1.0 BN CHASSIS GROUND #1 1 DC GND SPLICE 1 CHASSIS GND
75 094 TXL 0.8 BN CHASSIS GROUND #1 1 HW GND SPLICE 1 CHASSIS GND
76 095 TXL 0.8 BN HW GND SPLICE 1 THUMBWARMER C CHASSIS GND
77 096 TXL 0.8 BN HW GND SPLICE 2 LEFT HANDWARMER C CHASSIS GND
78 097 TXL 0.8 BN HW GND SPLICE 2 RIGHT HANDWARMER C CHASSIS GND
79 098 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS GND 1
CHASSIS GND
80 099 TXL 1.0 BN CHASSIS GND 2 ACC POWER TEST 3 CHASSIS GND
81 100 TXL 1.0 BN CHASSIS GND 2 RCA ACCESSORY POWER 3 CHASSIS GND
82 101 TXL 1.0 BN CHASSIS GND 2 AC REGULATOR P3 CHASSIS GND
83 102 TXL 1.0 BN CHASSIS GND 1 ELECTRIC START 5 CHASSIS GND
84 103 TXL 0.8 BN/WH DC GND SPLICE 1 CHASSIS/HOOD 3 DC GND
85 104 TXL 0.8 BN/WH REGULATOR POWER CAPACITOR P2 DC GND SPLICE 1 DC GND
86 105 TXL 0.8 BN/WH DC GND SPLICE 2 MODE_SET SW C1 DC GND
87 106 TXL 0.8 BN/WH DC TEST PWR 3 DC GND SPLICE 2 DC GND
88 107 TXL 0.8 BN/WH DC GND SPLICE 2 TAILLIGHT C DC GND
89 110 TXL 1.0 RD POWER/VOLTBOOST A REGULATOR PWR SPLICE 1 REGULATOR PWR
90 111 TXL 0.8 RD REGULATOR PWR SPLICE 2 EXT PWR SPLICE 1 REGULATOR PWR
91 112 TXL 1.0 RD REGULATOR PWR SPLICE 1 CHASSIS PWR RELAY 5 REGULATOR PWR
92 113 TXL 0.8 RD REGULATOR PWR SPLICE 2 EV SOLENOID 1 REGULATOR PWR
93 114 TXL 1.0 RD REGULATOR PWR SPLICE 2 REGULATOR POWER CAPACITOR P1 REGULATOR PWR
94 115 TXL 0.8 RD CHASSIS PWR RELAY 5 CHASSIS PWR RELAY 1 REGULATOR PWR
95 116 TXL 1.0 RD/WH CHASSIS PWR RELAY 3 CHASSIS PWR SPLICE 1 CHASSIS DC PWR
96 117 TXL 0.8 RD/WH CHASSIS PWR RELAY 3 ELECTRIC START 2 CHASSIS DC PWR
97 118 TXL 0.8 RD/WH CHASSIS PWR SPLICE 1 DC TEST PWR 1 CHASSIS DC PWR
98 119 TXL 0.8 RD/WH CHASSIS PWR SPLICE 2 ACC PWR FUSE A CHASSIS DC PWR
99 120 TXL 0.8 RD/WH CHASSIS PWR SPLICE 2 CHASSIS/HOOD 2 CHASSIS DC PWR
100 121 TXL 0.8 RD CHASSIS PWR SPLICE 2 BRAKE SWITCH P1 CHASSIS DC PWR
101 122 TXL 0.8 RD REGULATOR POWER CAPACITOR P1 FUEL PUMP PWR SPLICE 2 REGULATOR PWR
102 123 TXL 0.8 RD FUEL PUMP PWR SPLICE 1 FUEL PUMP 1 REGULATOR PWR
103 124 TXL 0.8 RD FUEL PUMP PWR SPLICE 1 FUEL PUMP PRIME 1 REGULATOR PWR
104 126 TXL 0.8 RD BRAKE SWITCH P1 TAILLIGHT A CHASSIS DC PWR
105 127 TXL 1.0 RD/DG AC REGULATOR P1 ELECTRIC START 1 BATTERY CHARGE PWR
106 128 TXL 0.8 RD/YE ACC PWR FUSE B CHASSIS/HOOD 5 ACC DC PWR
107 129 TXL 0.5 WH/BK MODE_SET SW 2 CHASSIS/HOOD 4 SET SWITCH
108 130 TXL 0.5 WH CHASSIS/HOOD 6 ELECTRIC START 4 STARTER SOLENOID CONTROL
109 131 TXL 1.0 BN CHASSIS GROUND #2 1 CHASSIS/HOOD 8 TBD
110 132 TXL 0.5 WH/RD MODE_SET SW 1 CHASSIS/HOOD 12 MODE SW
111 134 TXL 0.5 VT/WH CHASSIS/HOOD 10 FUEL PUMP 2 FUEL LEVEL
112 135 TXL 0.8 OG/BK BRAKE SWITCH P2 TAILLIGHT B BRAKE LED
113 E002 TXL 0.5 DB/WH ECM_(CNB) 2 TPS/INJ Harness D INJ PTO (PART)
114 E003 TXL 0.5 RD/DB ECM_(CNB) 3 TPS/INJ Harness C INJ PWR
115 E004 TXL 0.5 DG ECM_(CNB) 4 STATOR PWR/SIGNALS F CPS (5TEETH)
116 E005 TXL 0.5 WH/RD ECM_(CNB) 5 CPS_LOW_SPLICE 1 CPS (LOW)
117 E005A TXL 0.5 WH/RD CPS_LOW_SPLICE 2 STATOR PWR/SIGNALS C CPS (LOW)
118 E005B TXL 0.5 WH/DG CPS_LOW_SPLICE 2 STATOR PWR/SIGNALS B CPS (LOW)
119 E006 TXL 0.5 BK/DB ECM_(CNB) 6 SENSOR_GND_1 1
SENSOR GND
120 E006A TXL 0.5 BK/DB SENSOR_GND_1 1 TPS/INJ Harness H SENSOR GND
121 E006B TXL 0.5 BK/DB SENSOR_GND_1 2 EGT SENSOR GROUND P1 SENSOR GND
122 E006C TXL 0.5 BK/DB SENSOR_GND_1 2 COOLANT TEMP SENSOR P1 SENSOR GND
123 E006D TXL 0.5 BK/DB SENSOR_GND_1 2 TMAP SENSOR 4 SENSOR GND
124 E006E TXL 0.5 BK/DB SENSOR_GND_1 1 COMMUNICATION P3 SENSOR GND
125 E007 TXL 0.5 BU ECM_(CNB) 7 TPS/INJ Harness A TPS SIGNAL
126 E008 TXL 0.5 YE/RD ECM_(CNB) 8 COOLANT TEMP SENSOR P2 COOLANT TEMP SIGNAL
127 E009 TXL 0.5 BK/WH ECM_(CNB) 9 DETONATION SENSOR 1 DET SENSOR GND
128 E010 TXL 0.5 YE/WH ECM_(CNB) 10 COMMUNICATION P4 TxD
129 E011 TXL 0.5 WH/BK ECM_(CNB) 11 COMMUNICATION P2 RxD
130 E015 TXL 0.5 YE/WH ECM_(CNB) 15 TPS/INJ Harness E INJ MAG (PART)
131 E016 TXL 0.5 RD/DB ECM_(CNB) 16 TPS/INJ Harness F INJ PWR
132 E017 TXL 0.5 WH ECM_(CNB) 17 STATOR PWR/SIGNALS G CPS (2 TEETH)
133 E018 TXL 0.5 RD ECM_(CNB) 18 IGN COIL PTO P1 IGN COIL PWR
134 E019 TXL 0.5 BK ECM_(CNB) 19 ENG GND SPLICE 1 ENG GND
135 E019A TXL 0.5 BK ENG GND SPLICE 2 STATOR PWR/SIGNALS E ENG GND
136 E019B TXL 0.5 BK ENG GND SPLICE 2 IGN COIL MAG P2 ENG GND
137 E020 TXL 0.5 GY ECM_(CNB) 20 TMAP SENSOR 1 INTAKE AIR PRESSURE SIGNAL
138 E021 TXL 0.5 OG ECM_(CNB) 21 STATOR PWR/SIGNALS D SYSTEM PWR 1
139 E022 TXL 0.5 WH/BK ECM_(CNB) 22 EGT SIGNAL P1 EGT SIGNAL
140 E023 TXL 0.5 PK ECM_(CNB) 23 TMAP SENSOR 3 INTAKE AIR TEMP SIGNAL
141 E024 TXL 0.5 RD/WH ECM_(CNB) 24 SENSOR_PWR_1 1 SENSOR PWR
142 E024A TXL 0.5 RD/WH SENSOR_PWR_1 2 TPS/INJ Harness B SENSOR PWR
143 E024B TXL 0.5 RD/WH SENSOR_PWR_1 2 TMAP SENSOR 2 SENSOR PWR
144 E024C TXL 0.5 RD/WH SENSOR_PWR_1 2 COMMUNICATION P1 SENSOR PWR
145 E025 TXL 0.5 VT ECM_(CNB) 25 DETONATION SENSOR 2 DET SIGNAL
146 E026 TXL 0.5 OG ECM_(CNB) 26 STATOR PWR/SIGNALS H SYSTEM PWR 2
147 E027 TXL 0.5 WH IGN COIL PTO P2 IGN COIL MAG P1 IGN COIL JUMPER
ESTART
MOTOR
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
2013 PRO-RIDE PREMIUM
2 of 2
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
SHEET NO. 2 OF 2
CL CLEAR
ES DC-SDI HARNESS
(P/N 2411513)
ELECTRIC START
CIRCUIT
BATTERY
START
SOLENOID
GROUND
BREAKER
12A CIRCUIT BREAKER
(P/N 2411592)
1 2
START SOLENOID (P/N 4012358)
VOLTAGE: 12V
BATTERY
To Next Page
