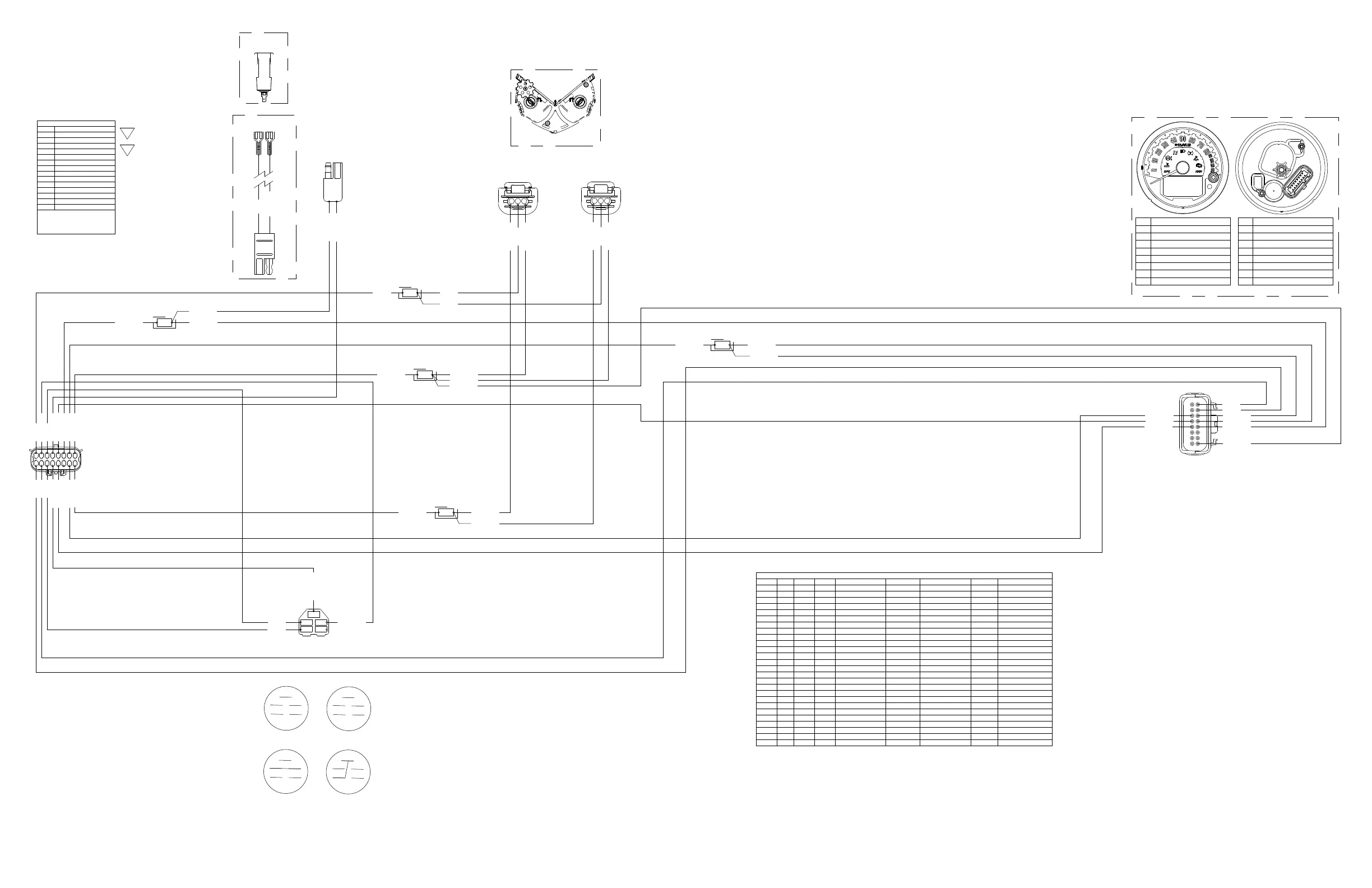

SCHEMATIC CABLE/WIRE TERMINATION TABLE
CCT # TYPE GAUGE COLORFROM COMPONENTFROM PORT TO COMPONENT TO PORT FUNCTION
01 TXL 16 YE/RD CHASSIS_HOOD 1 HI BEAM SPLICE 1 HI BEAM
02 TXL 18 RD/WH CHASSIS_HOOD 2 CHASSIS_PWR 1 DC GAUGE PWR
03 TXL 18 BN/WH CHASSIS_HOOD 3 ECU_GND_SPLICE 1 DC GAUGE GND
04 TXL 18 WH/BK CHASSIS_HOOD 4 CPI GAUGE 12 SET SW
05 TXL 18 RD/YE CHASSIS_HOOD 5 ACC_PWR P1 ACC_PWR
06 TXL 18 WH CHASSIS_HOOD 6 IGN_SWITCH P2 STARTER_SOL_GND
07 TXL 18 DG/WH CHASSIS_HOOD 7 IGN_SWITCH P3 STARTER_LOCKOUT
08 TXL 16 BN CHASSIS_HOOD 8 AC GND SPLICE 1 AC GND
09 TXL 16 DG/YE CHASSIS_HOOD 9 LO BEAM SPLICE 1 LO_BEAM
10 TXL 18 VT/WH CHASSIS_HOOD 10 CPI GAUGE 11 FUEL LEVEL
12 TXL 18 WH/RD CHASSIS_HOOD 12 CPI GAUGE 13 MODE SW
13 TXL 18 BK/DB CHASSIS_HOOD 13 IGN_SWITCH P1 SENSOR_GND
14 TXL 18 BK CHASSIS_HOOD 14 IGN_SWITCH P4 HARD_STOP
15 TXL 20 YE CHASSIS_HOOD 15 CPI GAUGE 1 CAN HI
16 TXL 20 DG CHASSIS_HOOD 16 CPI GAUGE 2 CAN LO
17 TXL 16 BN L HEADLIGHT 2 AC GND SPLICE 2 AC GND
18 TXL 16 BN AC GND SPLICE 2 R HEADLIGHT 2 AC GND
19 TXL 16 DG/YE LO BEAM SPLICE 2 L HEADLIGHT 1 LO_BEAM
20 TXL 16 DG/YE LO BEAM SPLICE 2 R HEADLIGHT 1 LO_BEAM
21 TXL 16 YE/RD HI BEAM SPLICE 2 L HEADLIGHT 3 HI BEAM
22 TXL 16 YE/RD HI BEAM SPLICE 2 R HEADLIGHT 3 HI BEAM
23 TXL 18 YE/RD HI BEAM SPLICE 2 CPI GAUGE 8 HI BEAM
24 TXL 18 BN/WH CPI GAUGE 5 ECU_GND_SPLICE 2 DC GAUGE GND
25 TWP 18 BN/WH ECU_GND_SPLICE 1 ACC_PWR P2 ECU_GND
27 TXL 18 RD/WH CPI GAUGE 4 CHASSIS_PWR 2 DC GAUGE PWR
28 TXL 18 RD/WH CHASSIS_PWR 2 CPI GAUGE 3 DC GAUGE PWR
08/02/11
DELPHI 12191065
ACC_PWR
IGN_SWITCH
RD/WH
BN
AC
ON
OFF
START
15 YE
15 YE
16 DG
16 DG
02 RD/WH
02 RD/WH
03 BN/WH
03 BN/WH
HI BEAM SPLICE
1 2
01 YE/RD
01 YE/RD 21 YE/RD
21 YE/RD
22 YE/RD
22 YE/RD
LO BEAM SPLICE
1 2
04 WH/BK
04 WH/BK
12 WH/RD
12 WH/RD
10 VT/WH
10 VT/WH
09 DG/YE
09 DG/YE 19 DG/YE
19 DG/YE
20 DG/YE
20 DG/YE
P1
P2 P3
P4 P5
P1
P2
07 DG/WH
07 DG/WH
ECU_GND_SPLICE
1 2 24 BN/WH
24 BN/WH
25 BN/WH
25 BN/WH
05 RD/YE
05 RD/YE
06 WH
06 WH
13 BK/DB
13 BK/DB
14 BK
14 BK
CHASSIS_PWR
1 2 27 RD/WH
27 RD/WH
28 RD/WH
28 RD/WH
12345678
910111213141516
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
23 YE/RD
23 YE/RD23 YE/RD
08 BN
08 BN
AC GND SPLICE
1 2 17 BN
17 BN
18 BN
18 BN
R HEADLIGHT
1 2 3
L HEADLIGHT
1 2 3
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: 2411838-01
SHEET NO. 1 OF 1
CL CLEAR
HEADLIGHT (P/N 2411017)
12V OUTLET HARNESS
(P/N 2411352)
12V
RECEPTACLE
(P/N 4010638)
INSTRUMENT CLUSTER (P/N 2411798)
FUNCTIONPIN
1
2
3
4
5
6
7
8
CAN HIGH
CAN LOW
-
CONSTANT POWER (+)
POWER GROUND
-
BRAKE
HIGH BEAM SWITCH INPUT
FUEL LEVEL INPUT
SET FUNCTION INPUT
LOW OIL
-
FUNCTIONPIN
9
10
11
12
13
14
15
16
REVERSE INPUT
RPM
MODE FUNCTION INPUT
SPEED PULSES
2013 INDY HOOD
