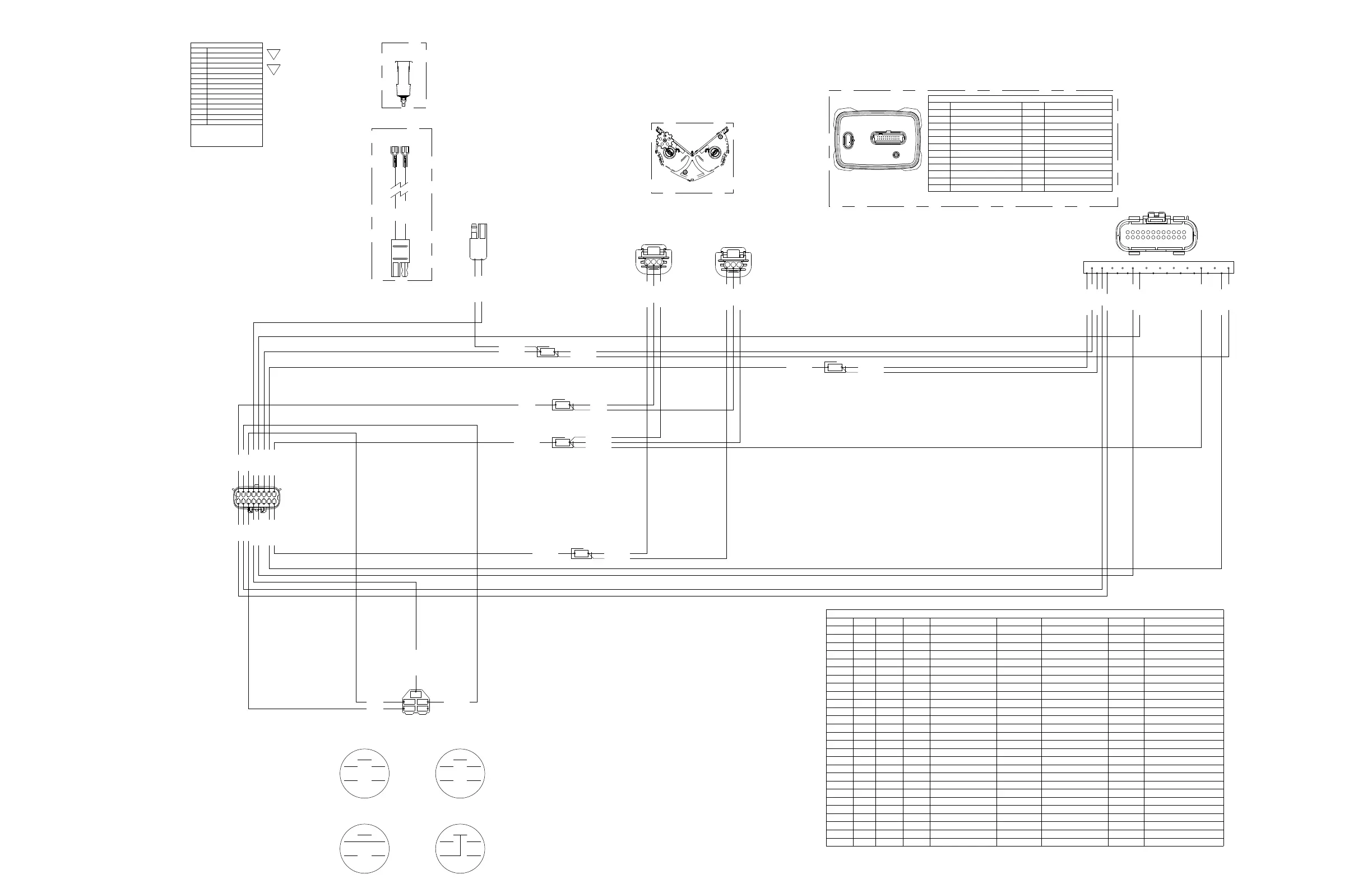

SCHEMATIC CABLE/WIRE TERMINATION TABLE
CCT # TYPE GAUGE COLORFROM COMPONENTFROM PORT TO COMPONENT TO PORT FUNCTION
01 TXL 16 YE/RD HOOD_CHASSIS 1 HI BEAM SPLICE 1 HI BEAM
02 TXL 18 RD/WH HOOD_CHASSIS 2 CHASSIS_PWR 1 DC GAUGE PWR
03 TXL 18 BN/WH HOOD_CHASSIS 3 ECU_GND_SPLICE 1 DC GAUGE GND
04 TXL 18 WH/BK HOOD_CHASSIS 4 GAUGE 11 SET SW
05 TXL 18 RD/YE HOOD_CHASSIS 5 ACC_PWR P1 ACC_PWR
06 TXL 18 WH HOOD_CHASSIS 6 IGN_SWITCH P2 STARTER_SOL_GND
07 TXL 18 DG/WH HOOD_CHASSIS 7 IGN_SWITCH P3 STARTER_LOCKOUT
08 TXL 16 BN HOOD_CHASSIS 8 AC GND SPLICE 1 AC GND
09 TXL 16 DG/YE HOOD_CHASSIS 9 LO BEAM SPLICE 1 LO_BEAM
10 TXL 18 VT/WH HOOD_CHASSIS 10 GAUGE 23 FUEL LEVEL
12 TXL 18 WH/RD HOOD_CHASSIS 12 GAUGE 10 MODE SW
13 TXL 18 BK/DB HOOD_CHASSIS 13 IGN_SWITCH P1 SENSOR_GND
14 TXL 18 BK HOOD_CHASSIS 14 IGN_SWITCH P4 HARD_STOP
15 TXL 20 YE HOOD_CHASSIS 15 GAUGE 4 CAN HI
16 TXL 20 DG HOOD_CHASSIS 16 GAUGE 5 CAN LO
17 TXL 16 BN AC GND SPLICE 2 L HEADLIGHT 2 AC GND
18 TXL 16 BN AC GND SPLICE 2 R HEADLIGHT 2 AC GND
19 TXL 16 DG/YE LO BEAM SPLICE 2 L HEADLIGHT 1 LO_BEAM
20 TXL 16 DG/YE LO BEAM SPLICE 2 R HEADLIGHT 1 LO_BEAM
21 TXL 16 YE/RD HI BEAM SPLICE 2 L HEADLIGHT 3 HI BEAM
22 TXL 16 YE/RD HI BEAM SPLICE 2 R HEADLIGHT 3 HI BEAM
23 TXL 18 YE/RD HI BEAM SPLICE 2 GAUGE 20 HI BEAM INDICATOR
24 TXL 18 BN/WH GAUGE 2 ECU_GND_SPLICE 2 DC GAUGE GND
25 TWP 18 BN/WH ECU_GND_SPLICE 1 ACC_PWR P2 ECU_GND
26 TXL 18 BN/WH ECU_GND_SPLICE 2 GAUGE 24 SYSTEM GND
27 TXL 18 RD/WH GAUGE 1 CHASSIS_PWR 2 DC GAUGE PWR
28 TXL 18 RD/WH CHASSIS_PWR 2 GAUGE 3 DC GAUGE PWR
08/04/11
ACC_PWR
IGN_SWITCH
RD/WH
BN
START
ON
OFF
15 YE
15 YE
16 DG
16 DG
02 RD/WH
02 RD/WH
03 BN/WH
03 BN/WH
HI BEAM SPLICE
1 2
01 YE/RD
01 YE/RD
21 YE/RD
21 YE/RD
22 YE/RD
22 YE/RD
23 YE/RD
23 YE/RD
LO BEAM SPLICE
1 2
AC GND SPLICE
1 2
08 BN
08 BN 17 BN
17 BN
18 BN
18 BN
04 WH/BK
04 WH/BK
12 WH/RD
12 WH/RD
10 VT/WH
10 VT/WH
09 DG/YE
09 DG/YE 19 DG/YE
19 DG/YE
20 DG/YE
20 DG/YE
P1
P2 P3
P4 P5
P1
P2
07 DG/WH
07 DG/WH
ECU_GND_SPLICE
1 2 24 BN/WH
24 BN/WH
25 BN/WH
25 BN/WH
05 RD/YE
05 RD/YE
06 WH
06 WH
13 BK/DB
13 BK/DB
14 BK
14 BK
26 BN/WH
26 BN/WH
CHASSIS_PWR
1 2 27 RD/WH
27 RD/WH
28 RD/WH
28 RD/WH
HOOD_CHASSIS
12345678
910111213141516
1 12
13 24
GAUGE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
L HEADLIGHT
1 2 3
R HEADLIGHT
1 2 3
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: 2411861-01
SHEET NO. 1 OF 1
CL CLEAR
HEADLIGHT (P/N 2411017)
18
19
20
21
22
23
24
FUNCTION
UNUSED
SPARE INPUT-ANALOG
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
HIGH BEAM
UNUSED
LOW OIL LEVEL
FUEL LEVEL SENSOR
FUEL LEVEL GROUND
GAUGE
(P/N 2411693)
B
CONNECTOR B
CAVITY
1
2
3
4
5
6
7
8
9
10
11
12
FUNCTION
BATTERY +
GROUND
RUN STOP SWITCH
CAN 1 HIGH
CAN 1 LOW
CAN 2 HIGH
CAN 2 LOW
AMBIENT AIR SENSOR
AMBIENT AIR SENSOR GND
MODE SWITCH
SELECT SWITCH
BRAKE INDICATOR
CAVITY
13
14
15
16
17
12V OUTLET HARNESS
(P/N 2411352)
12V
RECEPTACLE
(P/N 4010638)
2013 600/800 RUSH/SWITCHBACK/RMK HOOD
