2
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
2.35

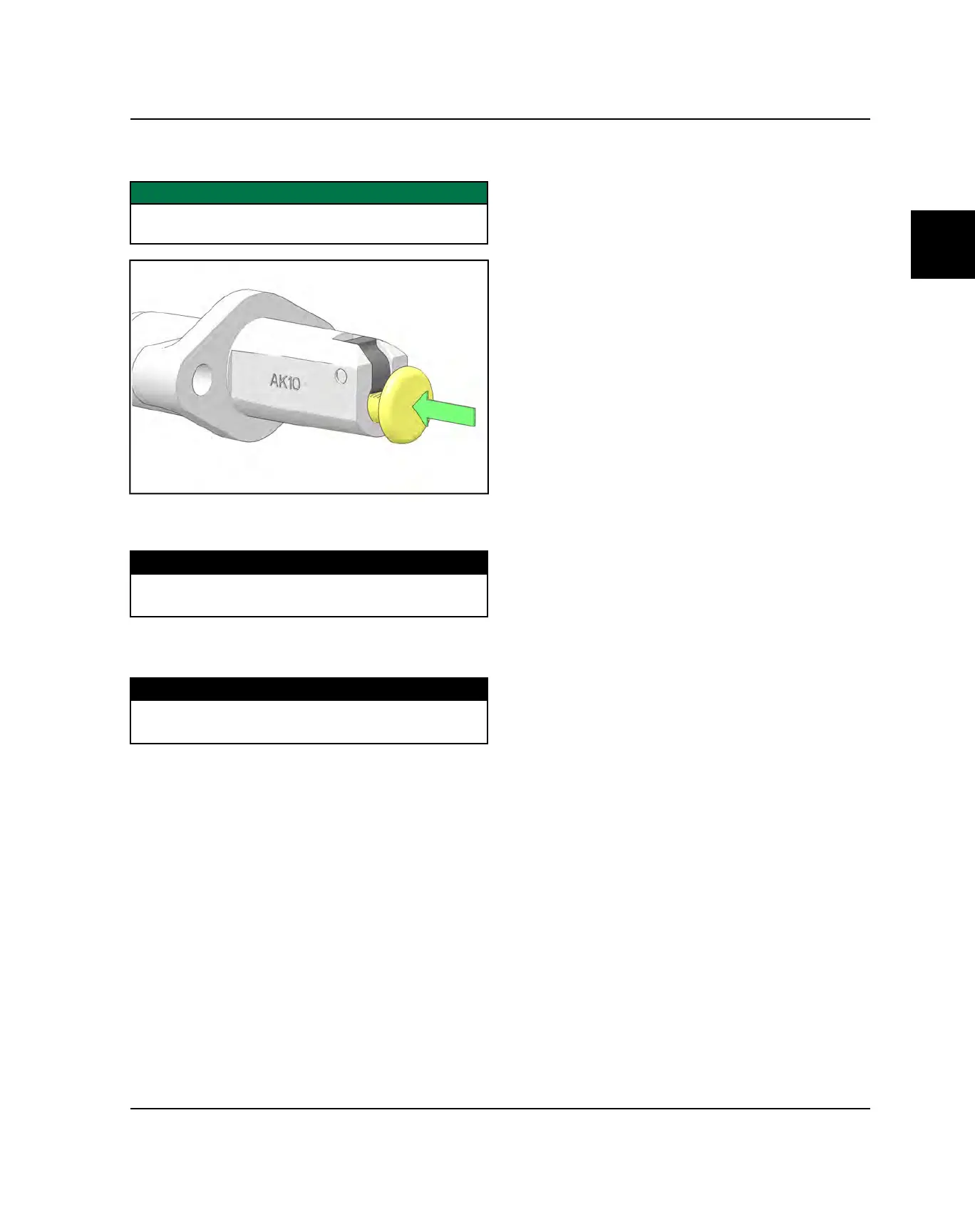

5. Retract the plunger all the way in and install into the
cylinder.
IMPORTANT
Ensure the plunger and spring are not installed when
installing the tensioner.
6. Install the two mounting bolts. Torque fasteners to
specification.
TORQUE
Tensioner Mounting Bolts:
7 ft-lbs (10 Nm)
7. Install the plunger bolt. Torque fastener to
specification.
TORQUE
Plunger Bolt:
15 ft-lbs (20 Nm)
8. Turn the engine over by hand to ensure proper chain
tension is applied.
MAINTENANCE
