CRANKSHAFT PTO SEAL
REPLACEMENT
Special Tool PU-52493 allows the replacement of the
engine crankshaft PTO seal without splitting the engine
case.
IMPORTANT
PU-52493 does NOT work with 2017 and older models.
REMOVAL
1. Remove the Inner PVT Cover. Refer to Inner PVT
Cover Service page 6.11.
2. Using a commercially available seal puller tool,
remove crankcase seal from crankcase.
IMPORTANT
Use care not to scratch the crankcase while removing
seal.
3. Inspect the crankcase and crankshaft surfaces for
any burrs or scratches that could damage the new
seal or prevent it from sealing properly.
INSTALLATION

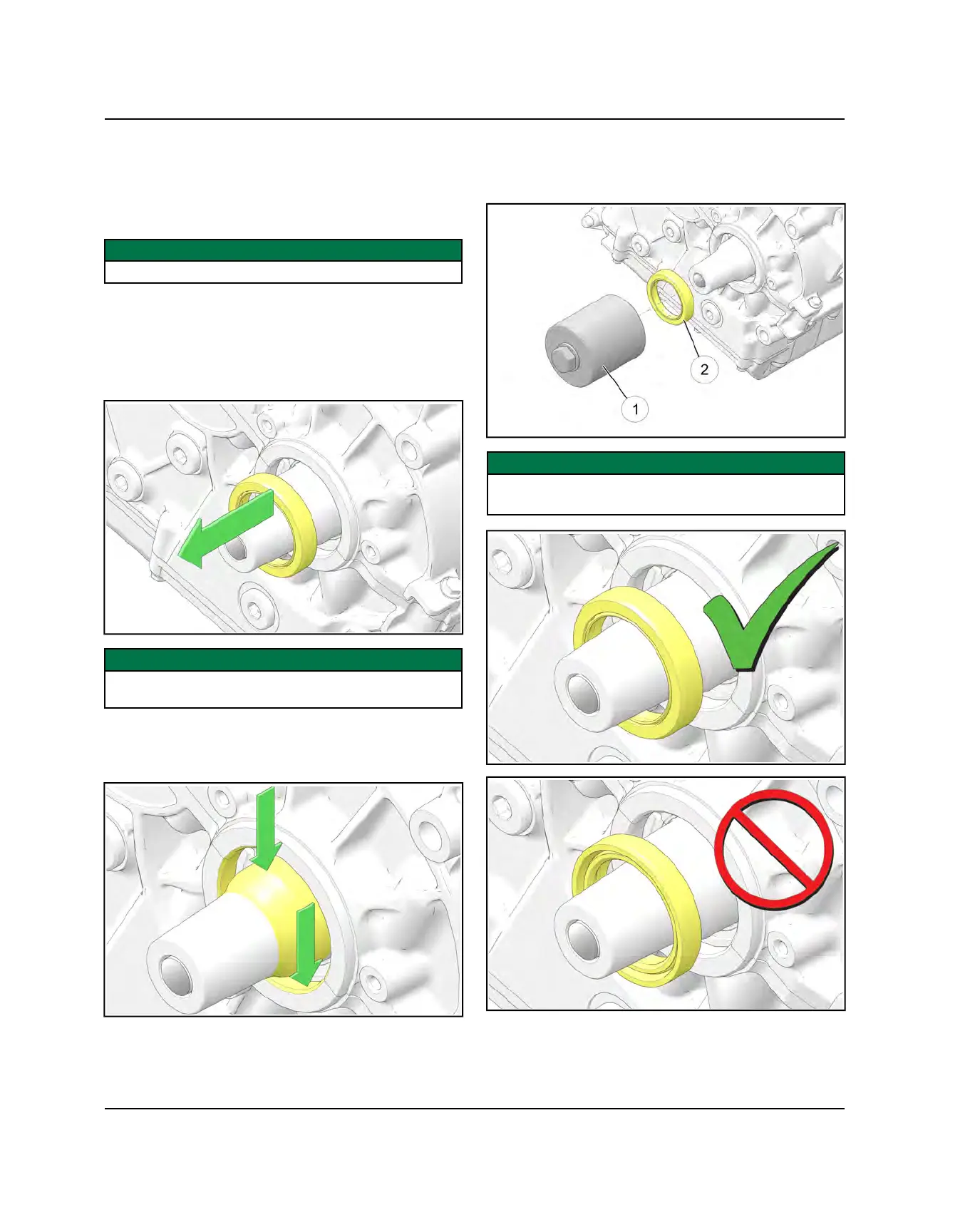

1. Install new seal
w
into crankcase. Thread the drive
bolt of special tool PU-52493
q
into the crankshaft.
IMPORTANT
The orientation of the seal is critical. Install the seal with
the flat side of the seal facing out as shown.
