ENGINE TORQUE SEQUENCES

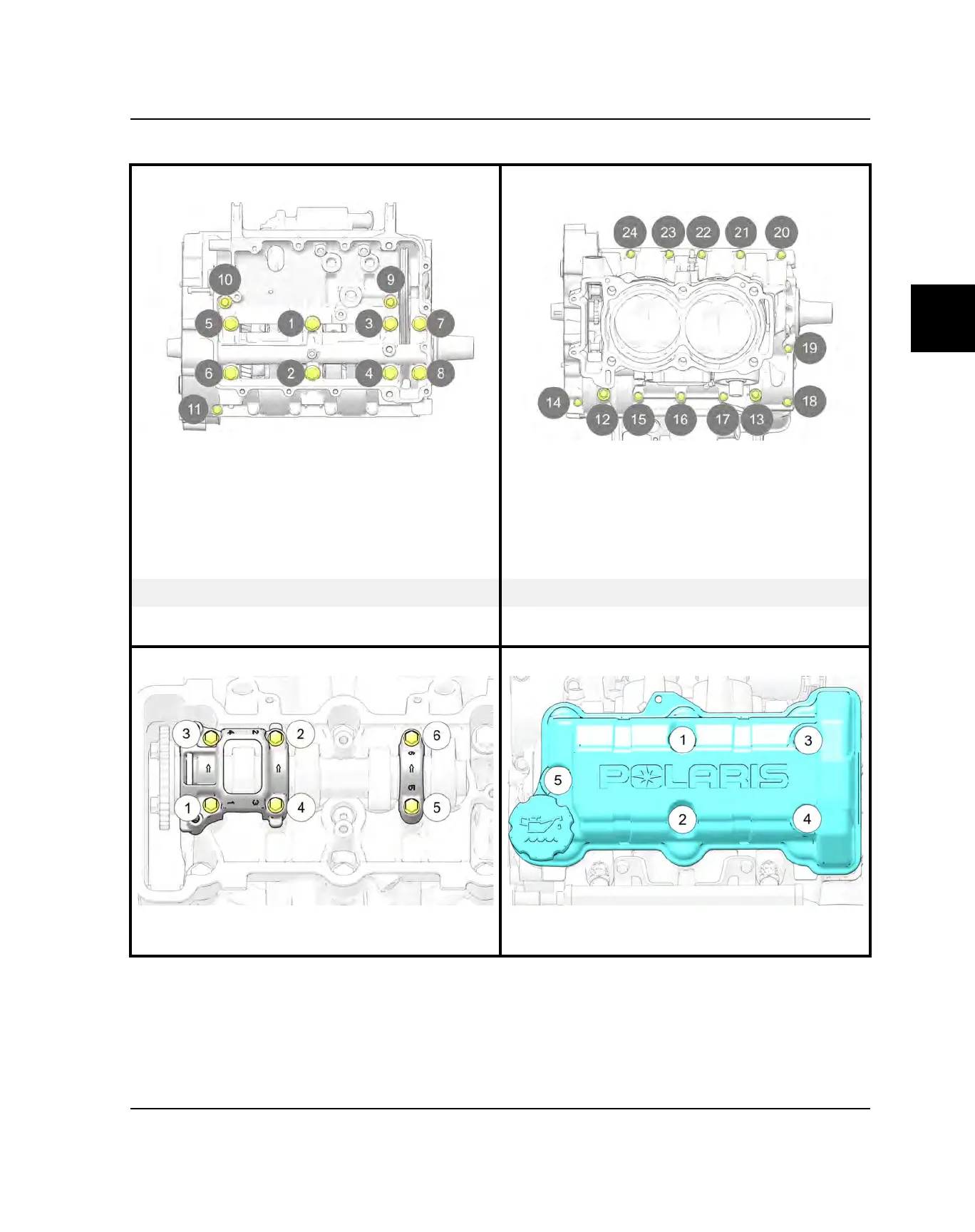

CRANKCASE - LOWER
CRANKCASE - UPPER
Start with #12
M10 Bolts:
Step 1: 9 ft-lb (12
Nm)
Step 2: 21 ft-lb (28
Nm)
Step 3: Tighten
additional 90°
M8 Bolts:
26 ft-lbs (35 Nm)
M8 Bolts:
26 ft-lbs (35 Nm)
M6 Bolts:
7 ft-lbs (10 Nm)
M6 Bolts:
9 ft-lbs (12 Nm)
CAM CARRIER
VALVE COVER
Camshaft Carrier Bolts
7 ft-lb (10 Nm)
Valve Cover Bolts
7 ft-lbs (10 Nm)
