4.22
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

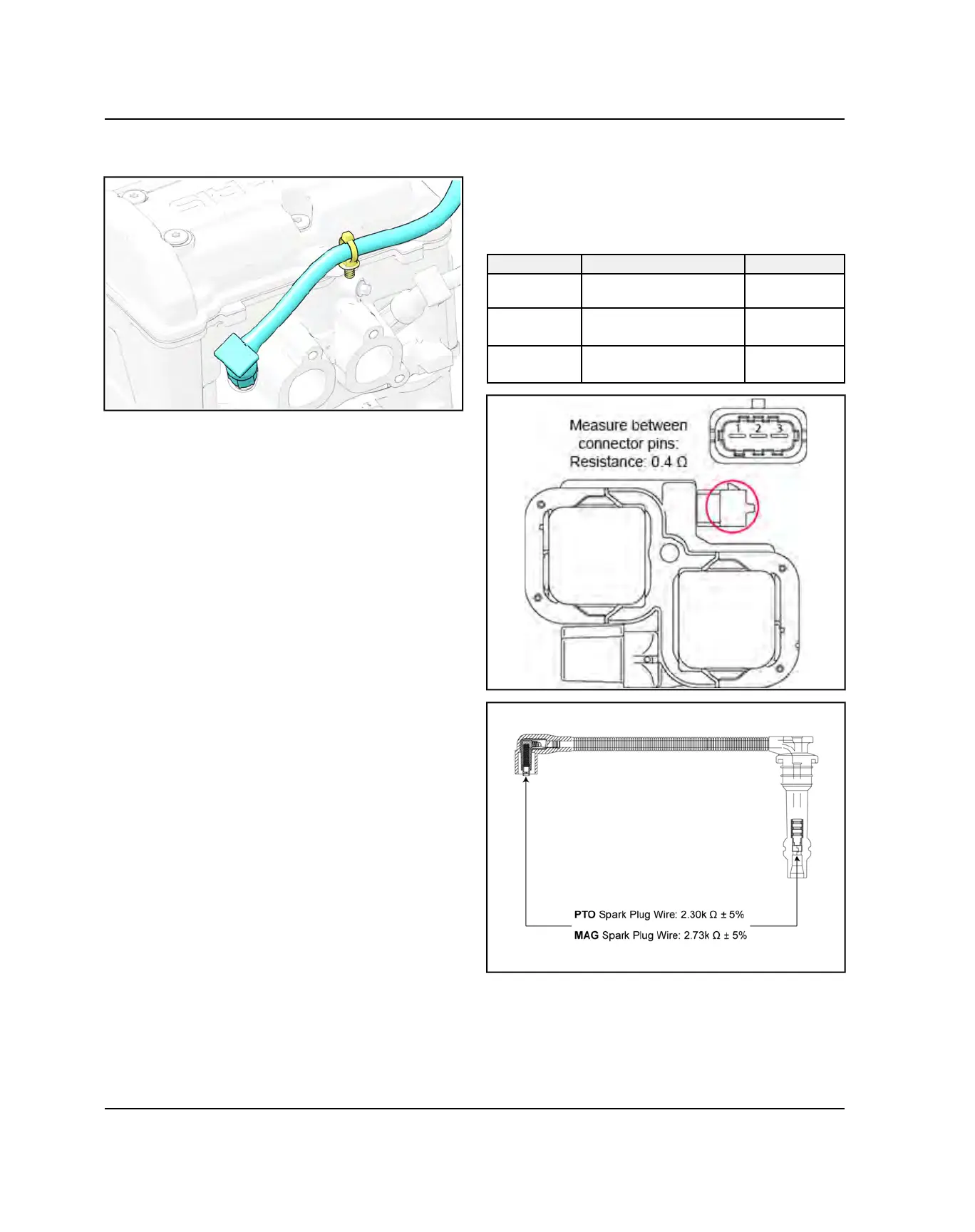

3. Connect the ignition coil retention clip to the valve
cover.
IGNITION SYSTEM TESTING
The ignition coil can be tested by using an ohm meter.
Use the following illustration and specification table to
test the ignition coil resistance.
IGNITION COIL RESISTANCE READINGS
TEST PIN CONNECTION RESISTANCE
Primary
Between 1 & 2
Between 2 & 3
0.4 Ω
Secondary
(PTO)
Between High Tension
Lead Caps
6.794k Ω ±
10%
Secondary
(MAG)
Between High Tension
Lead Caps
7.239k Ω ±
10%
ENGINE ELECTRICAL
