11.62
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

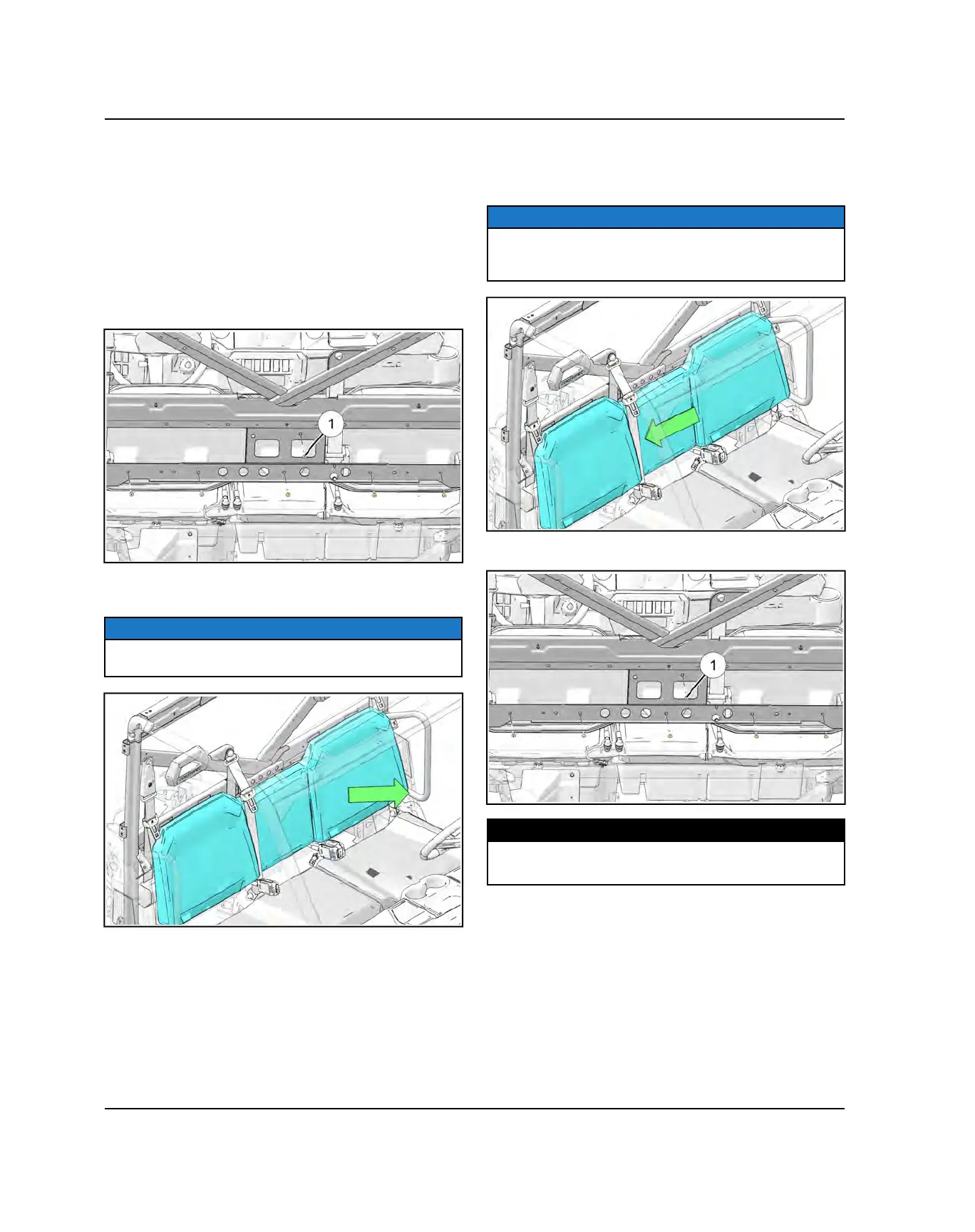

SEAT BACK SERVICE
REMOVAL
1. Remove the Cargo Box. Refer to Cargo Box Removal
page
2. Remove the ECU. Refer to ECU Replacement
page
3. Remove the Rear Close-Off Panel. Refer to Rear
Close-Off Panel Service page 11.43
4. Remove the (6) mounting screws
q
.
5. Remove the seat back from the vehicle by pulling
forward and towards the drivers side of the vehicle.
NOTICE
Center seat belt will need to be fully extended to gain
clearance to remove the seat back.
INSTALLATION
1. Slide seatback from the drivers side towards the
passenger side and line up with mounting holes.
NOTICE
When installing seat back, fully extend the center seat
belt and install the seat back between the seat belt and
the ROPS.
2. Install the (6) mounting screws
q
.
TORQUE
Passenger Seatback Screws:
18 inch-lbs (2 Nm)
3. Install the Rear Close-Off Panel. Refer to Rear Close-
Off Panel Service page 11.43
4. Install the ECU. Refer to ECU Replacement page
5. Install the Cargo Box. Refer to Cargo Box Installation
page
BODY / FRAME
