INTERIOR BODY SERVICE
UPPER DASH PANEL SERVICE

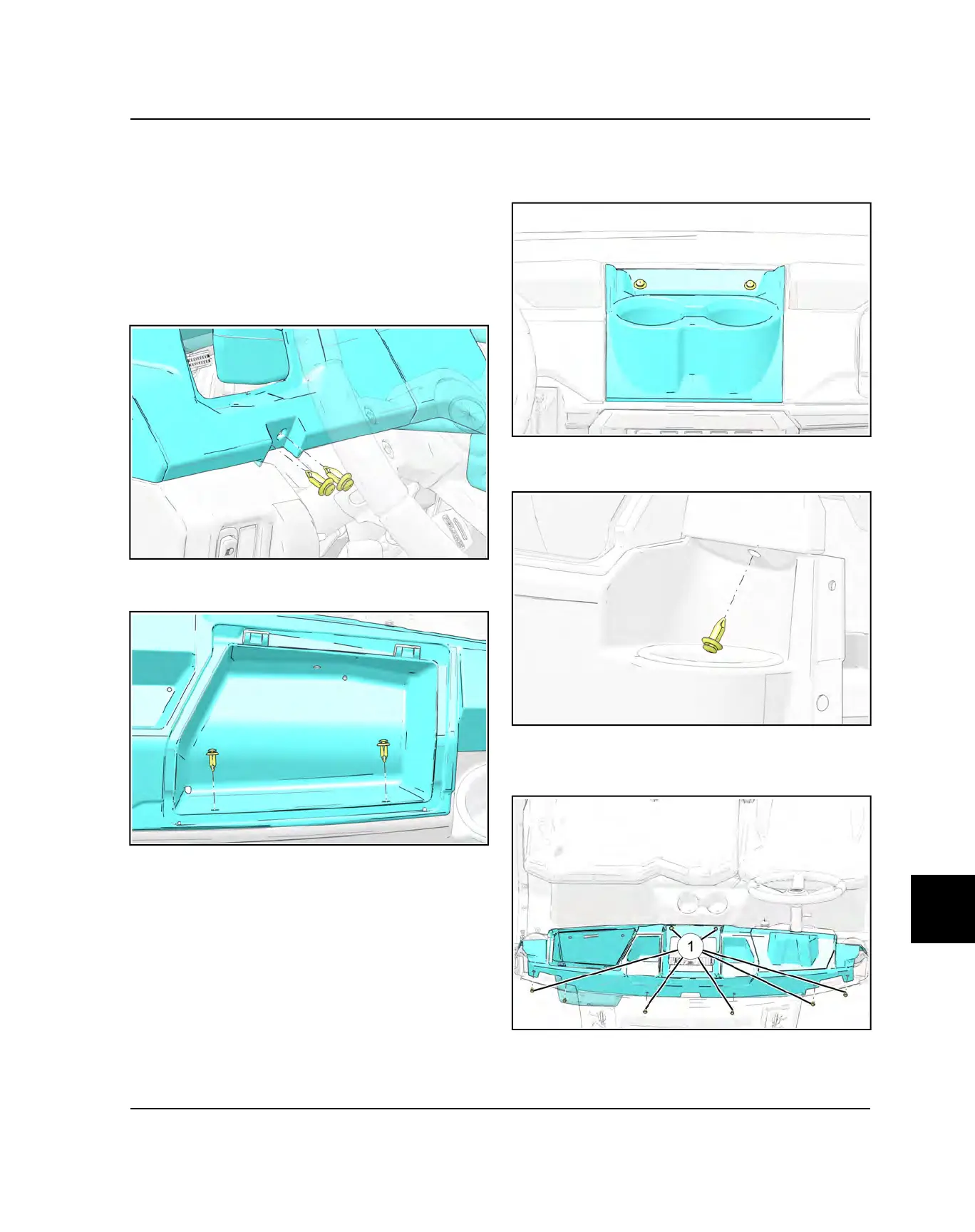

REMOVAL
1. Remove the front fenders. Refer to Front Fender
Service page 11.32.
2. Remove the instrument cluster. Refer to Instrument
Cluster Service page 12.23.
3. Remove the two push rivets on the upper dash panel
below the instrument cluster.
4. Open the glovebox and remove the two push rivets
inside.
5. Remove the two center trim push rivets securing the
center trim to the dash panel and remove the trim.
6. Remove the push rivet above the cup holders on the
driver and passenger sides.
7. Remove the remaining seven push rivets
q
securing
the dash panel to the vehicle. Lift straight up to
remove the panel.
