8
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
8.47

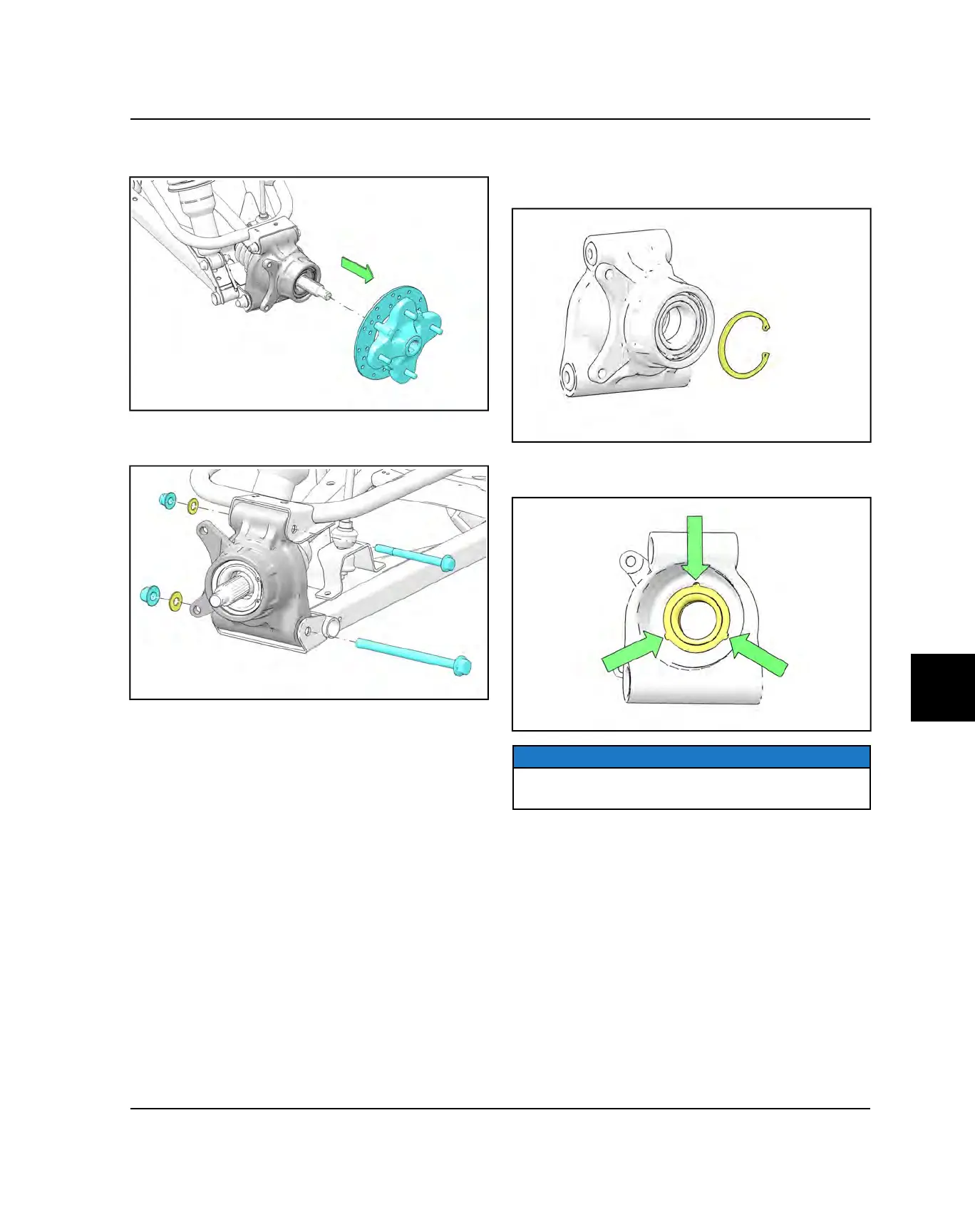

8. Slide the wheel hub out from the bearing carrier and
drive shaft.
9. Remove the upper and lower A-arm fasteners from
the bearing carrier.
10.Remove the bearing carrier. Inspect the bearing for
smoothness and side to side movement, replace as
needed.
REAR BEARING CARRIER BEARING
REPLACEMENT
1. Remove the retaining ring from the bearing carrier.
2. From the back side, using a press, push on the outer
bearing race as shown.
NOTICE
Once bearing is at bottom of casting, support casting on
outer edges so bearing can be removed.
3. Inspect bearing carrier housing for scratches, wear or
damage. Replace rear bearing carrier if damaged.
FINAL DRIVE
To Next Page
