REAR BEARING CARRIER SERVICE
REAR BEARING CARRIER INSPECTION
1. Elevate the rear of vehicle and safely support
machine under the frame area.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
3. If movement is detected, inspect wheel hub, castle
nut torque, bearing condition and upper and lower
ball joint wear.

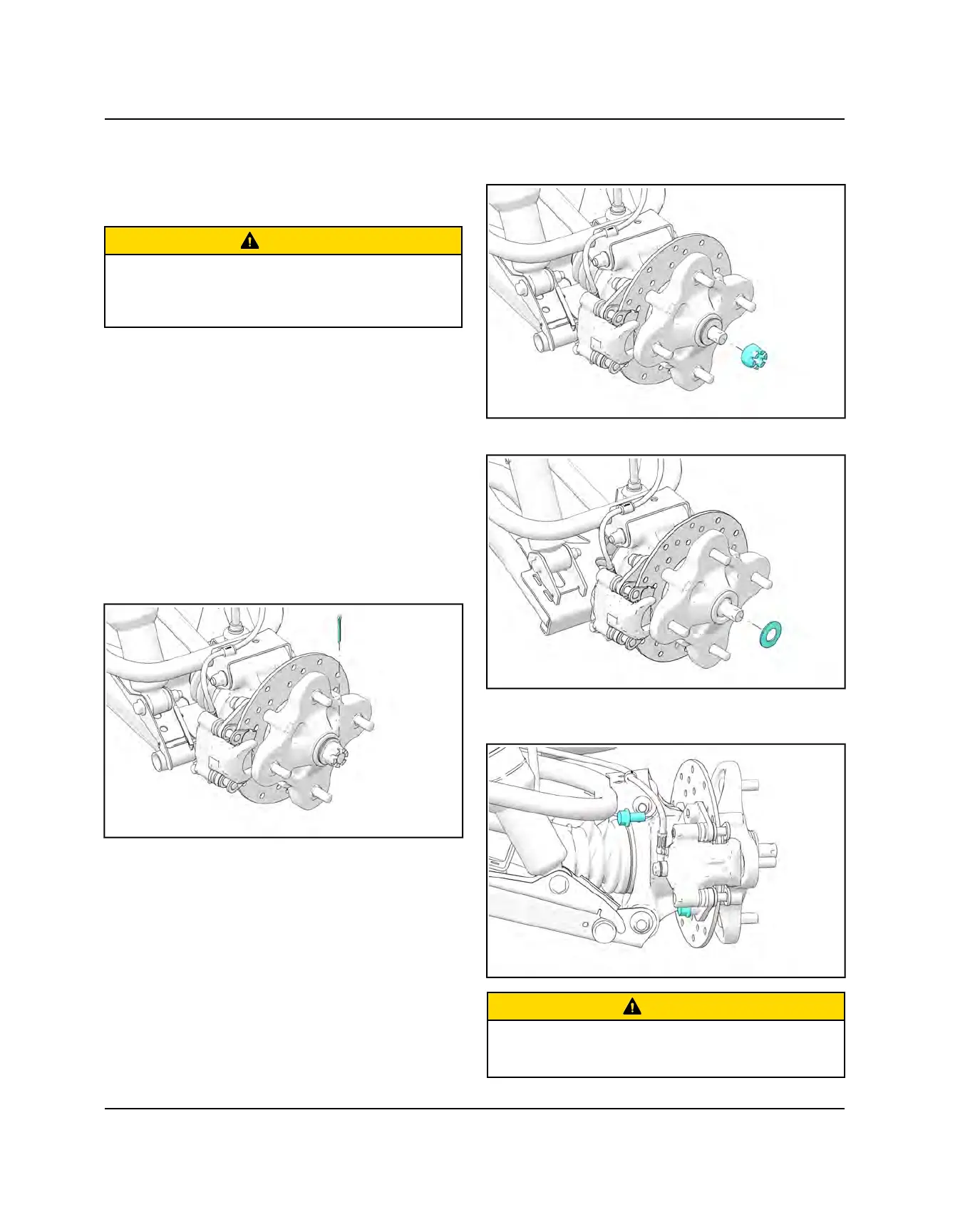

REAR BEARING CARRIER REMOVAL
1. Place the transmission in PARK.
2. Elevate the rear of the vehicle and safely support the
vehicle under the main frame area.
3. Remove wheel nuts, and wheel.
4. Remove the cotter pin.
5. Remove the castle nut.
6. Remove the washer.
7. Remove the two rear brake caliper mounting bolts
and remove the caliper from the bearing carrier.
CAUTION
Do not hang the caliper by the brake line. Use
mechanics wire to hang the caliper to prevent possible
damage to the brake line.
