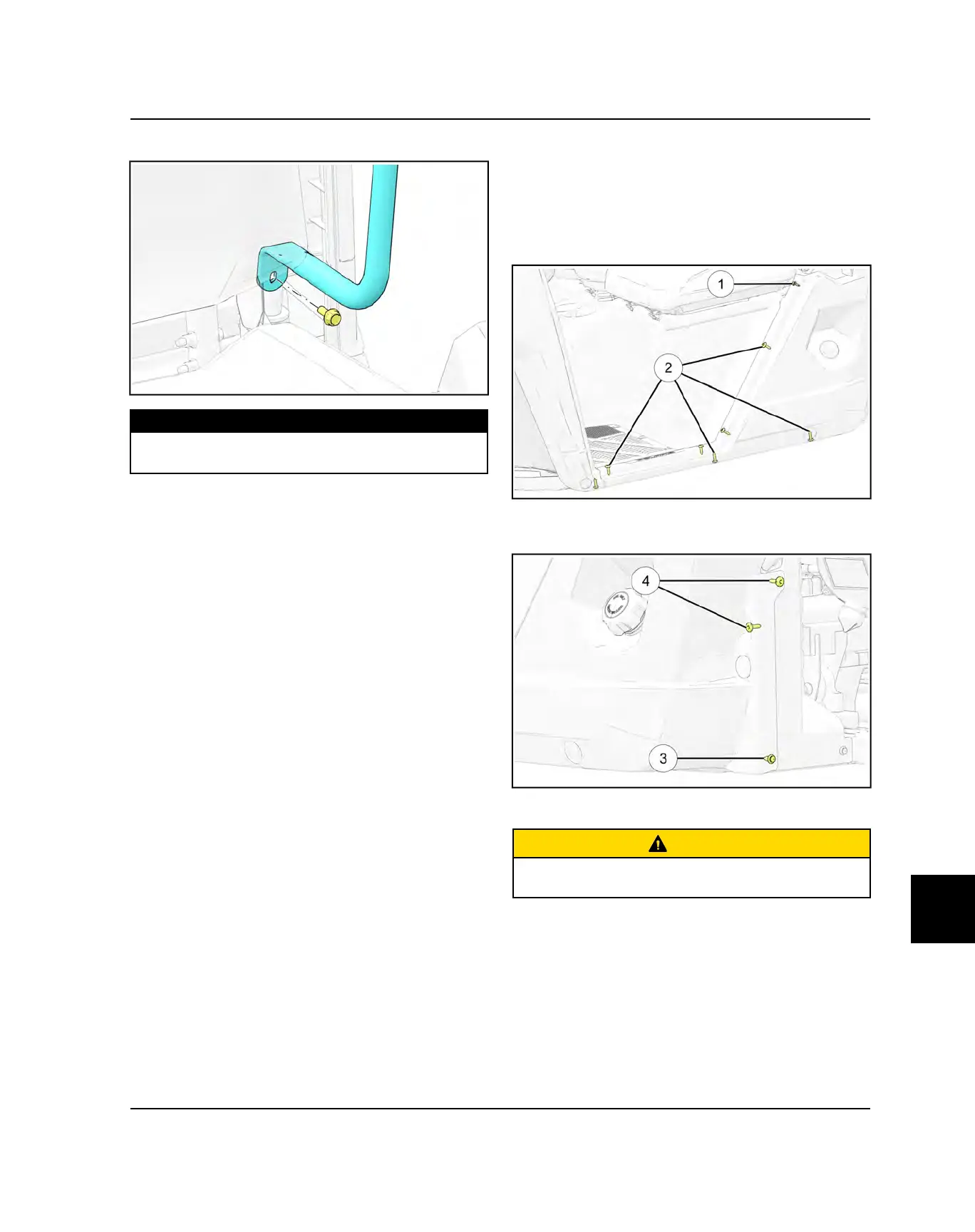

6. Install the lower bolster fastener.
TORQUE
Bolster Fasteners:
10 ft-lbs (14 Nm)
7. Install the side bezel cover. Refer to Side Bezel Cover
Service page 11.38.
ROCKER PANEL SERVICE
REMOVAL
1. Remove the side bezel. Refer to Side Bezel Cover
Service page 11.38.
2. Remove the push rivet
q
and seven fasteners
w
securing the rocker panel to the vehicle.
3. Remove the push rivet
e
and two fasteners
r
securing the rear of the rocker panel to the vehicle.
4. DRIVER’S SIDE ONLY Remove the fuel cap.
CAUTION
Cover the fuel filler neck with a clean shop rag to
prevent debris from entering the fuel tank.
