9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.15

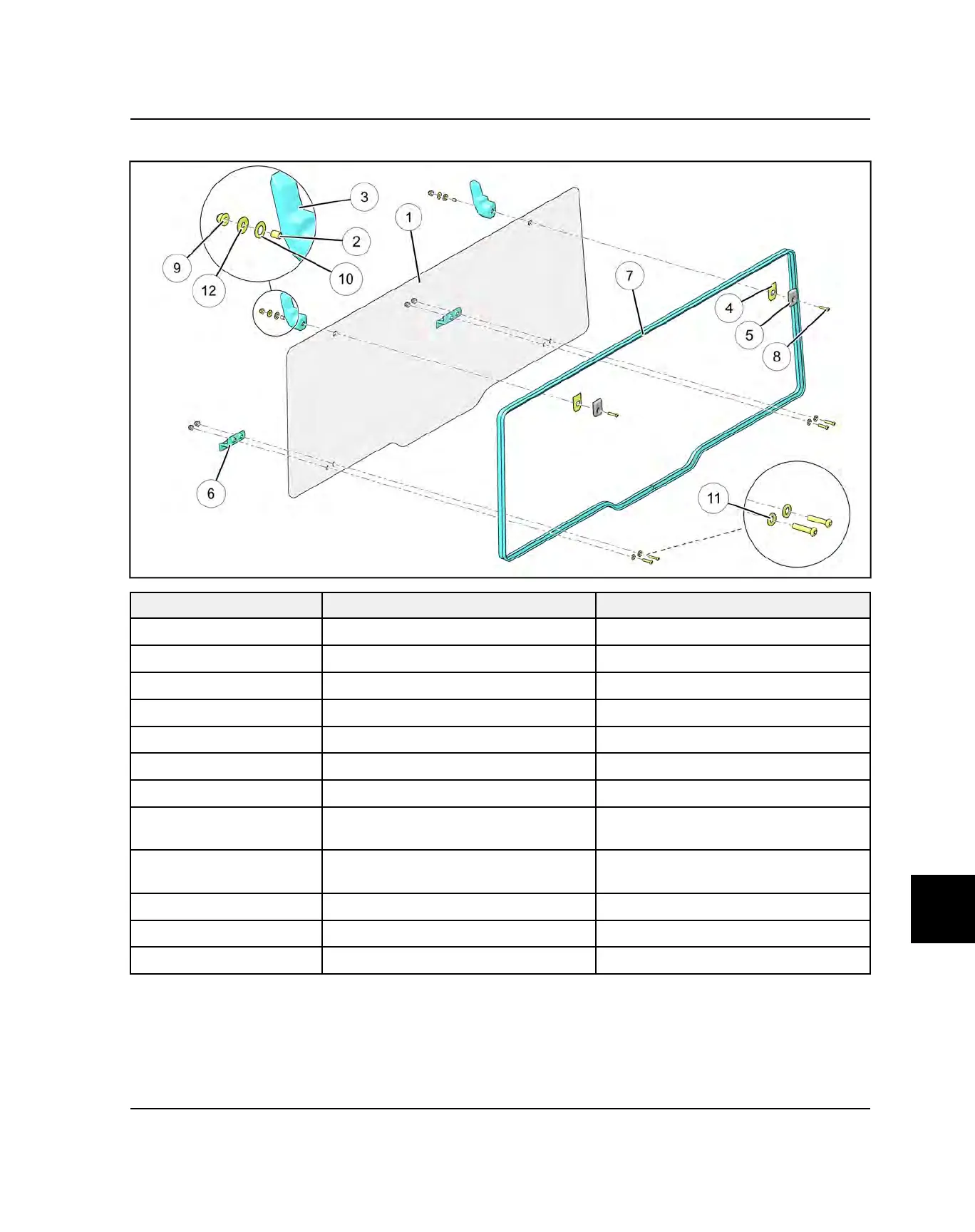

REAR PANEL ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
REAR PANEL GLASS
NA
w
SLEEVE
NA
e
HANDLE, REAR WINDSHIELD
NA
r
SHIM
NA
t
WINDSHIELD BASE
NA
y
MOUNT-REAR WINDSHIELD
NA
u
SEAL-REAR GLASS
NA
i
REAR GLASS FASTENER
Torque until lock and ride clamps are
fully seated
o
REAR GLASS FASTENER NUT
Torque until lock and ride clamps are
fully seated
a
WASHER
NA
s
WASHER
NA
d
WASHER
NA
BODY / FRAME
