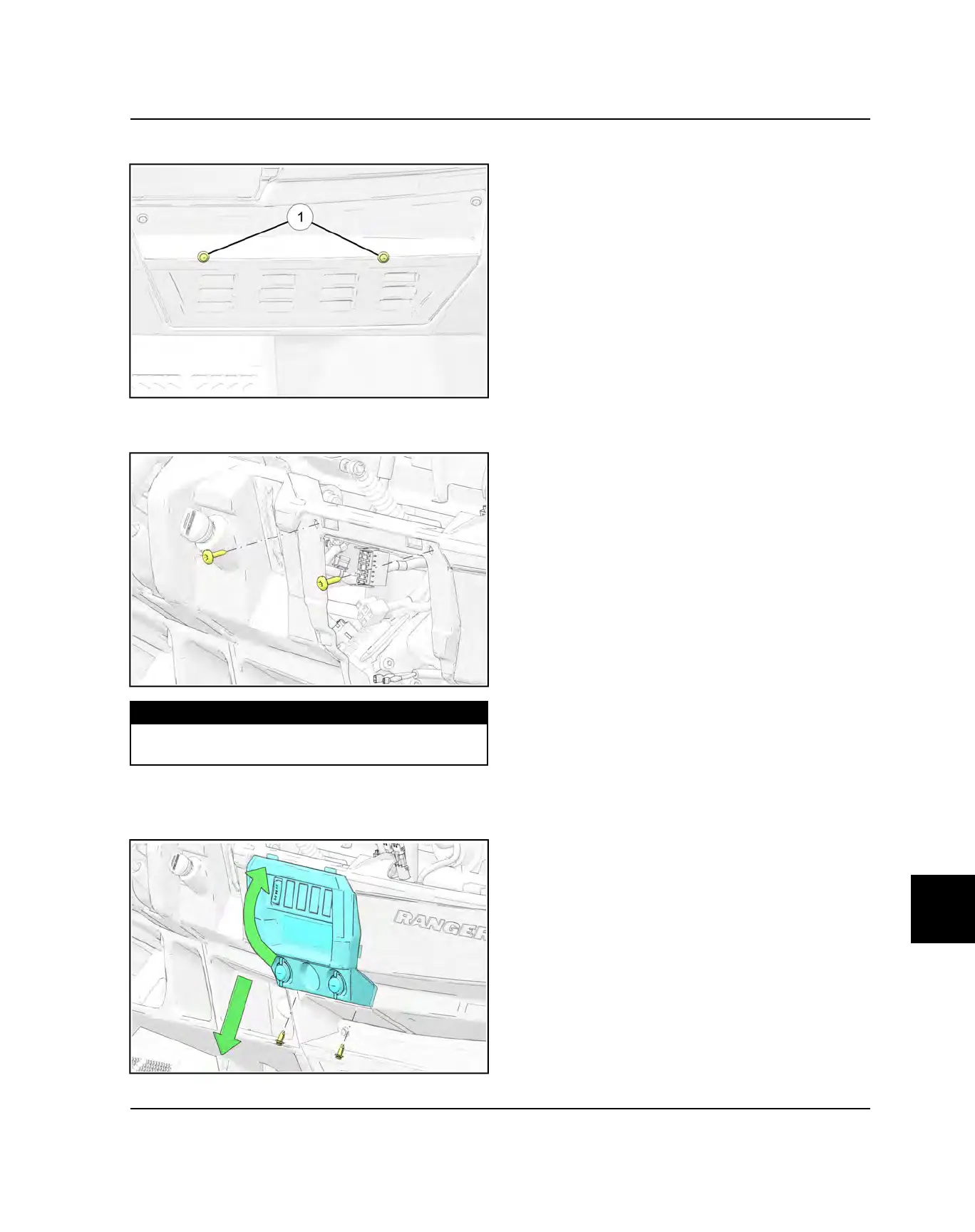

3. Install the two push rivets
q
in the dash storage bin.
4. Install the two fasteners behind the center trim panel
and torque to specification.
TORQUE
Dash Fasteners:
42 in-lbs (5 Nm)
5. Install the center trim panel and engage the upper
retainers. Plug in all electrical connectors and rotate
to align the lower rivet holes.
6. Install the two push rivets to secure the center trim
panel to the lower dash.
7. Install the upper dash panel. Refer to Upper Dash
Panel Service page 11.57.
