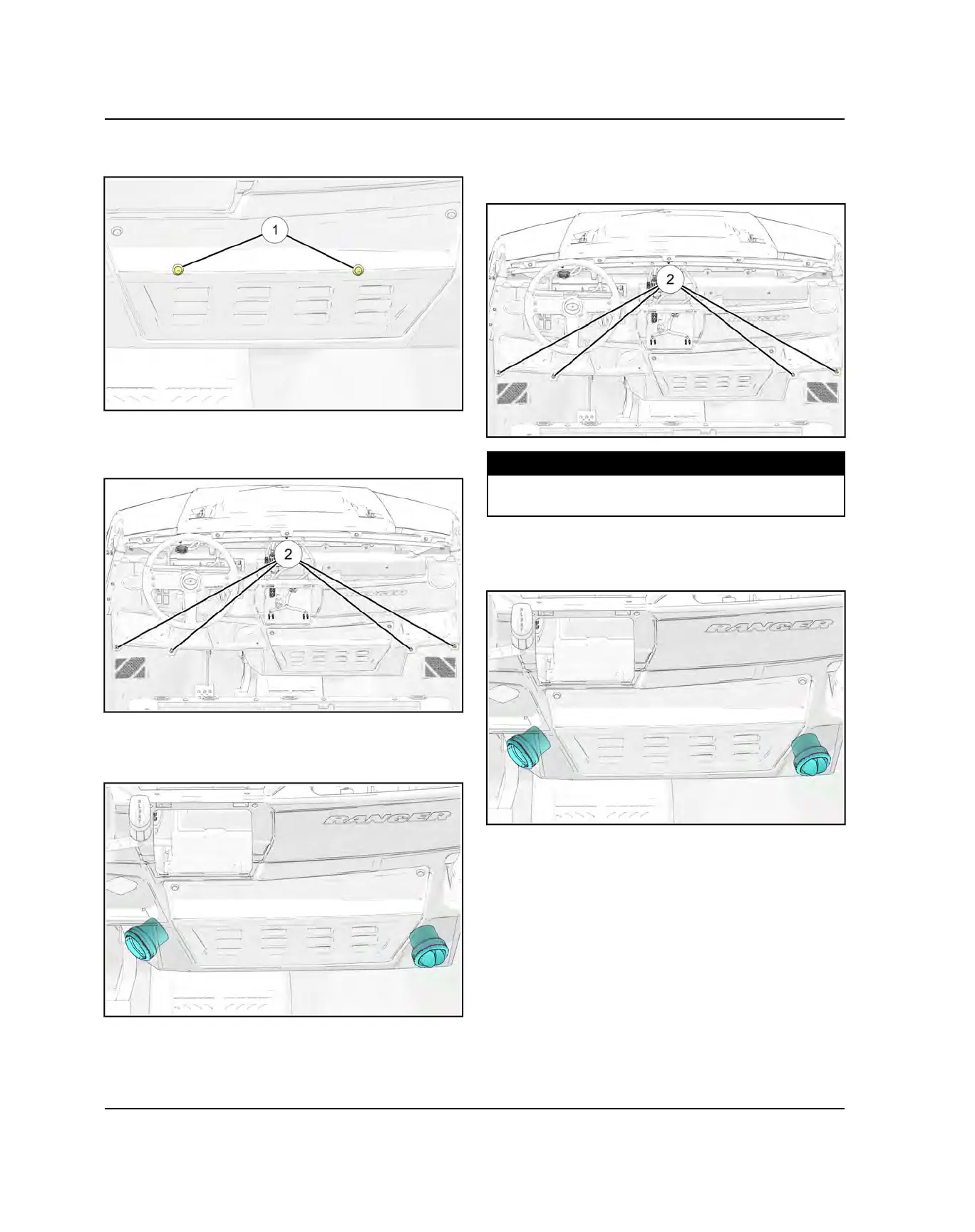

5. Remove the two push rivets
q
in the dash storage
bin.
6. Remove the four lower dash panel fasteners
w
and
pull the lower dash panel out and around the steering
column to remove.
7. WINTER PREP MODELS: Cut the zip ties securing
the two lower dash panel ducts before removing the
dash panel.
INSTALLATION
1. Install the lower dash panel and four lower dash
panel fasteners
w
. Torque to specification.
TORQUE
Dash Screws:
22 in-lbs (2.5 Nm)
2. WINTER PREP MODELS: Install the two lower dash
panel ducts and secure to the ducting hoses before
securing the dash panel.
