5. Raise the engine mount until enough clearance is
gained to remove the isolator from the vehicle.
INSTALLATION

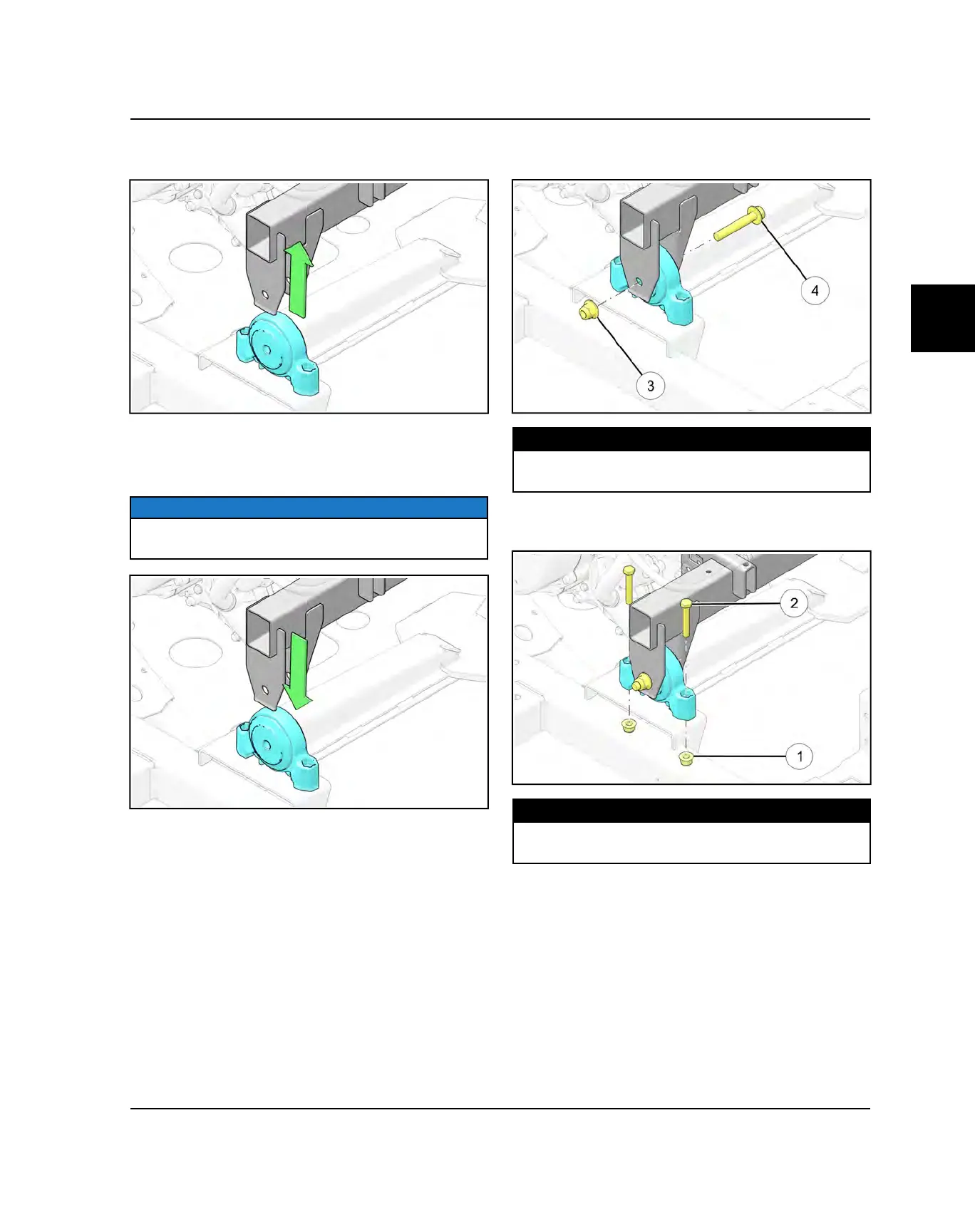

1. Install the isolator and lower the engine mount onto
the isolator until the mounting holes line up.
NOTICE
Continue to support the weight of the engine when
installing the isolator.
2. Install the isolator fastener
r
and nut
e
. Torque to
specification.
TORQUE
Engine Isolator Fastener:
40 ft-lbs (54 Nm)
3. Install the fasteners
w
and nuts
q
to secure the
isolator to the frame. Torque to specification.
TORQUE
Engine Isolator Fastener:
22 ft-lbs (30 Nm)
4. Remove the lift or jack supporting the weight of the
engine.
5. Install the skid plate. Refer to Skid Plate Service page
11.35.
