6.24
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

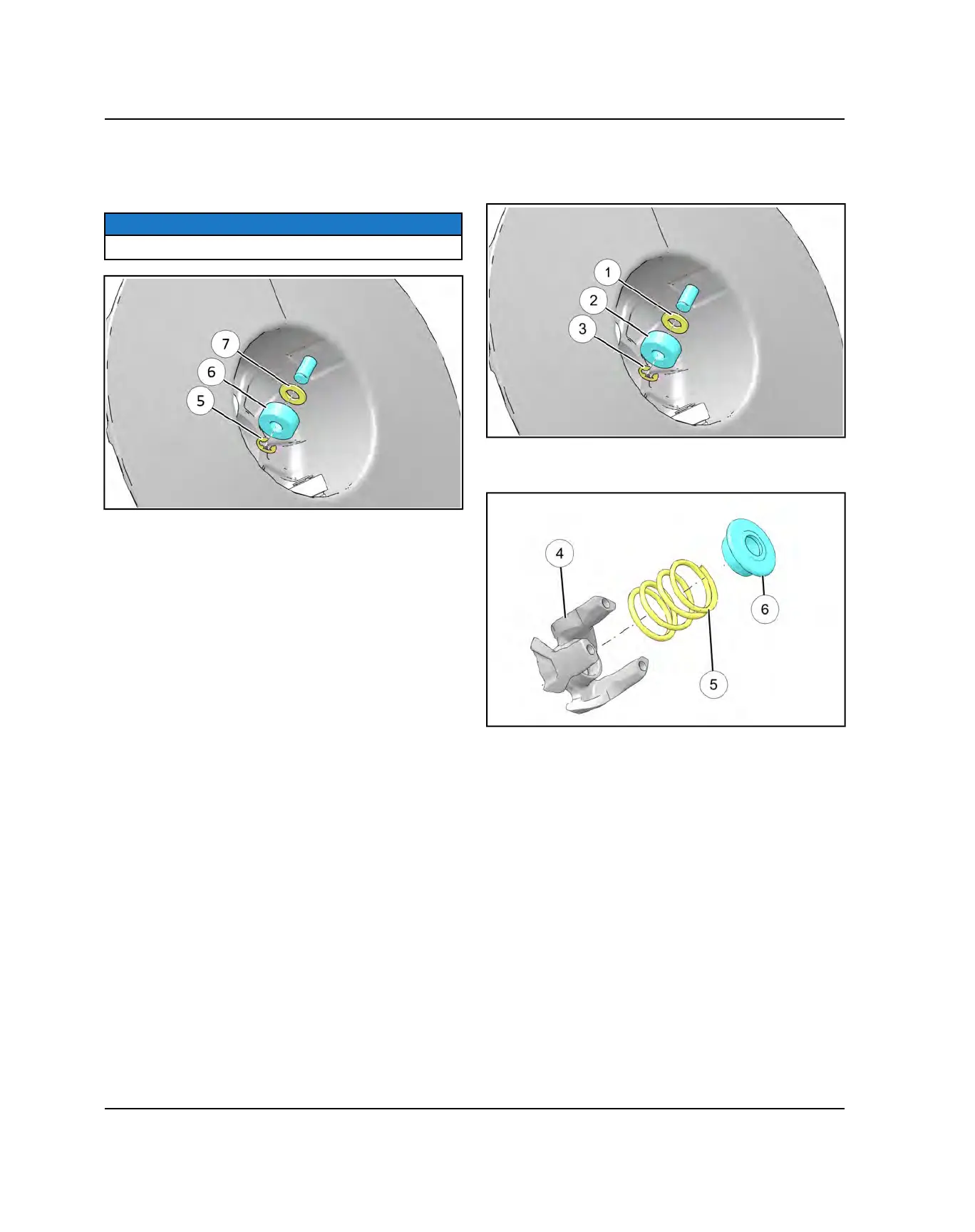

5. Inspect roller for play and wear or rough spots by
rotating it. If excessive wear, rough spots, or play
exists, remove the E-clip
t
, Roller
y
, and Washer
u
from sheave. Replace as necessary.
NOTICE
Roller pin is not serviceable.
6. Inspect the sheaves for excessive wear or damage.
Replace if necessary.
REASSEMBLY
1. Re-install washer
q
, roller
w
, and e-clip
e
Ensure e-
clip is fully seated and roller rotates freely.
2. Install clutch spring
t
and clutch spring cap
y
on the
helix
r
. Ensure the clutch spring is fully seated.
PVT SYSTEM
