8
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
8.13

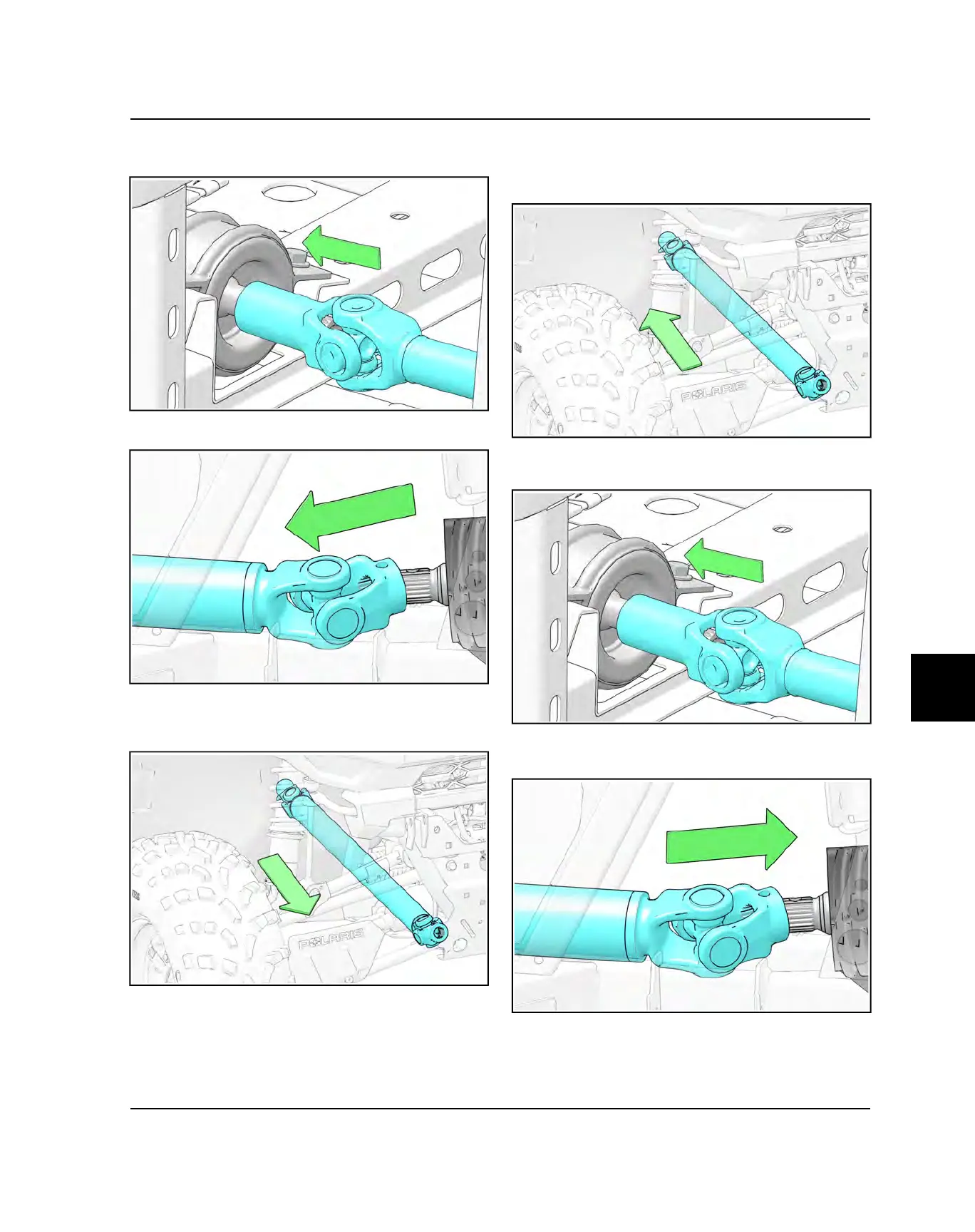

5. Slide the prop shaft all the way back on the prop shaft
carrier.
6. Rotate the prop shaft off of the front differential.
7. Slide the propshaft off the rear splines and carefully
guide the prop shaft out from the right front of the
vehicle.
INSTALLATION
1. Carefully guide the prop shaft through the right front
of the vehicle and align with the carrier.
2. Slide the prop shaft back towards the prop shaft
carrier.
3. Rotate the prop shaft onto the front differential and
align the pin hole.
FINAL DRIVE
To Next Page
