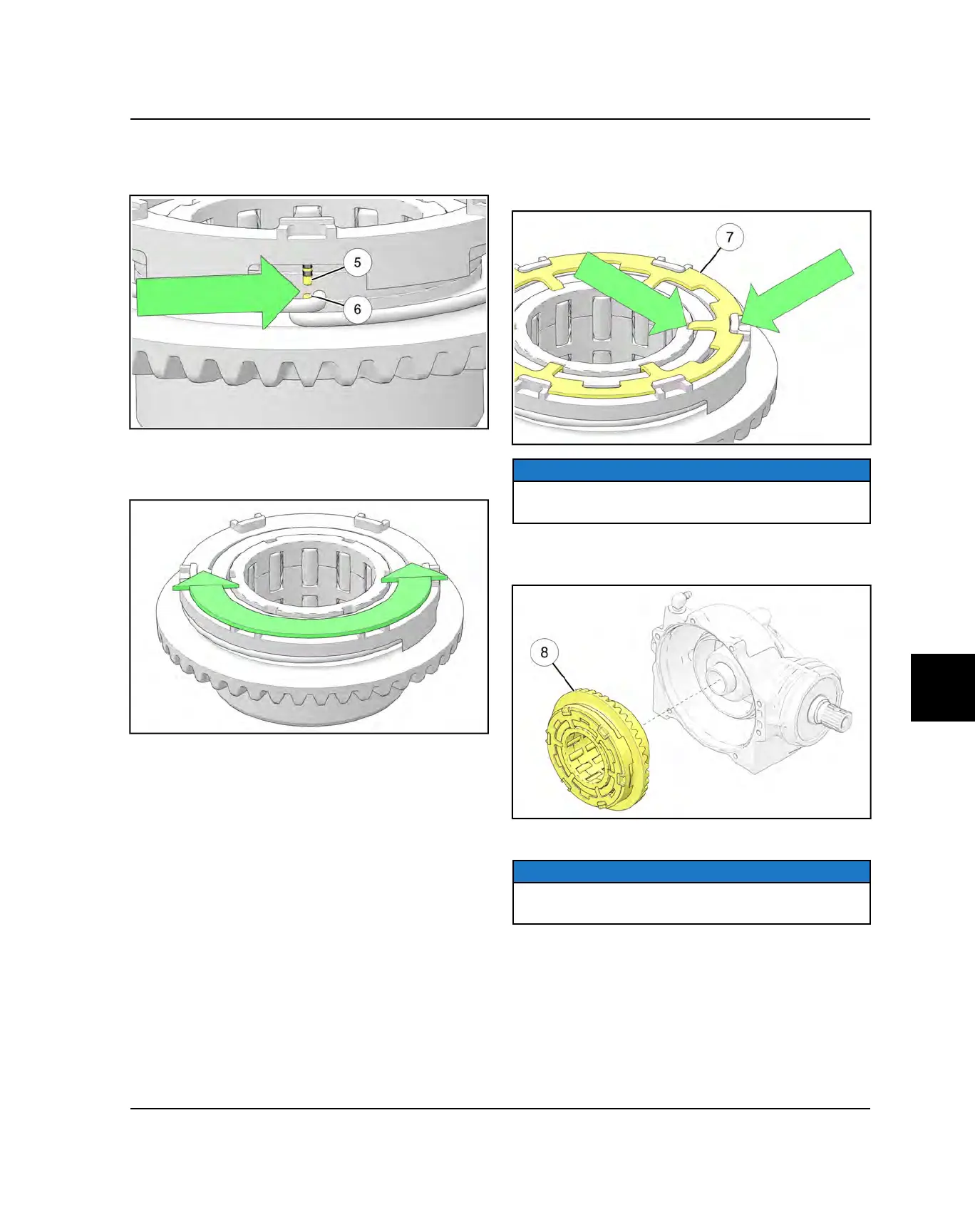

7. Align spring retainer dowel pin
t
with ring gear dowel
pin
y
and install the retainer on top of the torsion
spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
9. Install armature plate
u
. Be sure all of the armature
plate tabs are fully engaged into the roll cage
assembly and that it is resting properly on the torsion
spring retainer.
NOTICE
Verify armature plate tabs are in the roll cage slots and
that it rests properly on the spring retainer.
10.Carefully install the ring gear and roll cage assembly
i
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTICE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
