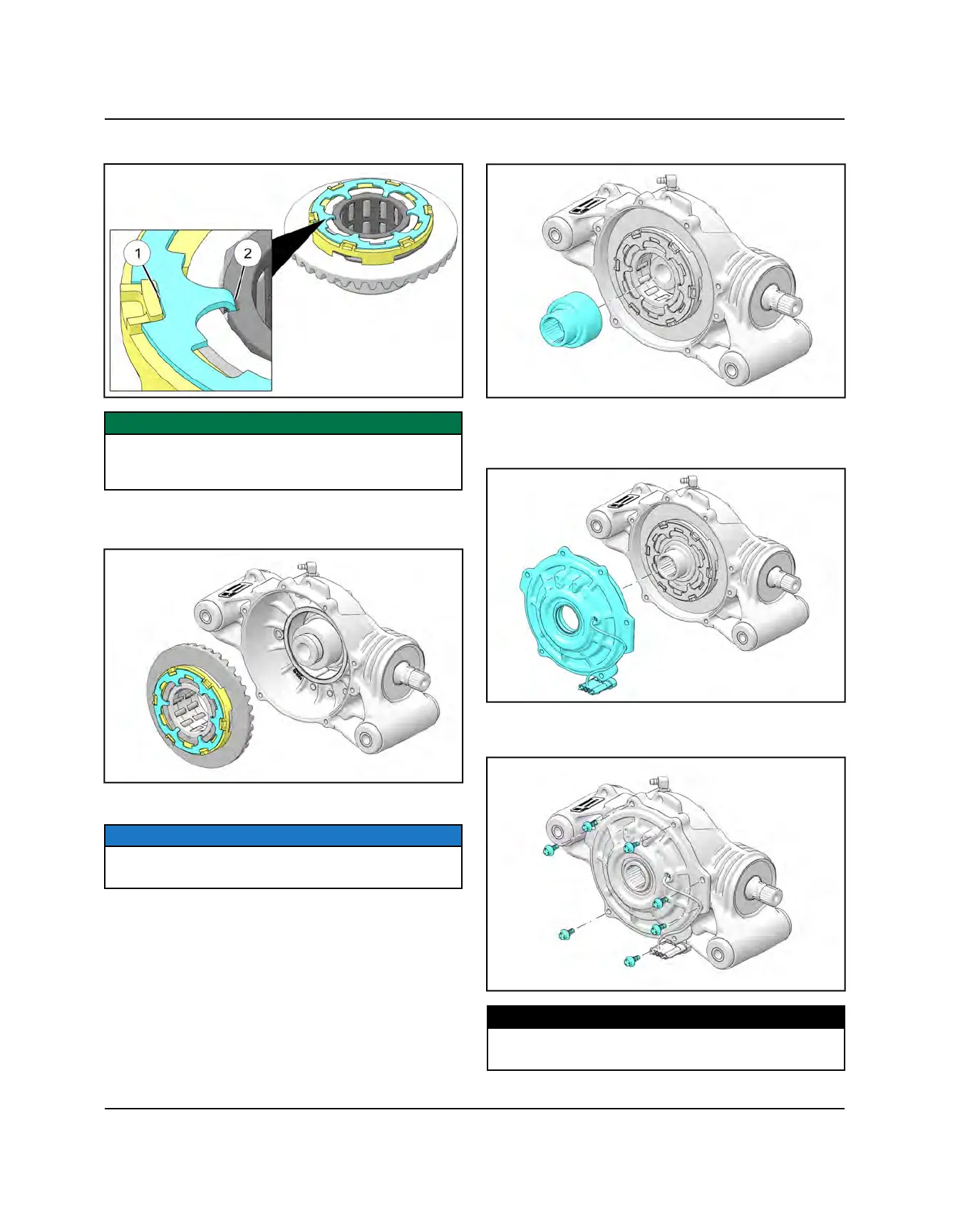

12.Install armature plate.
IMPORTANT
Verify the armature plate is resting within the tabs on
the spring retainer
q
and that the armature plate tabs
fully engage in the roller cage notch
w
.
13.Carefully install the ring gear and roll cage assembly
into the gearcase housing.
14.Install a new O-ring on the cover plate assembly.
NOTICE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
15.Install the LH output hub assembly.
16.Install the output cover assembly onto the gearcase
housing. Take care not to damage the new cover
plate seal while installing the output hub.
17.Install the seven cover plate screws and torque to
specification.
TORQUE
Front Gearcase Cover Plate Screws:
9 ft-lbs (12 N·m)
FINAL DRIVE
To Next Page
