9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.13

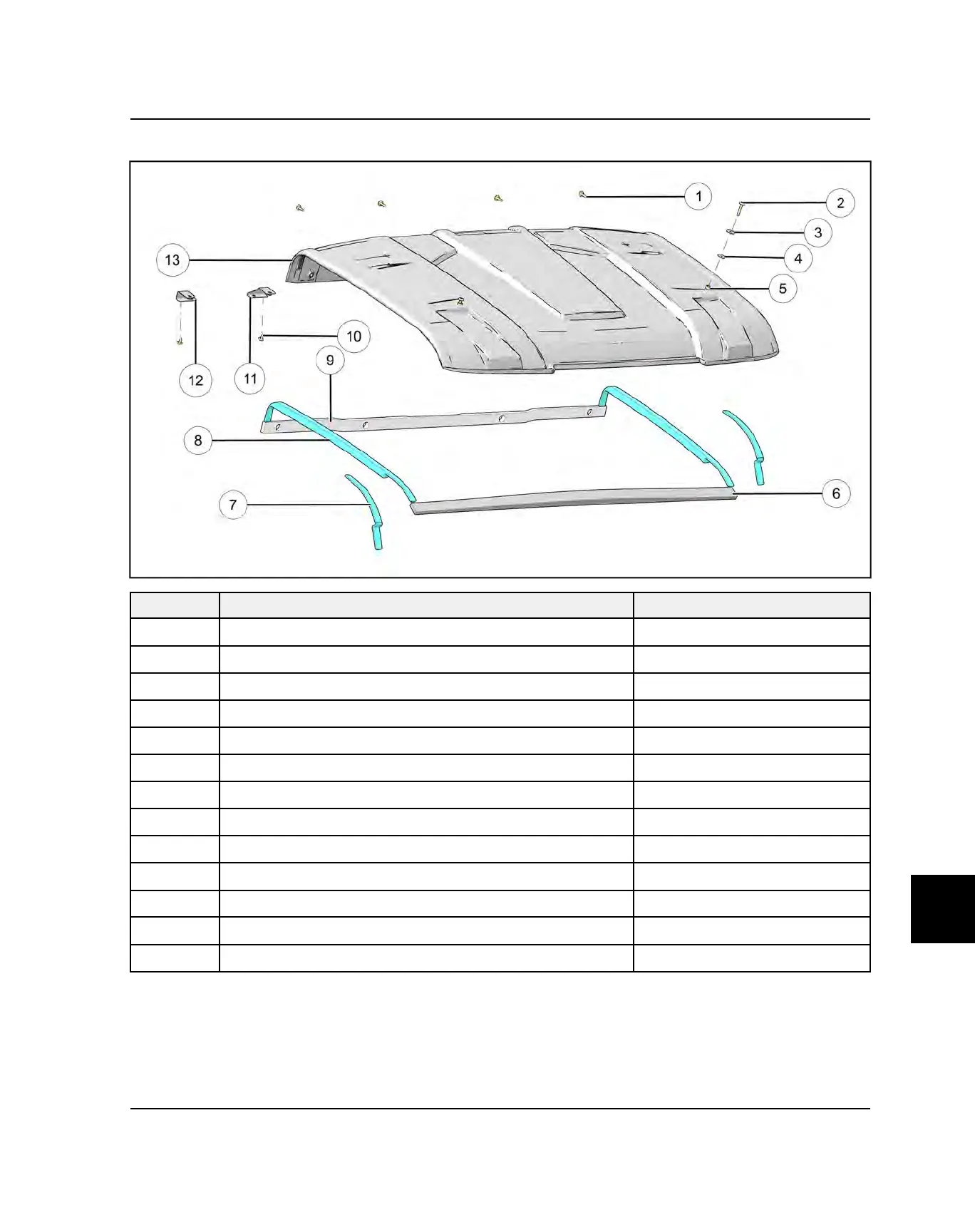

ROOF ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Roof Fastener: M6 x 1.0 x 25
42 in-lbs (5 Nm)
w
Roof Fastener: M6 x 1.0 x 40
42 in-lbs (5 Nm)
e
Rubber Washer NA
r
Washer NA
t
Spacer
NA
y
Front Roof Seal NA
u
A-Pillar Seal NA
i
Side Roof Seal NA
o
Rear Roof Seal NA
a
Roof Bracket Fastener: M6 x 1.0 x 15
42 in-lbs (5 Nm)
s
Driver Roof Bracket NA
d
Passenger Roof Bracket
NA
f
Roof Panel NA
BODY / FRAME
