9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.17

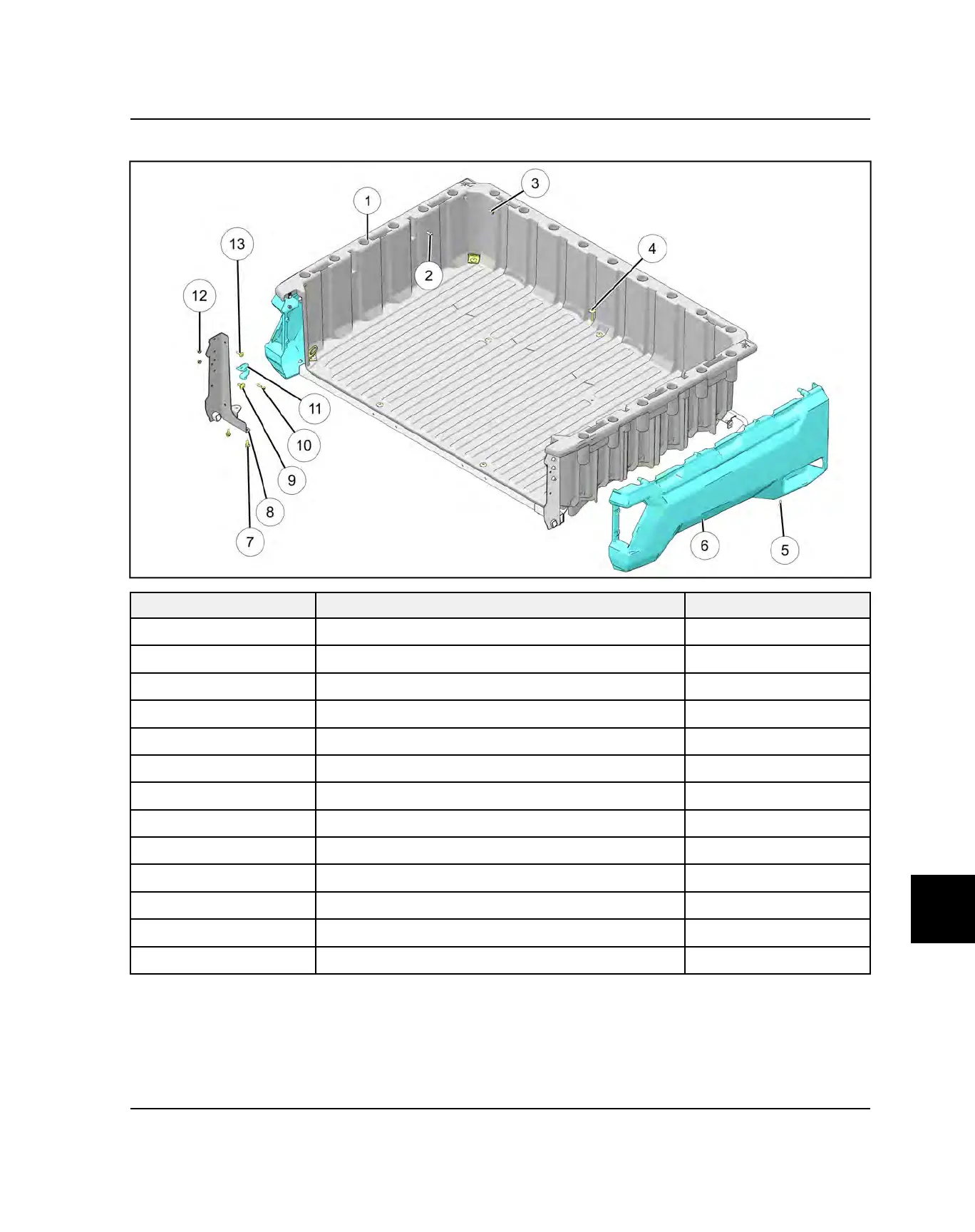

CARGO BOX ASSEMBLY
REF
DESCRIPTION TORQUE
q
CARGO BOX ASSEMBLY
NA
w
INNER CARGO BOX FASTENER 14X0.75 8 in lbs (1 Nm)
e
INNER CARGO BOX FASTENER 1/4X2 8 in lbs (1 Nm)
r
INNER CARGO BOX FASTENER 42 in-lbs (5 Nm)
t
OUTER CARGO BOX PANEL FASTENER 8 in lbs (1 Nm)
y
CARGO BOX OUTER PANEL
NA
u
LOWER TAILGATE SUPPORT FASTENER M8X1.25 10 ft lbs (14 Nm)
i
TAILGATE SUPPORT BRACKET
NA
o
TAILGATE SUPPORT FASTENER M6x1.0 42 in-lbs (5 Nm)
a
TAILGATE LATCH FASTENER 7 ft lbs (9 Nm)
s
TAILGATE LATCH
NA
d
TAILGATE LATCH FASTENER NUT 7 ft lbs (9 Nm)
f
TAILGATE SUPPORT FASTENER M6x1.0 42 in-lbs (5 Nm)
BODY / FRAME
