9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.33

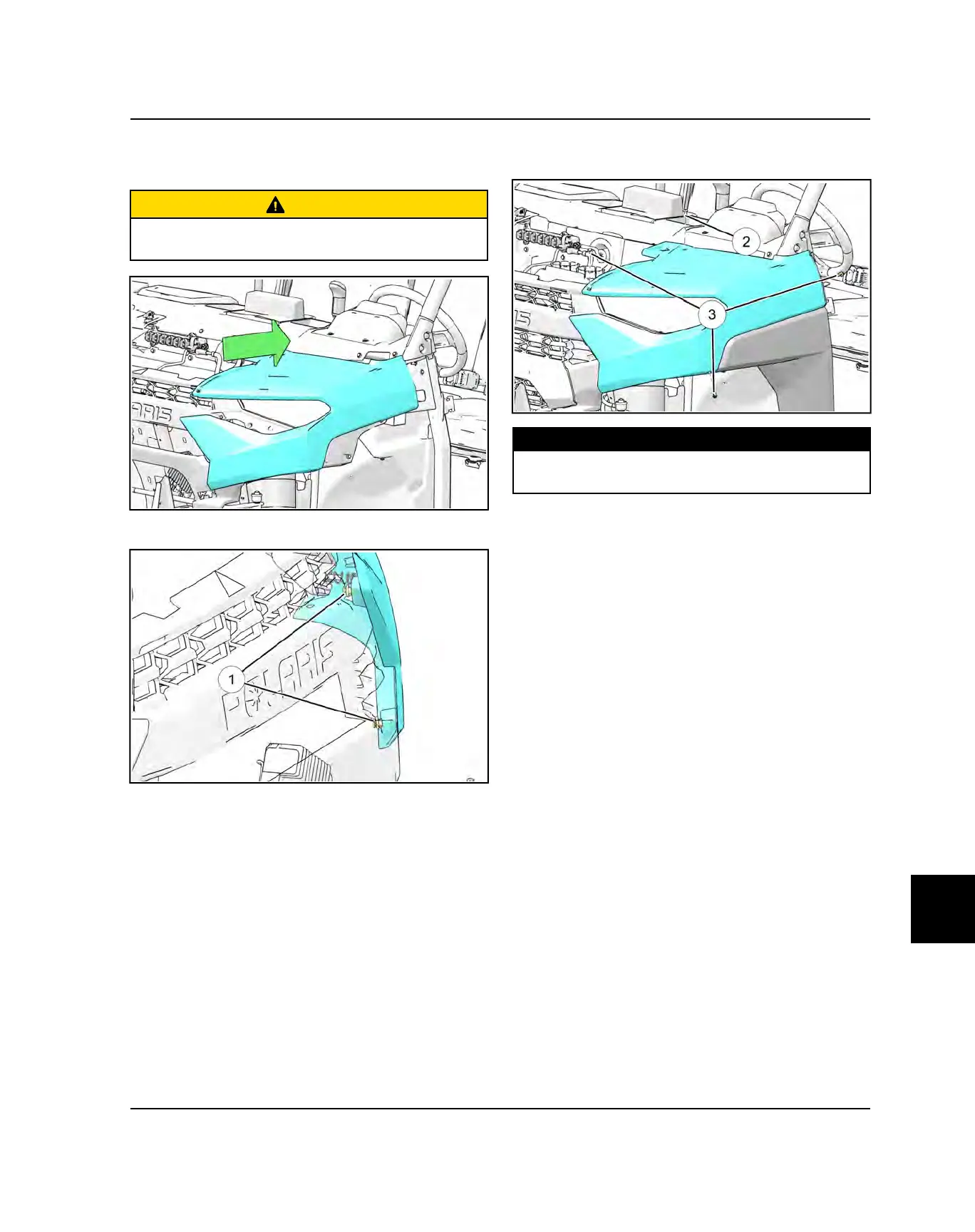

UPPER FENDER INSTALLATION
1. Install the fender straight on as shown.
CAUTION
Ensure all alignment clips on the back of the fender are
properly inserted or damage may occur to upper fender.
2. Install the two push rivets
q
behind the front fascia.
3. Install the three push rivets
e
. Install the T-30 torx
fastener
w
and torque to specification.
TORQUE
Front Fender Fasteners:
22 in lbs (3 Nm)
4. Install the hood by inserting into slots and locking
down with 1/4 turn fasteners.
BODY / FRAME
