9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.49
INSTALLATION

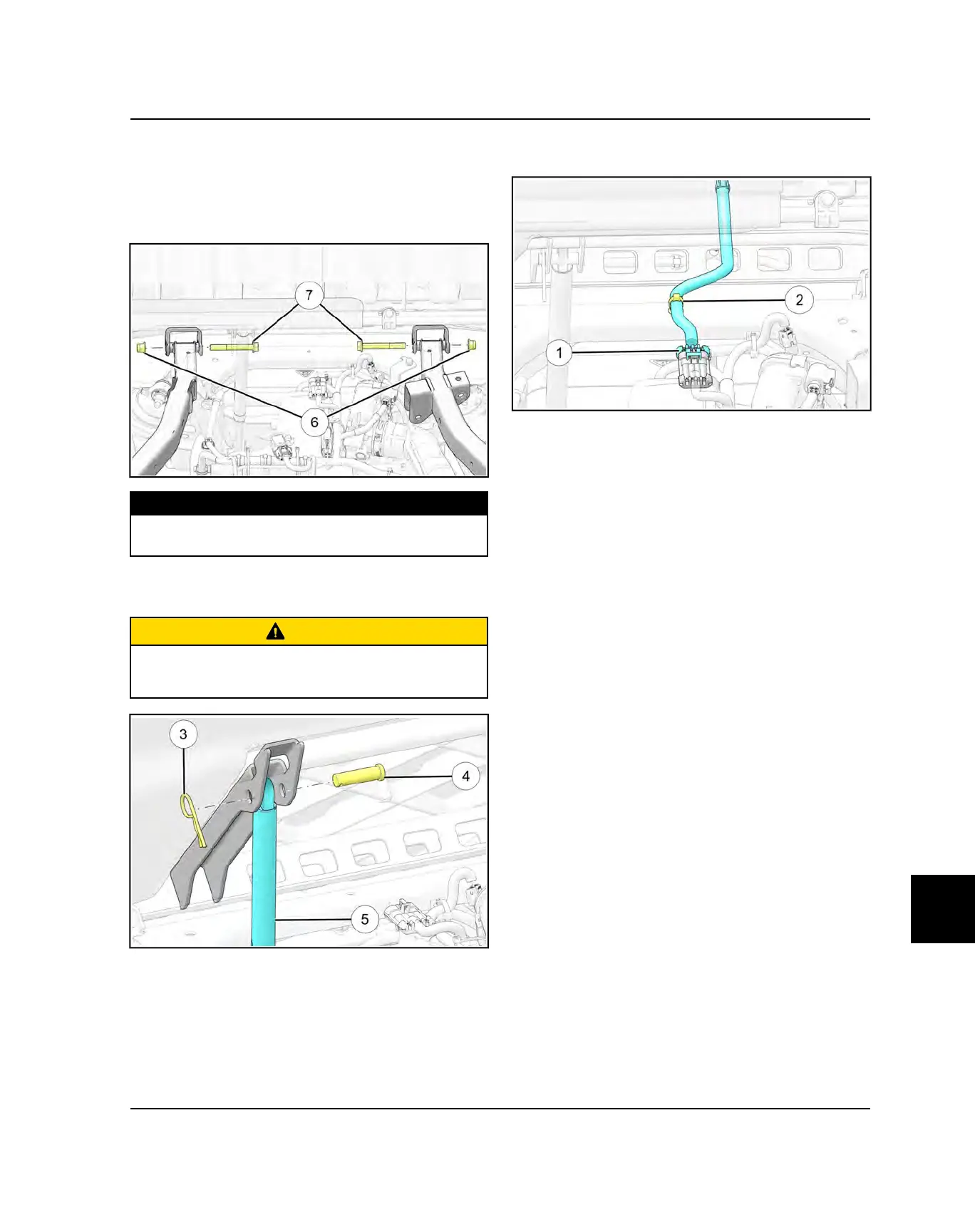

1. With the aid of an assistant or overhead hoist, Install
the cargo box on the chassis and align hinges.
2. Install fasteners
u
and nuts
y
into the cargo box
hinges and torque to specification.
TORQUE
Cargo Box Hinge Fasteners:
5 ft-lbs (7 Nm)
3. With the aid of an assistant, install the box shock
t
,
pin
r
and cotter pin
e
.
CAUTION
Ensure the cargo box is properly supported when
installing box shock. The box is unstable without the
box shock.
4. Connect the tail light harness connector
q
and install
the harness retainer
w
in the chassis.
5. Verify proper operation of tilt box and tail lights.
