12.12
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

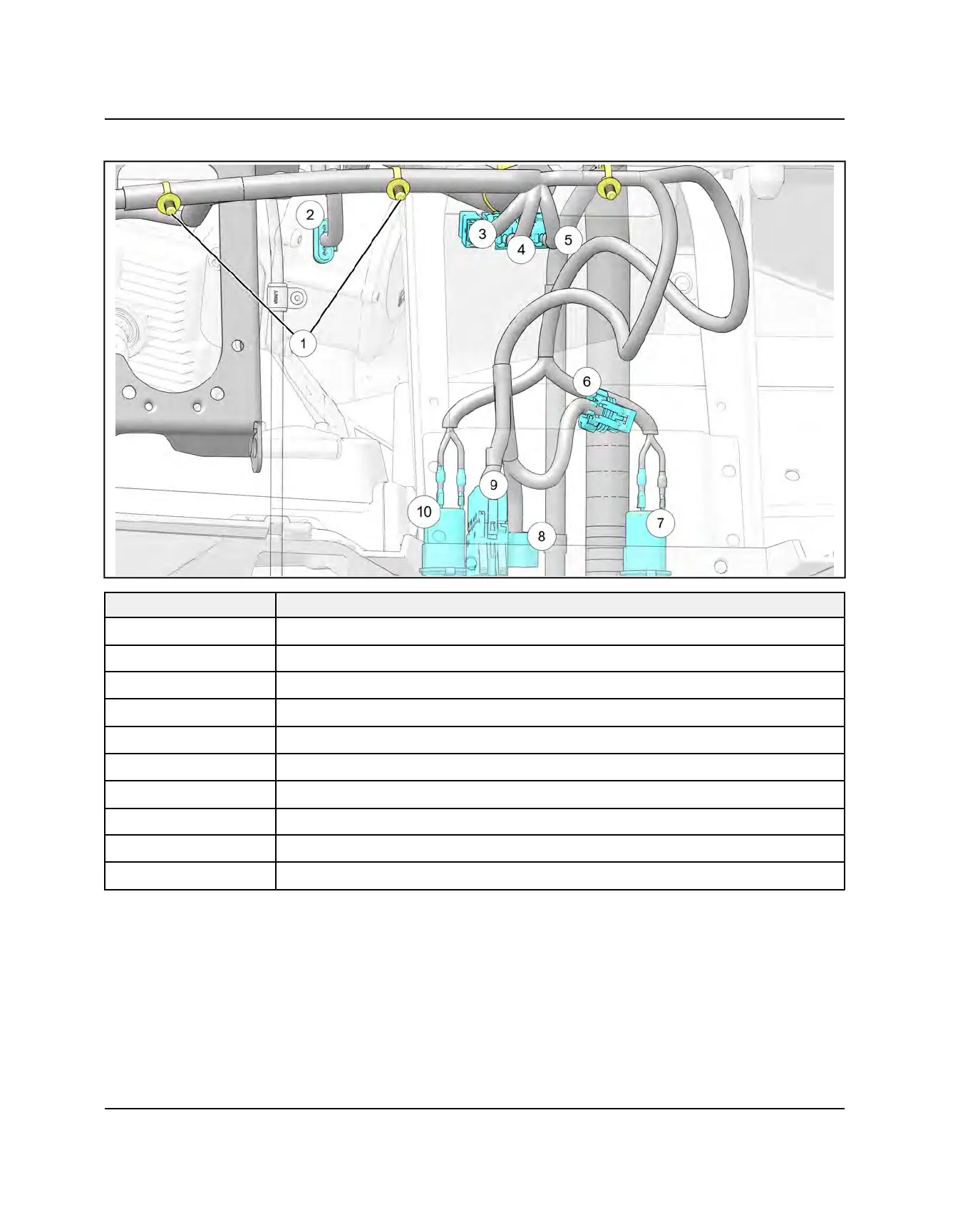

CENTER DASH ROUTING
REF DESCRIPTION
q
Tree Clip (Into Bulkhead)
w
Pedal Position Sensor Connector
e
Winch Connector
r
In-Line Rear Accessory Switch Connector
t
Box Lift Harness Connector
y
Temperature Control Connector
u
12V Receptacle Connections
i
Blower Motor Control
o
AWD Switch Connector
a
12V Receptacle Connections
CHASSIS / BODY ELECTRICAL
