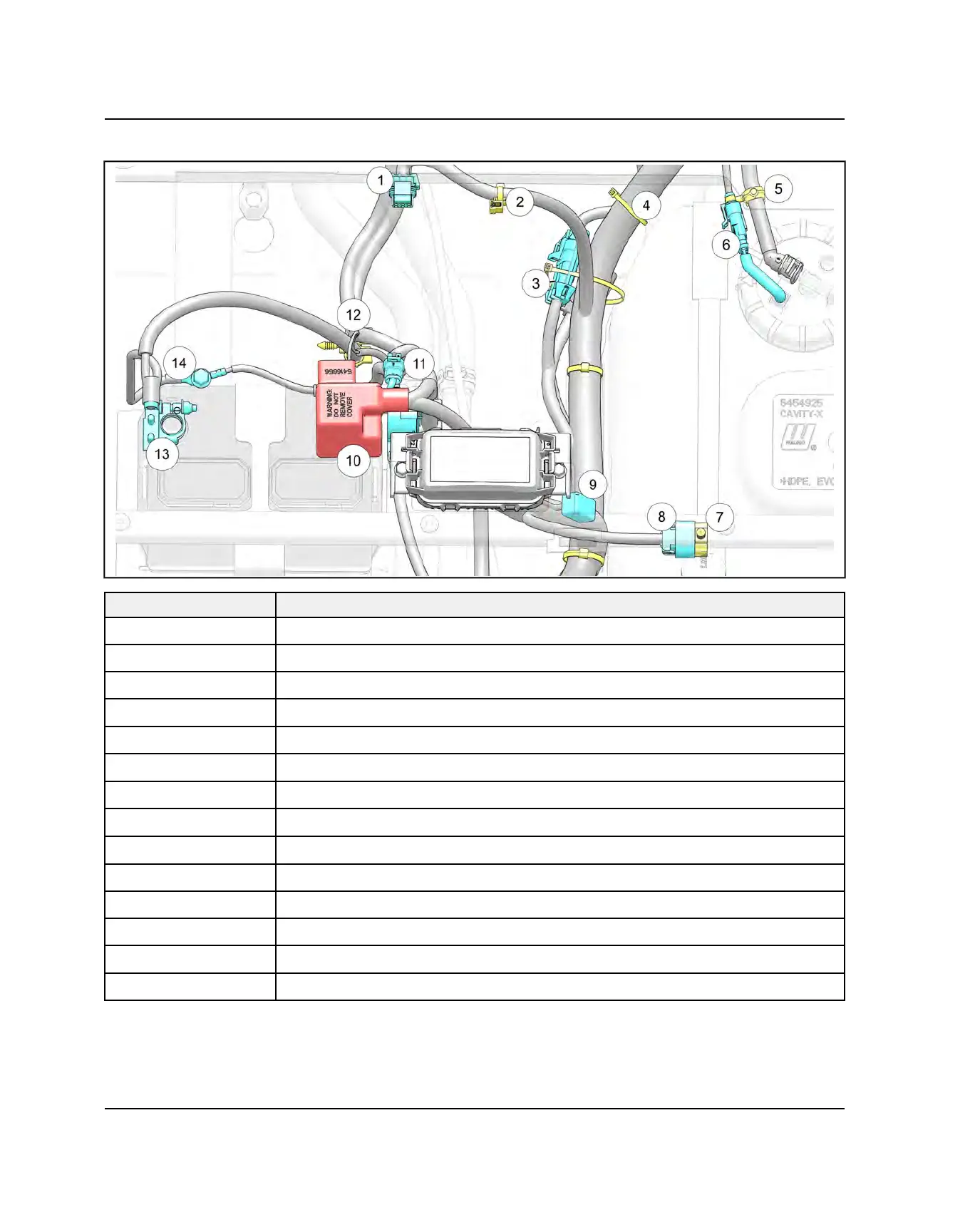

BELOW SEAT ROUTING
REF DESCRIPTION
q
Heater Valve Connector
w
Retention Clip
e
Stator Connector
r
Tree Clip Zip Tie (Into Fuel Tank Flange)
t
Cable Holder (Fuel Pump Connector to Fuel Line)
y
Fuel Pump Connector
u
Retention Cap Tree (Into Seat Frame)
i
Diagnostic Connector
o
Cooling Fan 20A Circuit Breaker
a
Positive Battery Cable Connection
s
Seat Belt Switch Connector
d
Retention Clip Tree
f
Negative Battery Cable Connection
g
Ground Connection
