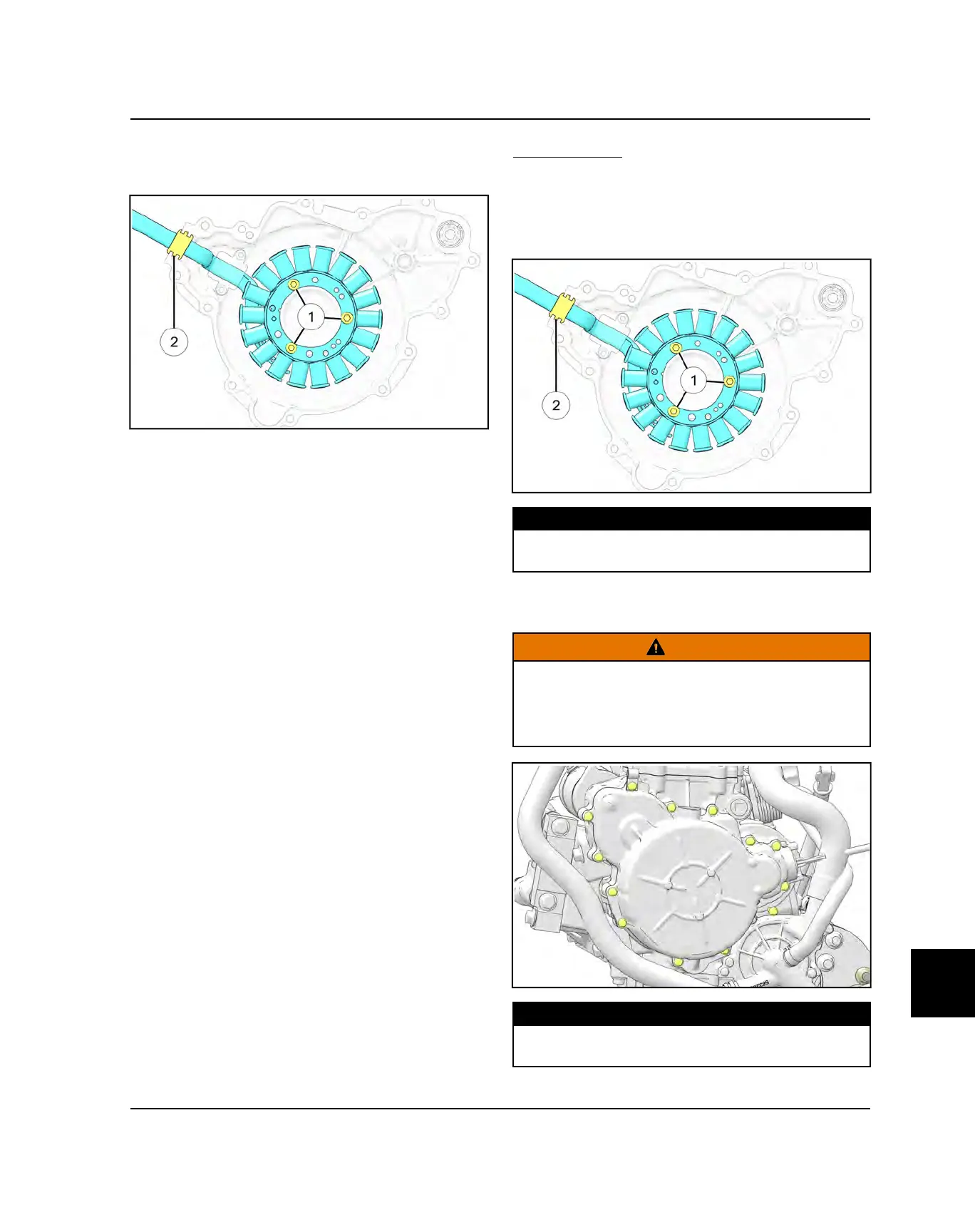

6. Remove the three fasteners
q
securing the stator
assembly to the cover and release the harness
grommet
w
. Remove the stator assembly.
7. Perform stator inspection before reusing. Refer to
Stator Inspection page 12.24.
INSTALLATION
1. Slide the stator assembly into the engine and align
with the mounting holes.
2. Attach the harness grommet
w
to the cover and
install the three stator fasteners
q
. Torque to
specification.
TORQUE
Stator Fasteners:
9 ft-lbs (12 Nm)
3. Install the stator cover and thirteen screws retaining
the stator cover. Torque to specification.
WARNING
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.
TORQUE
Stator Cover Fasteners:
9 ft-lbs (12 Nm)
