7.47
FINAL DRIVE
7

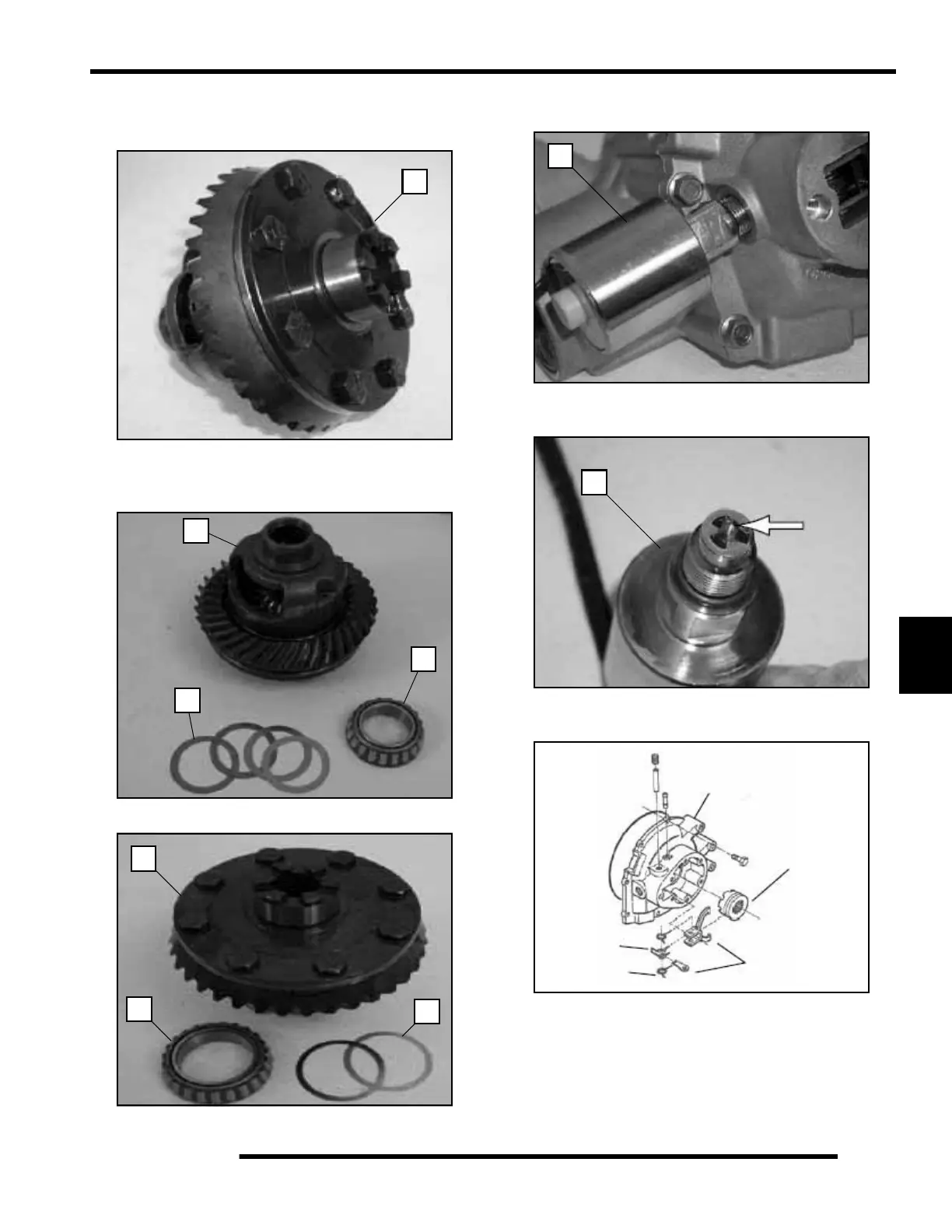

4. Remove the differential assembly (C) from the housing.
Inspect the bevel gear teeth for chipped, worn, or broken
teeth.
5. Remove the bearings from each side of the carrier assembly
(C). Inspect the bearings (D) for smoothness and wear. Be
sure to keep the shims (E) together for reassembly.
6. Remove the differential lock solenoid (F) from the carrier
housing by turning the solenoid counterclockwise.
7. Inspect the tip of the solenoid (F) for wear. If the tip of the
solenoid is flat the solenoid may need to be replaced.
8. Remove the clutch gear (G) from the carrier cover (B) and
shift yoke (H).
C
C
E
D
C
D
E
F
F
B
G
J
K
H
