To connect the phone using PoE:
1. Connect the 25-foot Network Cable to the LAN jack on the phone.
2. Connect the other end of the 25-foot Network Cable to an available
LAN port on the wall or hub/switch device port.
AC Power (One Phone)
If a PoE source is not available, connect the phone to an AC power source. To
connect the phone to an AC power source, make sure you have the optional
AC Power Kit (containing a Power Adapter, Regional Power Cord, and a
Power Insertion Cable).

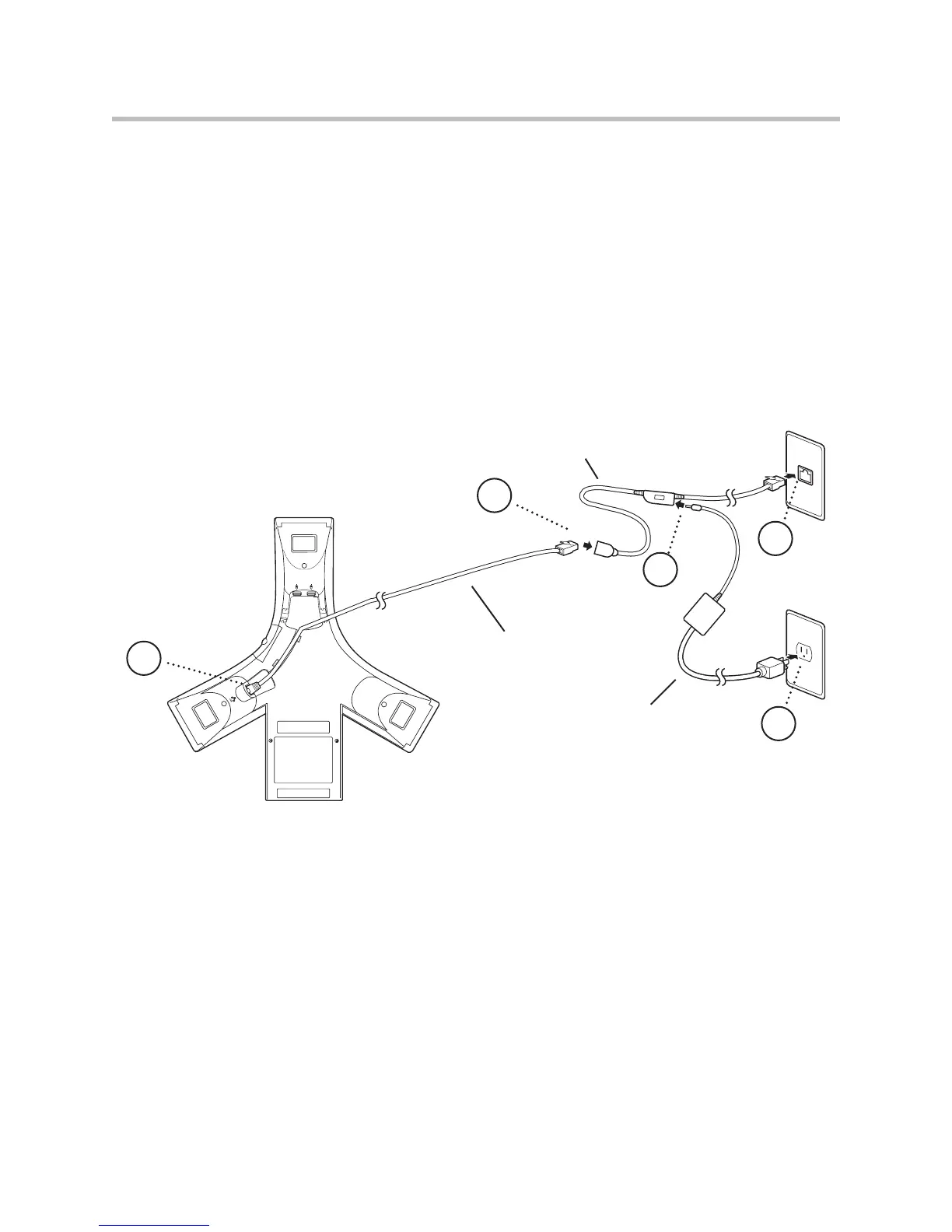

The following figure shows how to connect the phone to an AC power source.
To connect the phone to an AC power source:
1. Connect the 25-foot Network Cable to the LAN jack on the phone.
2. Connect the other end of the 25-foot Network Cable to the
Power Insertion Cable.
3. Connect the Power Insertion Cable to an available LAN port on the wall
or hub/switch device port.
4. Connect the Power Adapter to the Power Insertion Cable.
5. Connect the other end of the Power Adapter (with the attached
Regional Power Cord) to the wall outlet.
Power Adapter
Power Insertion Cable
25-foot Network Cable
1
2
3
4
5
