User Guide for the SoundStation IP 7000 Phone
1 - 6
AC Power (Two Phones, with Multi-Interface Module)
If you have a larger room configuration, you can connect up to two phones
together. In this case, the phones act as one phone and display the same
information. For more information on how to use your phone when two
phones are connected, see your system administrator.
Before you connect two phones together, make sure you have the optional
Multi-Interface Module Package (containing a Multi-Interface Module, 12-foot
Network Cable (10-pin), Power Adapter, and Regional Power Cord) and the
optional Console Interconnect Cable.

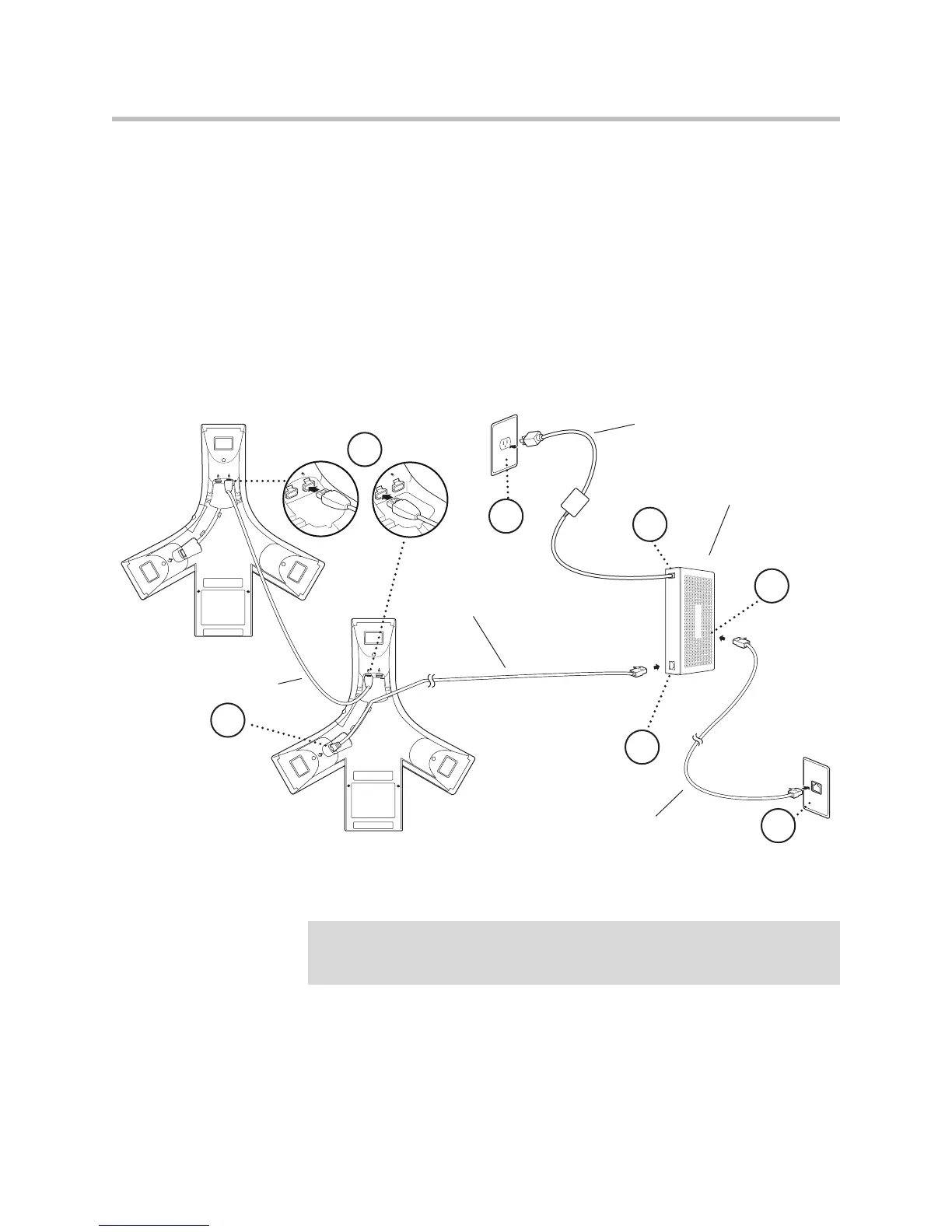

The following figure shows how to connect two phones to the network using
AC power.
To connect two phones to an AC power source:
1. Connect the 12-foot Network Cable (10-pin) to the LAN jack on the first
phone.
2. Connect the other end of the 12-foot Network Cable (10-pin) to the
Multi-Interface Module.
Multi-Interface
Module
Console
Interconnect Cable
12-foot
Network Cable (10-pin)
25-foot
Network Cable
Power Adapter
6
1
2
5
7
3
4
Warning
Make sure you connect the two phones and the Multi-Interface Module before you
connect the Power Adapter (with the attached Regional Power Cord) to the wall
outlet.
