Polycom IP 7000 User Manual

User Guide for the SoundStation IP 7000 Phone
4 - 6

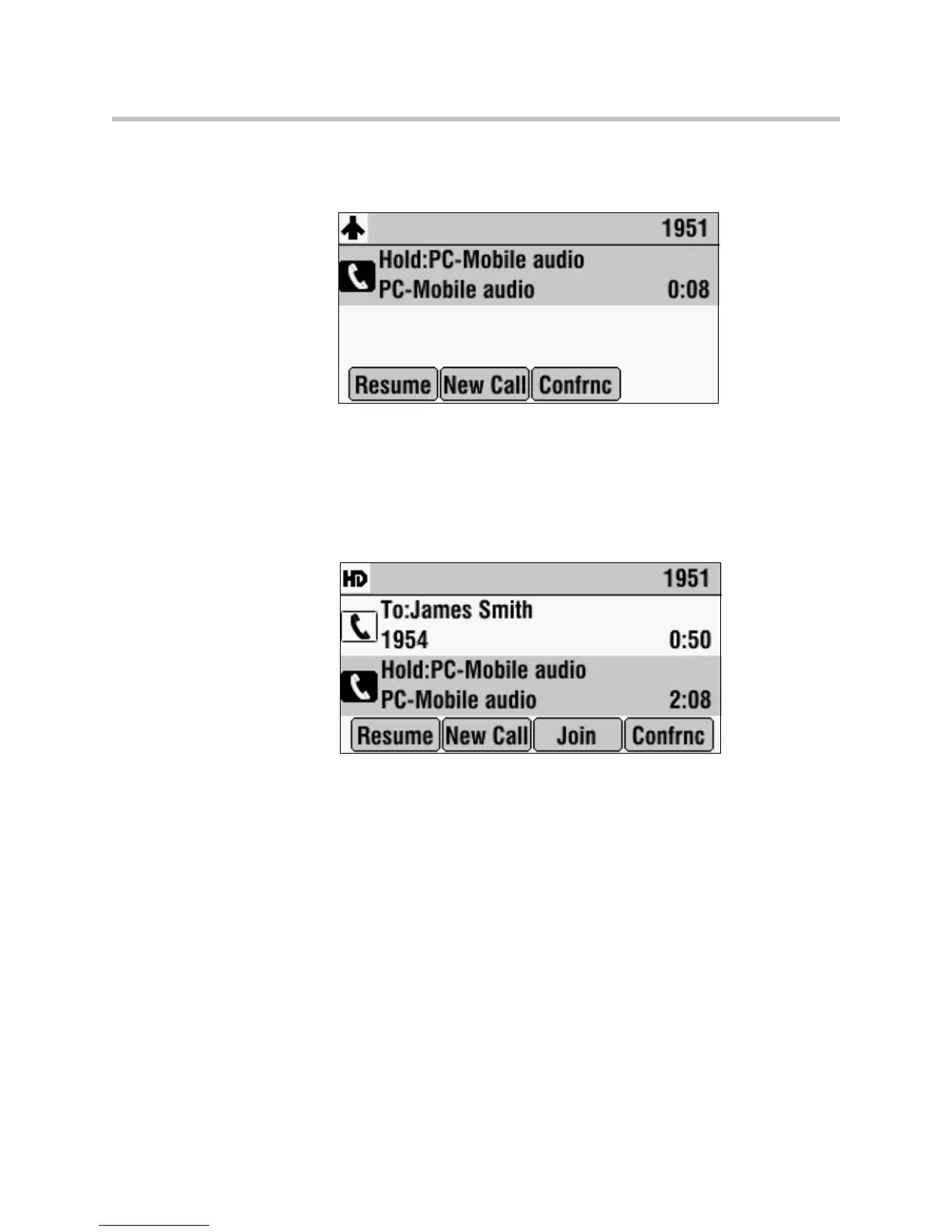

The following figure shows the Confrnc soft key that displays when the
computer or mobile audio is on hold.
• If you have a computer or mobile audio source and another call (one
active, one on hold), use the Join soft key. You access the Join soft key from
the call on hold.
The following figure shows the Join soft key that displays when there is a
computer or mobile audio source and another call (one active, one on
hold).
www.InternetVoipPhone.co.uk | sales@internetvoipphone.co.uk | 0800 088 4846

Polycom IP 7000 Specifications

General

Display Type	Graphical LCD
Display Resolution	320 x 240 pixels
Audio Features	HD Voice, Acoustic Clarity Technology
Network Protocols	SIP, H.323
Expansion Microphone Support	Yes
Speakerphone	Full-duplex
Bluetooth	No
Wi-Fi	No
Power over Ethernet (PoE)	Yes
Audio Codecs	G.711, G.722, iLBC
USB Ports	1
Ethernet Ports	2 (10/100/1000 Mbps)
